- • Remote control of NVRs, network video transmitters, network video receivers and network cameras via the network connection
- • Two-way audio communication
- • Convenient firmware upgrades via either the USB port or Ethernet
- • Firmware duplication and auto-recovery functions to enhance system stability
- • Management of multiple network keyboards via the network connection
- • Programmable by using the LCD screen
| Communication | |
|---|---|
| Interface | 2 x RS485(Terminal Block), 10/100/1000 Ethernet(RJ45, PoE IEEE802.3AF) |
| Baud Rate | 300 bps ~ 115,200bps |
| Supports protocols | Over 70 sorts of PTZ protocol(IDIS, PANASONIC, PELCO, SAMSUNG, etc.) |
| Supports Devices | IP Camera, NVR, IDIS solution Suite |
| Display | LCD(2 Line) |
| USB | 1 x USB2.0, 1 x USB3.0 |
| Audio in/out | 1(3.5mm) / 1(3.5mm) |
| Configuration | Joystick + Main Control Board |
| S/W Upgrade | USB, Network |
| SETUP Program | IDIS Discovery |
| General | |
| Dimension(W x H x D) | 376.9mm x 95mm x 177.6mm (15.0" x 3.7" x 7.0") |
| Unit Weight(Kg) | 1.1kg (2.43lb) |
| Operating Temperature | 0°C ~ 40°C (32℉ ~ 104℉) |
| Power Input | DC 48V, 1A, PoE(IEEE 802.3af class 0) |
| Approvals | FCC, CE, KC |

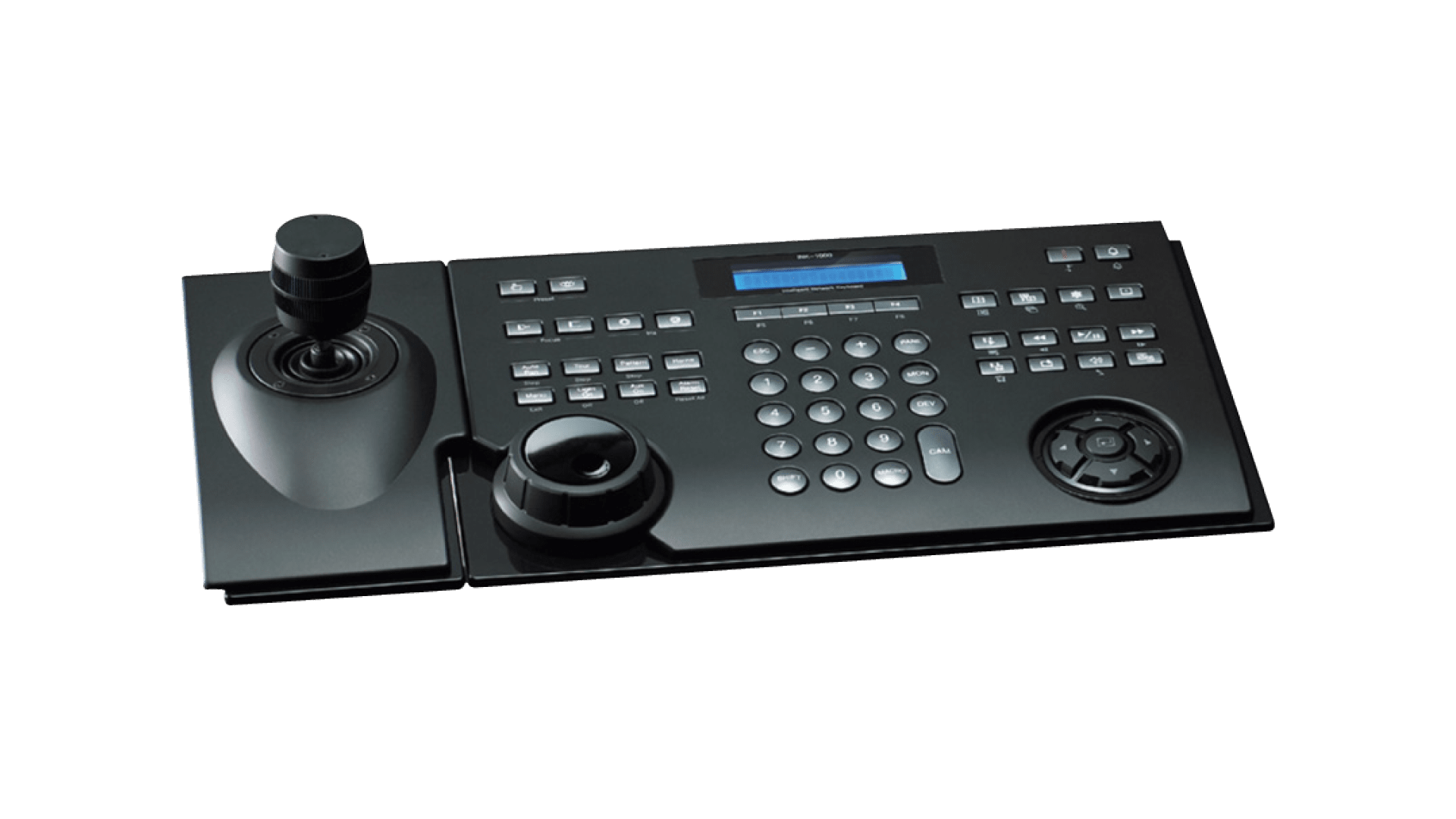

The NK-1200 is a professional network control keyboard designed for centralized operation of video surveillance systems. It provides comprehensive control over IP cameras, NVRs, and the IDIS Solution Suite from a single interface. It offers versatile connectivity via a Gigabit Ethernet port with PoE support and includes two RS-485 serial ports for direct connection to PTZ dome cameras or other serial devices. A key feature is its support for over 70 different PTZ protocols from major manufacturers like IDIS, Panasonic, Pelco, and Samsung, ensuring broad compatibility. It includes a small LCD for status display, USB ports, and audio I/O. The keyboard operates within a temperature range of 0°C to 40°C (32°F to 104°F) and can be powered by either 48V DC or Power over Ethernet IEEE 802.3af.
