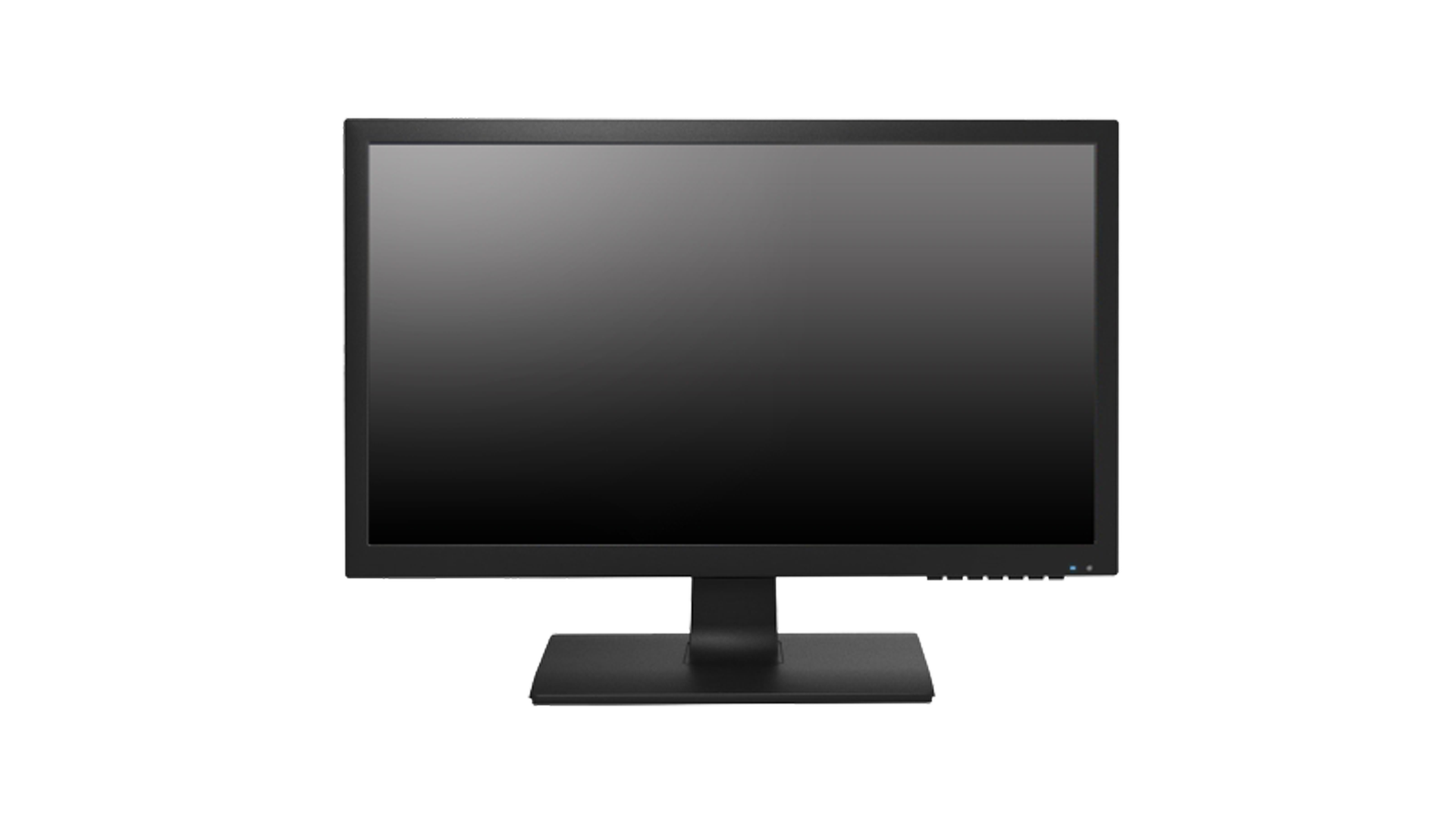

SM-F212 - 21.5’’ Full HD Standard Monitor - IDIS
Part number:
Price:
- • 22Inch Full HD LED Panel(TN Type)
- • Non-Glare Type LED Glass
- • Response Time(5ms)
- • Long Reliability Life Time(50K Hours & 24/7/365)
- • Supports multiple Interface ports
- • Low Power consumption(<0.5W; saving mode)
- • Prevent Burn-In feature
- • VESA Mount(100x100)
| Panel | |
|---|---|
| Type | LED |
| Screen Size | 21.5 Inch |
| Active Display Area | 476.64mm(H) x 268.11mm(V) |
| Max. Resolution | 1920 x 1080 @ 60Hz |
| Panel Technology | TN Type |
| Pixel Pitch | 0.24825mm(H) x 0.24825mm(V) |
| Brightness | 220cd/m² |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle(H/V) | 170°/160° |
| Display Color | 16.7 Millions |
| H-Scanning Frequency | 30~80Khz |
| V-Scanning Frequency | 50~75Khz |
| Response Time (G2G) | <5ms |
| Panel Life Time | 50,000 Hours |
| Interface | |
| Hybrid(AHD,TVI,CVI,CVBS) In/Out | - |
| HDMI In | 1 |
| Display Port | - |
| VGA Input | 1 |
| DVI Input | - |
| Audio In/Out | 1/- |
| BNC Video In/Out | 1/1 |
| S-Video In/Out | - |
| Component Y/pb/Pr In | - |
| S/PIDF Output | - |
| RS232 In/Out | - |
| USB | - |
| General | |
| Outline Dimension(WxHxD) | 507.0mm x 370.2mm x 149.1mm (19.96" x 14.56" x 5.87") |
| Bezel width (Spec. for VideoWall) | - |
| Net Weight/Gross Weight | 3.8Kg (8.38lb) / 4.8Kg (10.58lb) |
| Material/Color | Plastic / Black |
| Warranty-Parts/Labor | 3 Year / 3 Year |
| MTBF | 50,000 Hours (Panel) |
| Power Supply | DC 12V, 3A (AC100~240V[50/60Hz]) |
| Power Consumption - Typical | 25.2W |
| Power Consumption - Stand by | <0.5W |
| Power Savings(DPMS) | Yes |
| Operating Temperature | 0°~40°C (32°F~104°F) |
| Storage Temperature | -20°~60°C (-4°F~140°F) |
| Built-In Speaker | Yes (3Wx2) |
| Remote Control | Yes |
| VESA Mount Size | 100mm x 100mm / M4 x 6 Screws |
| External Controls | |
| IR Sensor(For Remote Control) | Built-In |
| Serial In/Out | - |
| USB | - |
Name
Description
Size
Downloads
File
SM-F212_Datasheet.pdf
0.4mb
This is a 21.5-inch Full HD LED monitor with a TN panel. Its native resolution is 1920 x 1080 at 60Hz, with a brightness of 220 cd/m² and a contrast ratio of 1000:1. The monitor accepts video input via one HDMI port, one VGA port, and one BNC video input with a looping output. It has a built-in audio input and two integrated 3-watt speakers. The monitor supports power-saving DPMS and has a built-in IR sensor for the included remote control. It is housed in a plastic casing with VESA 100x100mm mounting. The operating temperature range is 0°C to 40°C (32°F to 104°F). It is powered by a 12V DC, 3A adapter (compatible with AC 100-240V), with typical power consumption of 25.2 watts.
