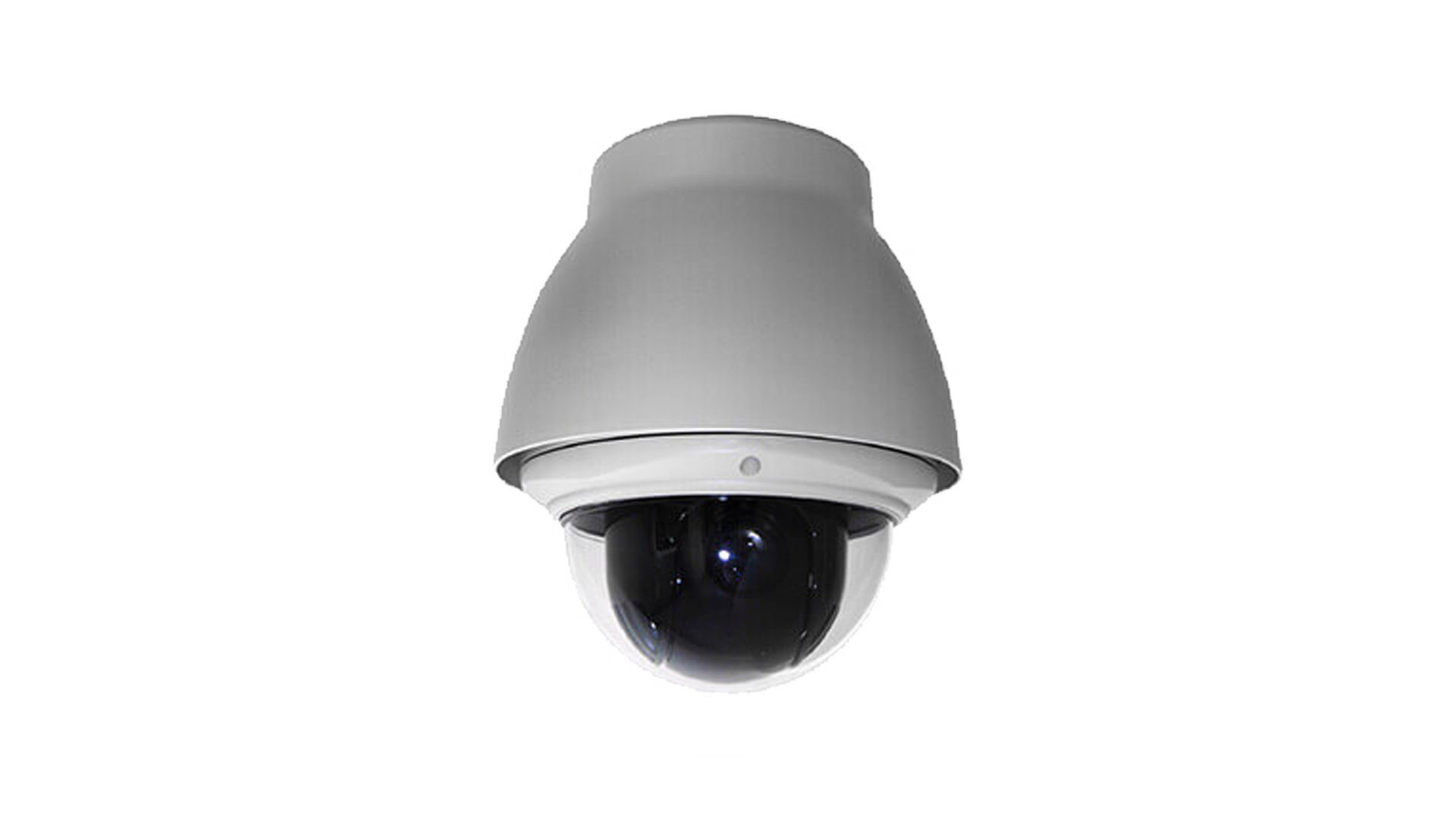

TC-S1283WHX - HD TVI Full HD 30X PTZ Camera - IDIS
Part number:
Price:
- • Full HD (1080p) resolution
- • AF optical zoom Lens (f=4.3mm ~ 129mm), 30X zoom
- • Day&Night (ICR)
- • True WDR
- • Motion Detection
- • De-fog
- • DIS (Digital Image Stabilizer)
- • IP66 supports
- • Coaxial OSD Control
| Video | |
|---|---|
| Image Sensor | 1/2.8” Sony STARVIS CMOS Sensor |
| Effective Pixels | 1945(H) X 1097(V), 2.13MP |
| Total Pixels | 1945(H) X 1109(V), 2.16MP |
| Max. Resolution | 1920 X 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | 30x Optical Zoom lens |
| Focal Length | f = 4.3mm ~ 129mm |
| Iris Control | DC Auto Iris |
| Angular Field of View | 65.1°~2.23°(H) |
| Min. Illumination | COLOR : 0.35 Lux / BW : 0.013Lux @ 50IRE |
| S/N Ratio | More than 50dB |
| Electronic Shutter Speed | 25/30fps : Auto(1/30,000~x8 sec.), Manual 50/60 : Auto(1/50,000~x8 sec.), Manual |
| Day and Night | Yes(ICR) |
| IR Distance (LEDs) | - |
| Video Out | 1 HD BNC, 1 SD BNC |
| Function | |
| AGC | 0 ~ 7 Level Adjustable |
| Brightness | 0 ~ 20 Level Adjustable |
| Sens-up | Off / x2 ~ x8 |
| WDR | Off / On (Low, Middle, High) |
| BLC | Off / On |
| HSBLC | HLC ON/OFF level 0~20, COLOR : BLACK, WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE |
| ACE (D-WDR / ATR-EX) | Off / Low / Middle / High |
| Motion Detection | - |
| Privacy Masking | Off / On (16 Zone) |
| Day and Night | Auto (AGC) / Color / B/W |
| Smart IR (IR Optimizer) | - |
| White Balance | Auto, Manual, Icandecent, Fluorescent, Outdoor |
| Digital Noise Reduction | 2D + 3DNR (Off / Low / Middle / High) |
| Mirror | Off / On |
| D-ZOOM (EZOOM) | x1 ~ x8 |
| Sharpness | 0 ~ 10 Level Adjustable |
| De-fog | Off / On |
| GAMMA Correction | 0 ~ 4 |
| Lens Shading (LSC) | - |
| Environmental | |
| Outdoor Ready | IP66 |
| Storage Temperature | -20°C ~ +60°C (-4°F ~ +140°F) (Humidity : 0% ~ 95%) |
| Operating Temperature | -50°C ~ +55°C (-58°F ~ +131°F) (Humidity : 0% ~ 90%) |
| Electrical | |
| Power Source | 12VDC/24VAC (Heater & Fan 24VAD) |
| Power Consumption | 12.0W (Heater & Fan 50.0W) |
| Mechanical | |
| Dimensions (W x H x D) | Ø234 x 301mm (Ø234 x 11.8’’) |
Name
Description
Size
Downloads
File
TC-S1283WHX_Datasheet.pdf
1.6mb
File
TC-S1283WHX_AnE_Spec_v1.1.docx
0.1mb
This is a 2-megapixel Full HD (1080p) analog HD PTZ camera that outputs its video in Analog HD TVI format. It features a high-sensitivity 1/2.8-inch Sony STARVIS CMOS sensor and an exceptionally powerful 30x optical zoom lens 4.3-129mm, allowing it to cover wide areas and zoom in for extreme detail on very distant subjects. It is equipped with Wide Dynamic Range, Digital Defog, and 2D+3D Digital Noise Reduction. It includes a built-in heater and fan for operation in extreme climates, with a temperature range of -50°C to 55°C and IP66 weatherproofing. It can be powered by 12V DC or 24V AC, with a base power consumption of 12 watts, rising to 50 watts when the heater and fan are active.
