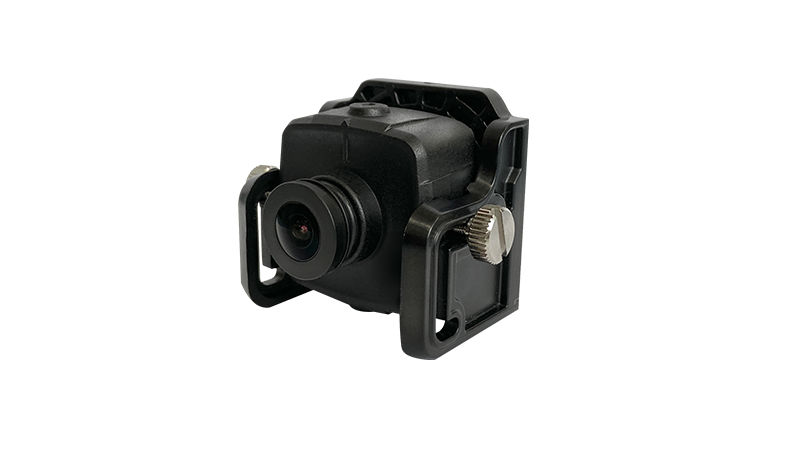

TC-V5211X - DirectCX 2MP Covert Camera - IDIS
- • Maximum Full-HD Resolution
- • Fixed Focus Lens (f=2.4mm)
- • Supports Various Analog Outputs
- • Advanced Backlight Compensation
- • Smart Noise Reduction
- • Privacy Masking
- • Motion Detection
- • Up to 16x Digital Zoom
- • UTC Control
| Video | |
| Image Sensor | 1/2.8" CMOS Sensor |
| Max. Resolution | 1920 X 1080 |
| Scanning Mode | Progressive Scan |
| Frame Rate | TVI, AHD : 30ips@2MP CVBS : NTSC / PAL (for previewing video) |
| Lens Type | Fixed-focal |
| Focal Length | 2.4mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 132.1º(H) 73.2º(V) 150.8º(D) |
| Min. Illumination | COLOR : 0.1 lux B/W : 0.08 lux |
| S/N Ratio | More than 50dB |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night | Yes (Electrical) |
| IR Distance (LEDs) | N/A |
| Video Out | 1 HD BNC (Signal Switchable) |
| Function | |
| AGC | 0 ~ 10 Level Adjustable |
| Brightness | 0 ~ 20 Level Adjustable |
| Sens-UP | OFF / x2 ~ x32 |
| WDR(Wide Dynamic Range) | OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available |
| Backlight Compensation(BLC) | OFF/ON |
| HLC | 1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY) |
| ACE(D-WDR/ATR-EX) | OFF / LOW / MIDDLE / HIGH |
| Motion Detection | OFF/ON (4 Zone) |
| Privacy Masking | OFF/ON (24 Zone) |
| Day & Night | Color/B&W/EXTERN |
| White Balance | AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K) |
| Digital Noise Reduction | OFF / LOW / MIDDLE / HIGH |
| Mirror | MIRROR, FLIP |
| D-ZOOM(EZOOM) | x1 ~ x16 |
| Sharpness | 0~20 Level Adjustable |
| De-fog | OFF/ON |
| Lens Shading(LSC) | OFF / ON(0 ~ 100% Level Adjustable) |
| Environmental | |
| Operating Temperature | -10℃ ~ +50℃ (14℉ ~ +122℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | DC 12V |
| Power Consumption | 1.6W |
| Dimensions | |
| Dimensions | Camera Body Dimensions: 1.46" (W) x 1.46" (H) x 1.2" (D) With Bracket Attached: 2.28" (W) x 1.78" (H) x 2.33" (D) |
| Weight | 0.055kg (0.12lb) |
This is a Full HD (1920x1080) ultra-wide-angle analog HD bullet camera designed for discreet indoor surveillance. It uses a 1/2.8-inch CMOS sensor and a fixed 2.4mm F2.0 lens to deliver a 132.1-degree horizontal field of view, providing extensive coverage from a compact enclosure. It supports multiple analog HD formats, including TVI and AHD, at 30 frames per second.
The feature is its extensive On-Screen Display menu for manual tuning, offering control over 120dB True Wide Dynamic Range, Digital Noise Reduction, High Light Compensation, defog, and privacy masking (24 zones). The camera uses an electrical day/night function for low-light switching (requiring 0.08 lux for black-and-white imaging) and does not have built-in IR LEDs. It operates from -10°C to +50°C, is powered by 12VDC consuming only 1.6 watts, and outputs video via a single HD BNC connector.
