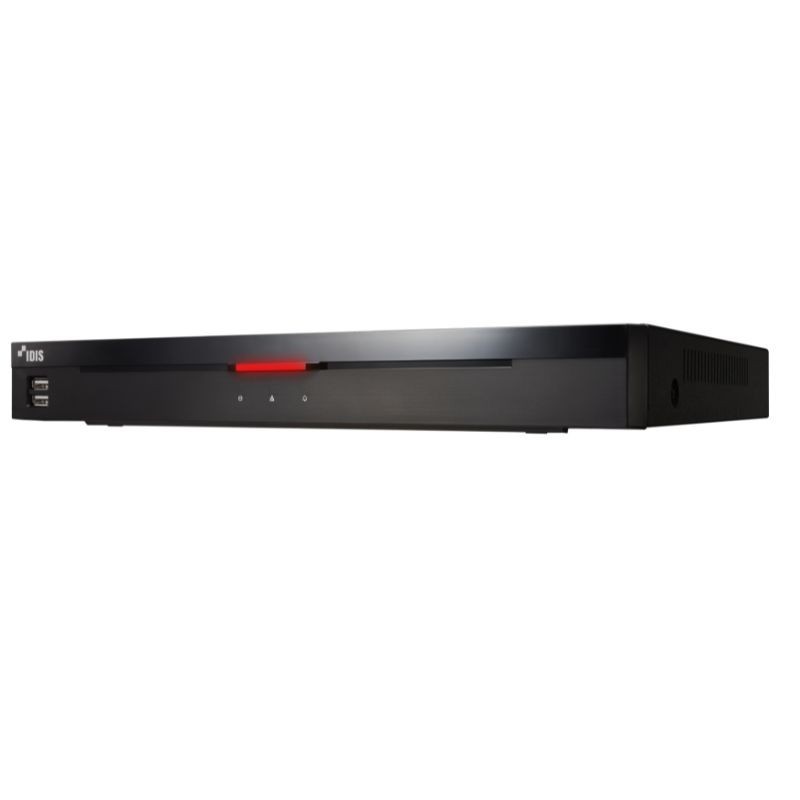

TR-2516-4TB - DirectCX 16channel H.265 Recorder - IDIS
- • Supports Multi Standard Analog Camera
- • Up to 240ips Full HD recording
- • H.265 encoding , Intelligent Codec Support
- • Up to 5MP resolution support
- • UHD Display with HDMI output
- • Full HD Display with HDMI and VGA output
- • Long transmission distance over coax cable
- • Supports OSD control over Coax
- • Expandable up to 12TB using 2 SATA interfaces
- • Supports one click network configuration through FEN service
| VIDEO | |
|---|---|
| Video Inputs | 16 BNC (Multistandard Analog) |
| Supported Camera Types | 5MP20, 5MP12, 4MP30, 4MP15, 3MP30, 3MP18, 1080P30, 1080P25, 720P30, 720P25, CVBS(NTSC/PAL) |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1080, 1280 x 1024 VGA : 1920 x 1080, 1280 x 1024 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x7 |
| RECORDING | |
| Recording Resolution | 5MP, 5MPHALF(1280x1920), 4MP, 4MPHALF(1280x1440), 3MP, 1920x1080, 1280x720, 960x576, 960x480, 720x576, 720x480, 960x288, 960x240, 640x360, 720x288, 720x240, 480x288, 480x240, 360x288, 360x240 |
| Frame Rate | 240ips@1080P, 160ips@3MP, 240ips@4MPHALF, 112ips@4MP, 160ips@5MPHALF, 112ips@5MP |
| Compression | H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Events | Alarm in, Motion detection, Video loss, Text-in |
| PLAYBACK | |
| Performance | 8ch 1080p synchronous playback |
| Search Mode | Time-lapse, Event log, Text-in |
| Digital Zoom | x2 ~ x7 |
| STORAGE | |
| HDD | SATA x2 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here. |
| Data Export Device | USB HDD, USB Stick |
| NETWORK | |
| Client Connection | Gigabit Ethernet x1 |
| Transmission Speed | 15ips@Full HD per channel, same as recording stream |
| Remote Data Export | IDIS Player, AVI, JPG, BMP |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Client Viewer | IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite |
| INTERFACE | |
| Audio In/ Out | 4 RCA / 1 RCA 1 HDMI |
| Alarm In / Out | 4 In / 1 Relay Out |
| Alarm Reset In | - |
| Serial Interface | RS232 / RS485(Terminal Block), USB 2.0 x 2(Front x 2) |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| GENERAL | |
| Operating System | Embedded Linux |
| UNIT Dimensions (W x H x D) | 340mm x 46.5mm x 313.5mm (13.4” x 1.8” x 12.3”) |
| UNIT Dimensions (W x H x D) - BRAND(KORE) | 340mm x 46.5mm x 315.5mm (13.4" x 1.8" x 12.4") |
| Unit Weight | 3.1kg (6.83lb) (with 4TB 2HDDs) |
| Working Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Power Input | Adaptor Input : 100-240V~, 50/60Hz, 1.5A, Output : 12V=, 5A |
| Power Consumption | 12V=, 1.72A, 20.64W |
| Approvals | FCC, CE, KC |
| Sequence | Yes |
| Multiscreen on Spot Monitor | No |
| Color Control | brightness, constrast, saturation, hue |
| Record | Scheduling Method Simple Mode - schedule-list type (add/remove), schedule a week by hour, holiday setting Advanced Mode - each event/time shedule-list type (add/remove), schedule a week by hour, holiday setting |
| Recording Setup Programmable for each Ca | Yes |
| ARCHIVE & DATA EXPORT | |
| Archiving | No |
| NETWORK | |
| Web Browser Access | Internal, External |
| Remote PTZ Control | Yes |
| Remote PTZ Setup | Yes |
| Remote PTZ Advanced Setup | Yes |
| Remote Data Export | Clip Player, AVI, JPG, BMP, PNG, TIF, PDF |
The TR-2516-4TB is a 16-channel hybrid digital video recorder designed for analog camera systems. It accepts video input via sixteen BNC connections, supporting multistandard analog cameras up to 5MP resolution. Recording and display use H.265, H.264, and Intelligent Codec compression, with a maximum recording frame rate of 240ips at 1080p. Video outputs include one HDMI and one VGA port, with HDMI supporting a display resolution up to 3840x2160 (4K UHD).
The unit offers event recording triggered by alarm inputs, motion detection, and video loss. Storage is handled by two internal SATA HDD bays. Network connectivity is provided via a Gigabit Ethernet port, and the system includes two-way audio and remote client viewing support. It operates on an embedded Linux system within a temperature range of 0°C to 40°C and up to 90% humidity, powered by a 12V DC adapter with a consumption of 20.64W.
