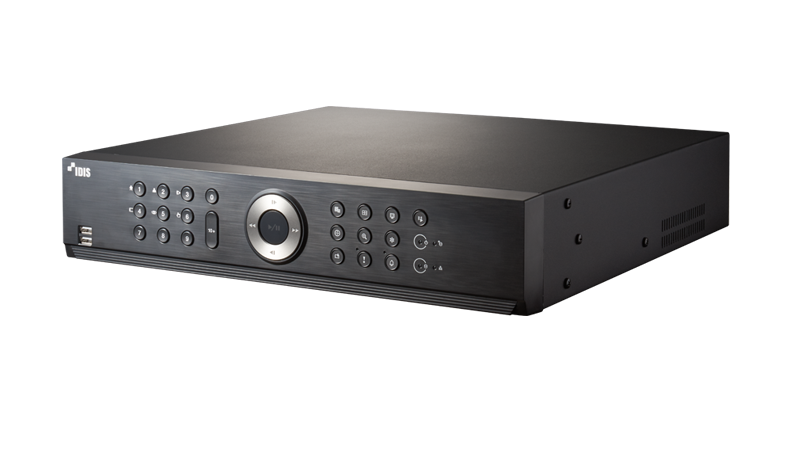

TR-4516-8TB - DirectCX 16channel H.265 Recorder - IDIS
- • Supports Multi Standard Analog Camera
- • Up to 480ips Full HD recording
- • H.265 encoding, Intelligent Codec Support
- • Up to 5MP resolution support
- • UHD Display with HDMI output
- • Full HD Display with HDMI and VGA output
- • Long transmission distance over coax cable
- • Supports OSD control over Coax
- • Expandable up to 40TB using 4 SATA interfaces and 1 eSATA storage interface
- • Supports one click network configuration through FEN service
- • Supports Dual Track Recording
| Video | |
|---|---|
| Video Inputs | 16 BNC |
| Supported Camera | HD-TVI : 5MP, 4MP, 3MP, 1080P, 720P AHD : 5MP, 4MP, 3MP, 1080P, 720P CVBS : NTSC / PAL |
| Video Outputs | 1 HDMI, 1 VGA, 1 BNC(Spot) |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1080, 1440 x 900, 1280 x 1024 VGA : 1920 x 1080, 1440 x 900, 1280 x 1024 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x7 |
| Recording | |
| Recording Resolution | 2560x1920, 2560x1440, 1920x1536, 1920x1080, 1280x720, 960x480, 720x480, 960x240, 720x240, 480x240, 360x240 |
| Video Compression | H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | Motion, Tampering, Video loss, Alarm in, Text-In, System |
| Playback | |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event log, Text-in |
| Digital Zoom | x2 ~ x7 |
| Storage | |
| HDD | SATA x 4, eSATA x 1 |
| Total Capacity | 96TB = 12TB x4(Internal) + 12TB x 4(External) |
| Network | |
| Client Connection | Gigabit Ethernet x1 |
| Transmission Speed | 30ips@Full HD per channel, same as recording stream |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 16 In / 4 Relay Out |
| Alarm Reset In | Yes |
| Serial Interface | RS232, RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Front Button, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32℉ ~ +104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 100-240V~, 50/60Hz, ≤ 2.0A |
| Power Consumption | 100-240V~, 50/60Hz, 1.0-0.5A, 80W |
| Approval | FCC, CE, KC, CB, UL, PSE |
| Mechanical | |
| Unit Dimensions (W x H x D) | 430mm x 88mm x 427mm (16.9" x 3.5" x 16.8") |
| Unit Weight | 6.2kg (13.7 lbs)(with 2 x 4TB HDD) |
The TR-4516-8TB is a 16-channel hybrid digital video recorder designed for analog camera systems. It accepts video input via sixteen BNC connections, supporting HD-TVI, AHD, and CVBS analog cameras up to 5MP resolution. Recording and display use H.265, H.264, and Intelligent Codec compression, with a maximum total display speed of 480ips. Video outputs include one HDMI, one VGA, and one BNC spot monitor, with HDMI supporting a display resolution up to 3840x2160 (4K UHD).
The unit offers event recording triggered by motion detection, tampering, alarm inputs, and video loss. Storage is handled by four internal SATA HDD bays and one eSATA port. Network connectivity is provided via a Gigabit Ethernet port, and the system includes two-way audio and remote client viewing support. It operates on an embedded Linux system within a temperature range of 0°C to 40°C and up to 90% humidity, powered by 100-240V AC with a consumption of 80W.
