Planet - POE-TESTER+ - IEEE802.3bt/at/af POE Tester (6 PoE modes detection)

Product Overview

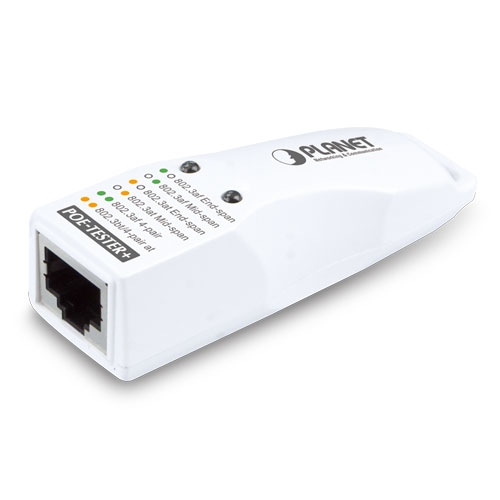

The Planet POE-TESTER+ is a compact, plug-and-play PoE diagnostic adapter that detects IEEE 802.3af/at/bt PoE voltage over UTP cables and identifies PSE type — End-span (Mode A), Mid-span (Mode B), or 4-pair mode — via bi-color LED indicators. It supports 6 PoE modes, including 802.3bt PoE++ (Type 4), 802.3at PoE+, 802.3af PoE, and non-standard force mode, making it a versatile troubleshooting tool for any PoE installation.

Key Configuration

• Interface: 1 × RJ45 TP connector (PoE input/PD).
• Input voltage: 37–57V DC (802.3af) / 42–57V DC (802.3at/bt).
• Detection modes: End-span, Mid-span, 4-pair (End-span + Mid-span).
• Standards: IEEE 802.3af, 802.3at, 802.3bt (Type 4).
• Dimensions: 23 × 70.1 × 22 mm; weight: 24 g.

Key Features

The POE-TESTER+ is a plug-and-play diagnostic dongle that identifies PSE type at the end of a UTP cable, detecting End-span (Mode A on data pairs 1/2/3/6), Mid-span (Mode B on spare pairs 4/5/7/8), or 4-pair mode (802.3bt/PoH). Bi-color LEDs provide instant interpretation: Left Amber = 802.3at End-span, Left Green = 802.3af End-span, Right Amber = 802.3at Mid-span, Right Green = 802.3af Mid-span, Both Amber = 802.3bt PoE++ or 4-pair 802.3at, Both Green = 802.3af or non-standard force mode over all pairs.

Technical Context

The tester detects 6 PoE modes, including non-standard force mode PoE, and confirms PoE presence before connecting powered devices to save troubleshooting time and prevent mismatched PSE/PD configuration failures. It operates with input voltages of 37–57V DC (802.3af) and 42–57V DC (802.3at/bt), and is CE compliant.

Installation Notes

The compact dongle measures 23 × 70.1 × 22 mm (0.91 × 2.76 × 0.87 in.), weighs 24g (0.05 lb), and plugs directly into any RJ45 outlet or PSE port. It operates from 0–50°C with 5–95% RH and stores from -10–60°C, with LED indicators illuminating automatically when PoE voltage is detected. No configuration is required.
