Planet - GTP-805A - IEEE802.3af/at PoE 10/100/1000Base-T to 100/1000X SFP Converter

Product Overview

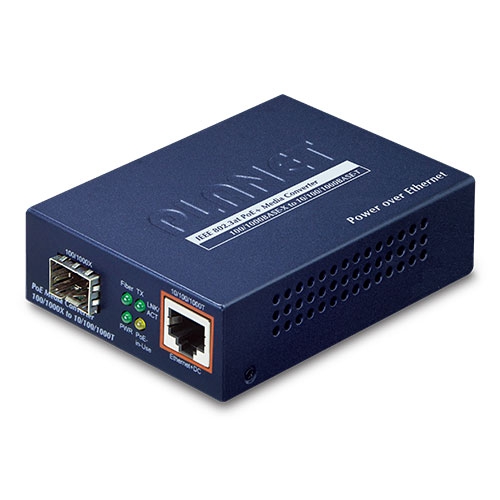

Planet GTP-805A is a 10/100/1000BASE-T to 100/1000BASE-X SFP PoE+ media converter delivering up to 30W (52V DC) Mid-span power (pins 4/5+,7/8-) over Cat5e/6 cabling. Features SFP slot for fibre connectivity (distance varies by SFP module), LFP (Link Fault Pass-through), 9K jumbo frame support, and compact metal housing.

Key Configuration

• Copper port: 1 × 10/100/1000BASE-T RJ45 with 802.3af/at PoE+ output (Mid-span, pins 4/5+,7/8-)
• Fibre port: 1 × 100/1000BASE-X SFP slot (SFP module required, sold separately)
• PoE output: 52V DC, 30W max (802.3at) / 15.4W (802.3af)
• Power: 52V DC, 0.58A external AC-to-DC adapter
• Dimensions: 70 × 94 × 26 mm; weight: 0.21kg

Key Features

The GTP-805A is a mid-span PoE+ injector that adds PoE power to non-PoE switches while simultaneously converting copper to fibre. It delivers up to 30W on spare pairs (pins 4/5+, 7/8-) to power 802.3at devices such as PTZ cameras and high-power WAPs, while the SFP slot supports both multi-mode (up to 550m) and single-mode (up to 120km) transceivers for long-distance fibre uplinks.

Technical Context

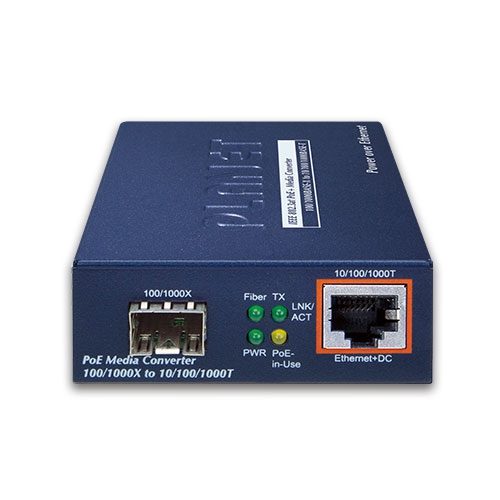

The converter includes a DIP switch to enable or disable Link Fault Passthrough (LFP), which propagates link failure status between copper and fibre ports — if one segment fails, the other is disabled to trigger failover in connected equipment. It supports store-and-forward switching with flow control, jumbo frames up to 9K bytes, and LED indicators for power, fibre link/activity, copper link/activity, and PoE-in-use status.

Installation Notes

The compact unit (70 × 94 × 26 mm, 0.21kg) operates from 0–50°C with 5–90% RH and is powered by a 52V DC external adapter (included). It connects over Cat5/5e/6 copper up to 100m, with fibre distance determined by the SFP module (sold separately). The injector is TAA-compliant and carries FCC Part 15 Class A and CE certifications.
