Planet - POE-E201 - IEEE802.3at POE+ Repeater (Extender) High Power POE
Product Overview

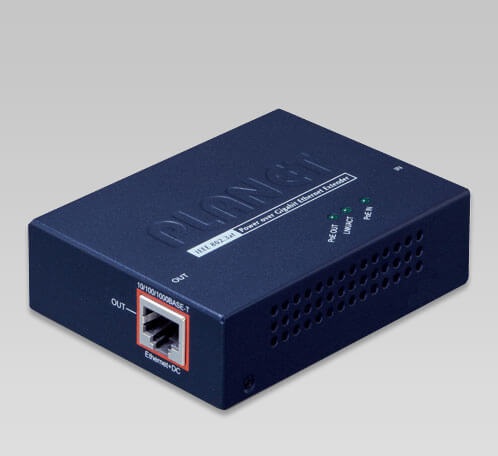

Planet POE-E201 is a Gigabit 802.3at/af PoE+ repeater extending both Ethernet data and PoE power up to 500m (daisy-chain 4 units). Features Mid-span power delivery (pins 4/5+,7/8-) with up to 26W output, store-and-forward switching, and plug-and-play operation in a compact metal case.
Key Configuration
• Interfaces: 1 × RJ45 PoE Input, 1 × RJ45 PoE Output
• PoE standard: IEEE 802.3at/af (Mid-span, Type B, pins 4/5+,7/8-)
• PoE output: 52V DC, 510mA, max 26W
• Data rate: 10/100/1000 Mbps
• Maximum distance: 200m (single unit), 500m (4 units daisy-chain)
• Dimensions: 94 × 70 × 26 mm; weight: 197g
Key Features
The POE-E201 is a plug-and-play PoE repeater that extends Ethernet and PoE transmission by an additional 100m per unit, supporting daisy-chaining of up to four repeaters for a total reach of 500m. Powered directly from an 802.3at PoE input (52–56V DC), it regenerates both data and power without requiring an external power supply and delivers up to 26W output to connected devices.
Technical Context
Housed in a wall-mountable metal enclosure, it features store-and-forward switching, LED status indicators, 2KV ESD and surge protection, support for frames up to 1552 bytes, and operates in temperatures from 0°C to 50°C. Compatible with End-span powered devices while using Mid-span power delivery, it is FCC, CE, and TAA compliant.
| Interfaces | |

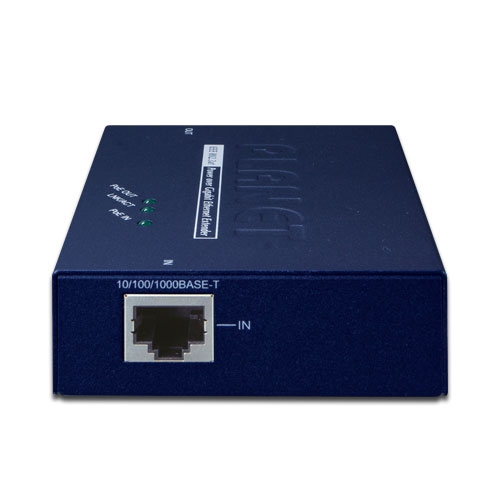

| LAN IN | 1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data + DC” in auto MDI/MDI-X, auto-negotiation RJ-45 connector |
| LAN OUT | 1 x 10/100/1000Base-T Ethernet with IEEE 802.3at / 802.3af PoE “Data +DC” out auto MDI/MDI-X, auto-negotiation RJ-45 connector |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af (Power over Ethernet) IEEE 802.3at (High Power over Ethernet) |
| PoE Power Supply Type | Mid-Span / Type B |
| PoE Power Output | 52V DC, 510mA, Max. 26 watts |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Maximum Distance | 4 units, daisy-chain installation with 500m support |
| Hardware Specifications | |
| Data Rate | 10/100/1000Mbps |
| Switch Architecture | Store-and-Forward |
| Switch Throughput | 10Mbps: 14,880 pps@64Bytes 100Mbps: 148,810 pps@64Bytes 1000Mbps: 1,488,000 pps@64Bytes |
| Maximum Frame Size | 1552Bytes |
| Flow Control | Back pressure for half-duplex IEEE 802.3x pause frame for full-duplex |

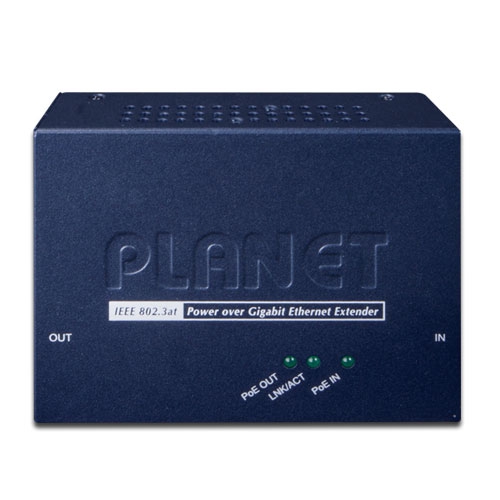

| LED Indicators | 1 x PoE IN (Green) 1 x LAN Data (Green) 1 x PoE OUT (Green) |
| Protection | ESD (Ethernet): 2KV (TBD) Surge (EFT for power) : 2KV (TBD) |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 197g |
| Power Requirements | IEEE 802.3at compliant with voltage within 52V-56V DC |
| Power Consumption | 3.2 watts (system maximum) |
| Mechanical | Metal / Wall mountable |
| Network Cable | 10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft) 100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) 1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m, 328ft) |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet IEEE 802.3x Flow Control |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 0 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
