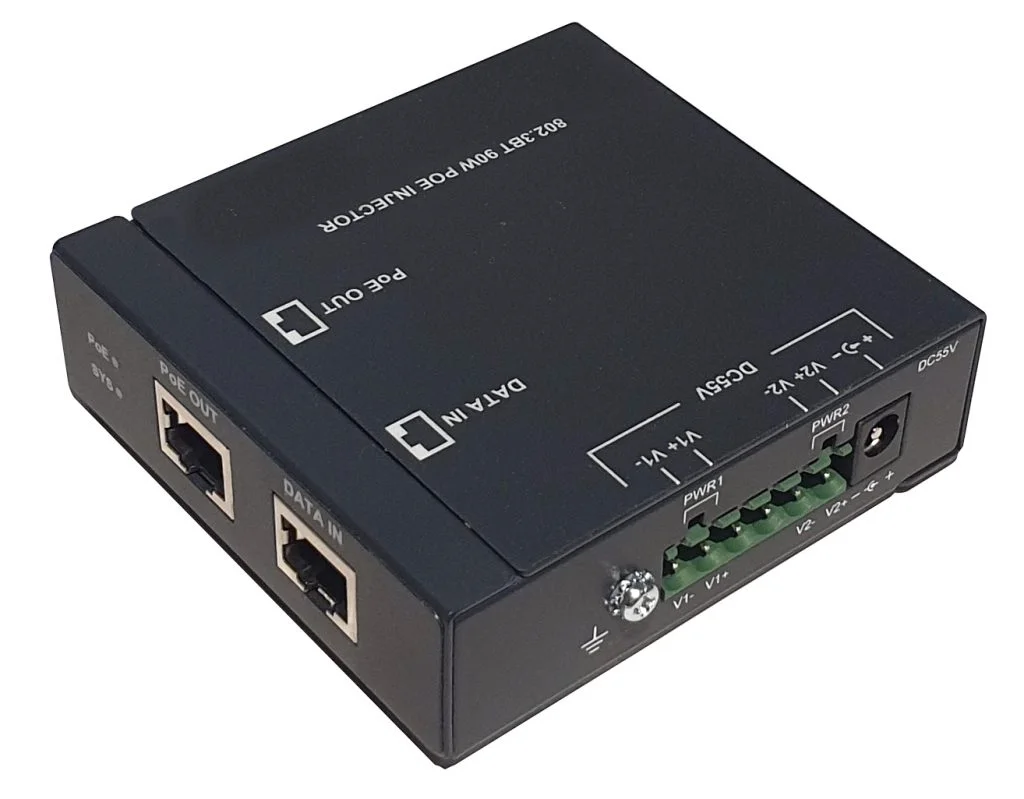

The IA-POE-90-U00 & IA-POE-90-U00-EU is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT5 cable. Based on the IEEE 802.3af/at/bt PoE standard, it provides the capability to serve up to 90W on a single port using four pairs of Cat. 5e/ Cat.6 Ethernet cabling. The IA-POE-90-U00 & IA-POE-90-U00-EU injector flexibly deploys standard and high powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distances of up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting options provide greater ease of installation.
Features:
- Supports 10/100/1000Base-T (X) for PoE out and Data in
- IEEE 802.3af/at/bt compliant
- Power input 55~57 VDC, injects power up to 90W
- Provides slim size and DIN-rail with IP40 metal mechanism
- Supports operating temperatures from -40 to 75°C (-40 to 167°F)
| Communications | IA-POE-90-U00 |
| Ethernet | 10 /100/1000Base-T (X ) |
| Protocol | IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt, 802.3ab |
| Transmission Distance | Ethernet: Up to 100 m |
| Transmission Speed | Up to 1000 Mbps |
| Interface | |
| Connectors | DATA IN: RJ45, PoE OUT: RJ45 |
| LED Indicators | PoE, SYS |
| Environmental | |
| Operating Temperature / Humidity | -40 to 75°C (-40 to 167°F) / 10 to 95% (non-condensing ) |
| Storage Temperature / Humidity | -40 to 85°C (-40 to 185°F) / 10 to 95% (non-condensing ) |
| Electrical | |
| Input Voltage | 55 ~57 VDC (Single input ) |
| Power Consumption | Max. 95W (Full load PoE) |
| Power Output | 90 W |
| Protection | Reverse Polarity |
| Mechanical | |
| Enclosure | IP40, Metal shell with solid mounting kits |
| Product dimensions | 84 x 80 x 25 mm (3.307” x 3.15” x 0.984” ) |
| Regulatory | |
| Safety | UL62368 |
| Emissions | EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 |
| Immunity | EN 55035 |
| Environment | CE, FCC |
