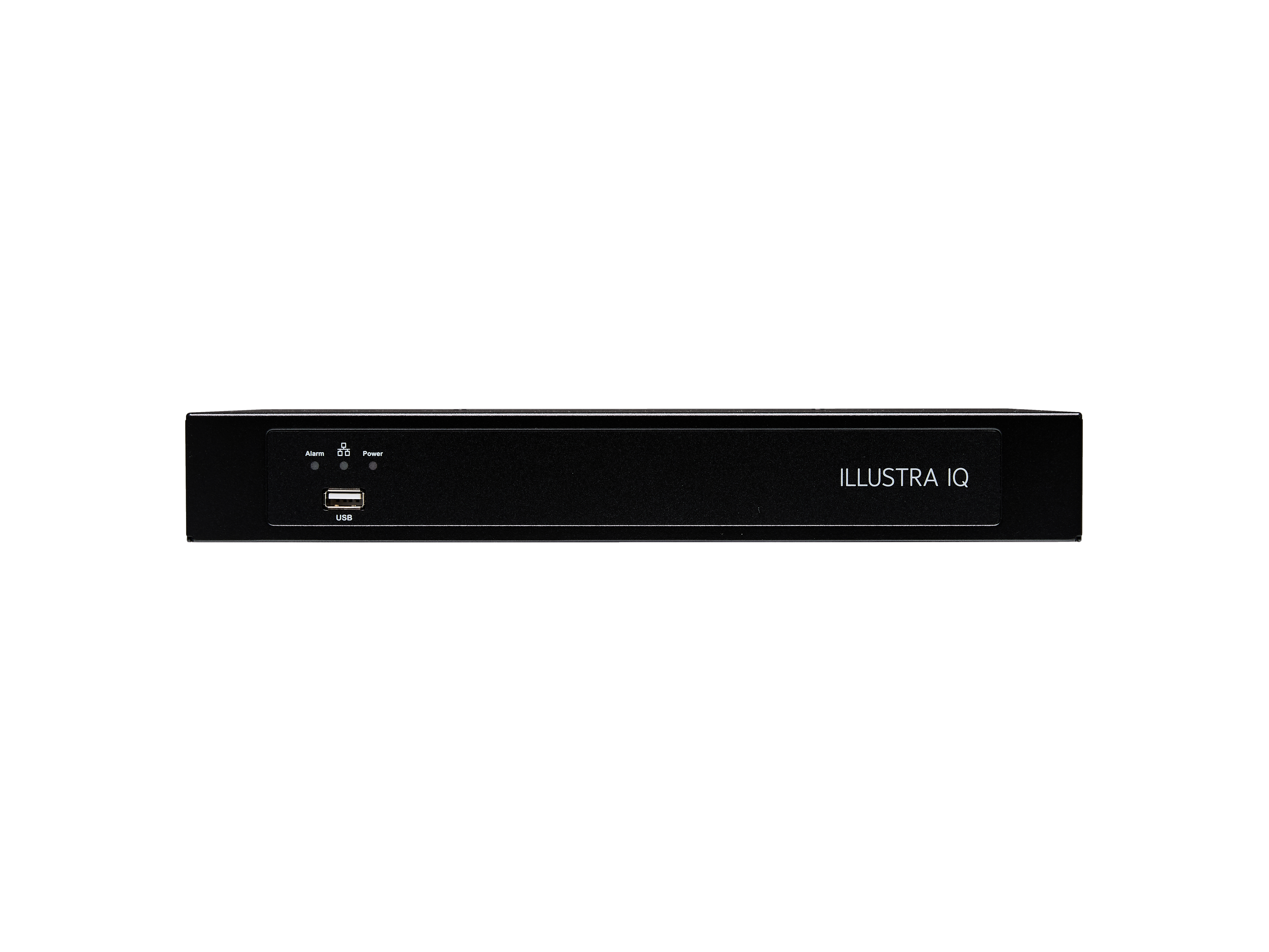

ILLUSTRA - IEN16-1U - 16-channel Video Encoder
Product Overview
The Illustra IEN16-1U is a 16-channel HD video encoder that converts legacy analog camera feeds into network video streams. It supports H.265, H.264, and MJPEG encoding, PTZ control, two-way audio, alarm I/O, and integration with Exacq and VideoEdge video management systems.
Key Configuration
Model: IEN16-1U | Analog Inputs: 16× BNC | Encoding: H.265/H.264/MJPEG | Resolution: Up to 5MP per channel | Network: 10/100/1000Mbps Ethernet | Outputs: HDMI, VGA, and BNC | Form Factor: 1U standalone or rackmount
Key Features
- · Encodes up to 16 HD analog video input channels
- · Supports H.265, H.264, and MJPEG compression
- · Supports up to 5MP at 6fps, 4MP at 8fps, and 1080p at 15fps per channel
- · Supports up to 64 live streams
- · Analog PTZ control through RS-485 using Pelco D and Pelco P protocols
- · Two-way full-duplex audio with G.711 μ-law compression
- · Provides four alarm inputs and one relay output
- · Gigabit Ethernet connectivity with IPv4, IPv6, RTSP, RTP, TCP/IP, and multicast support
- · ONVIF Profile S/T and Exacq and VideoEdge system integration
- · Motion detection with region-of-interest support and secure HTTPS/TLS communications
Technical Context
The IEN16-1U provides a migration path from coaxial analog surveillance to IP video without replacing existing cameras and cabling. Dual-stream H.265/H.264 encoding helps optimize network bandwidth and storage while preserving centralized VMS management.
Installation Notes

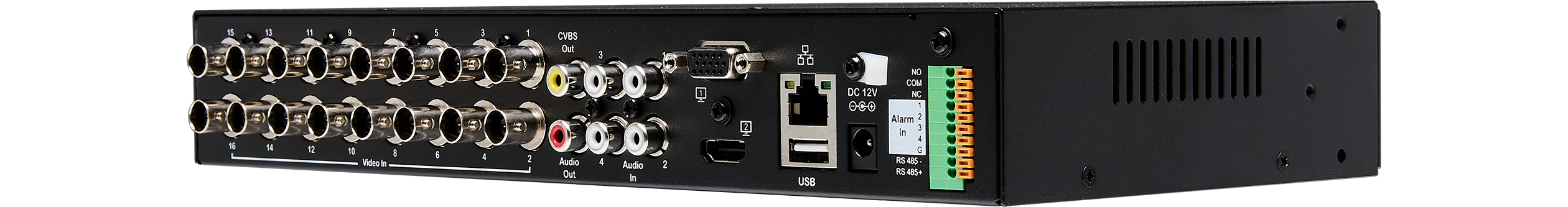

Install the encoder as a 1U standalone or rack-mounted device in a ventilated location. Connect the 16 analog camera inputs, Gigabit network port, audio and alarm wiring, and RS-485 PTZ control as required; operate within -25°C to 70°C and 0–95% non-condensing humidity.
| Product Information | |
| Product | Illustra 16-channel Video Encoder |
| Part Number | IEN16-1U |
| Product Type | 16-channel HD analog video encoder for IP video surveillance systems |
| Video Management Compatibility | American Dynamics VideoEdge and Exacq |
| Installation | 1U standalone or rackmount |
| Video | |
| Analog Video Inputs | 16 × HD analog video BNC inputs |
| Video Compression | H.265, H.264 and MJPEG |
| Maximum Resolution and Frame Rate | Per channel: 5MP at 6fps, 4MP at 8fps, 1080P at 15fps, 720P/540P/360P/270P at 30fps |
| Frame Rate Range | 1 to 30fps |
| Bit Rate Control | CBR and VBR |
| Stream Sharing | Up to 64 live streams |
| Video Outputs | HDMI, VGA, BNC and 1 × CVBS output |
| Audio | |
| Audio Communication | Two-way, full-duplex audio |
| Audio Compression | G.711 μ-law |
| Audio Input/Output | 4 audio inputs and 1 audio output |
| PTZ and Alarm Interfaces | |
| PTZ Control | Analog PTZ camera control via Pelco D and Pelco P protocols |
| Alarm Input | 4 inputs; 3V to 12V high level / 0.5V low level |
| Auxiliary Output | 1 relay output; 24VDC 3A / 120VAC 3A |
| RS485 | 1 interface |
| Event Triggers | Motion detection and alarm input |
| Event Actions | Email notification |
| Network and Management | |
| Ethernet | 1 × RJ45 10/100/1000Mbps Gigabit Ethernet port |
| Network Protocols | TCP/IP, IPv4, IPv6, FTP, SFTP, TCP, UDP, HTTP, LLDP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTSP, UPnP, TLS, unicast, multicast, NTP and SMTP |
| ONVIF | Profiles S and T |
| SNMP | SNMPv2c and SNMPv3 |
| Browser Support | Microsoft Edge, Google Chrome, Mozilla Firefox and Apple Safari |
| Users | Up to 10 simultaneous users |
| User Account Levels | Administrator, operator and user |
| Security | |
| Authentication and Security | TLS, HTTPS, WS-Security, multi-level password protection, IP address filtering, HTTPS encryption, user access logs, IEEE 802.1x and PEAP |
| Network Management | Supported |
| Analytics | |
| Motion Analytics | Motion detection with region of interest support |
| External Interfaces | |
| WAN Port | 1 |
| USB | 2 × USB ports |
| Video Output | 1 × CVBS output |
| LED Indicators | Power, network and alarm status indicators |
| Power | |
| Power Supply | DC 12V/2A |
| Power Rating | 24W |
| Mechanical and Environmental | |
| Housing | Metal casing with EN532T black sand texture |
| Dimensions | 307.3 × 158.3 × 48.8mm |
| Weight | 1.42kg (3.13lb) |
| Shipping Weight | 2.4kg (5.29lb) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Operating Humidity | 0% to 95%, non-condensing |
| Certifications and Warranty | |
| Safety Certifications | UL 62368-1, CB IEC 62368-1 and cTUVus |
| Emissions and Immunity | CE and FCC |
| Environmental Compliance | RoHS, WEEE and REACH |
| Warranty | 3 years |
