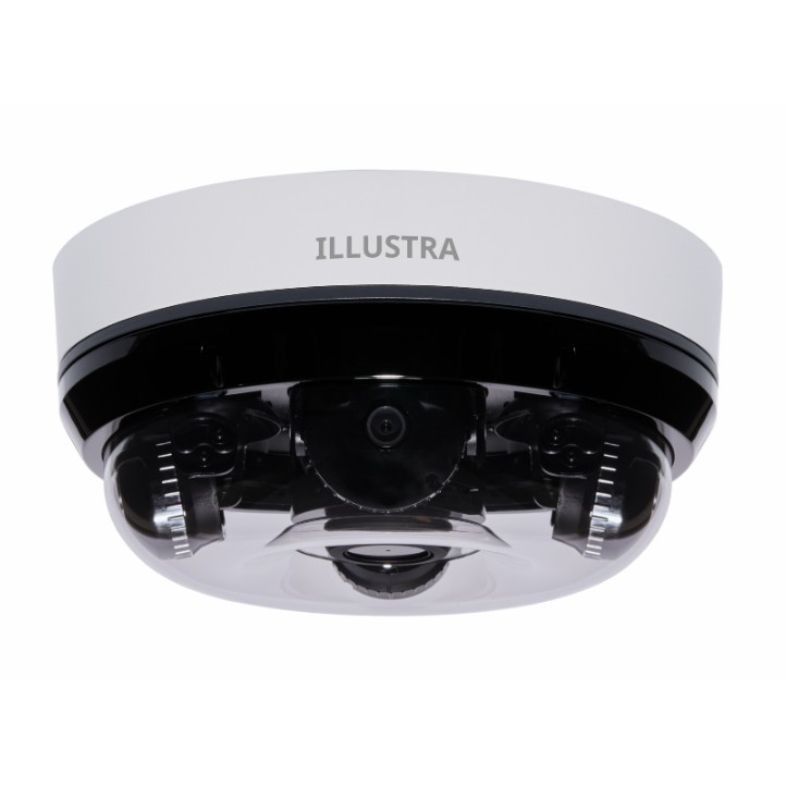

ILLUSTRA - IP5M-20MVQ - 5 Megapixel x 4 Network IP Illustra Varifocal Multisensor Camera with 3.42-6.85mm Lens
Part number:
Price:
Product Overview
The Illustra IP5M-20MVQ is a 20MP multisensor network camera combining four 5MP sensors with motorized varifocal zoom and autofocus. It delivers adjustable coverage, adaptive IR illumination, edge AI analytics, and rugged IP66/IP67 and IK10 protection for demanding indoor and outdoor surveillance.
Key Configuration
Model: IP5M-20MVQ | Resolution: 20MP total (4×5MP) | Lens: Motorized 3.42–6.85mm, F1.85–2.4 | Field of View: 99.7°–45.5° horizontal / 68.1°–32.7° vertical | Frame Rate: 5MP at 30/25fps | IR Distance: Up to 30m | Storage: microSDXC up to 2TB | Power: PoE+ or 24VAC
Key Features
- · Four Sony 1/2.8-inch progressive-scan CMOS sensors delivering 20MP total resolution
- · Motorized varifocal lenses with one-touch autofocus and remote zoom/focus control
- · 5MP imaging at 30/25fps with 4:3 and 16:9 formats
- · Adjustable field of view from 99.7° to 45.5° horizontally per sensor
- · True Day/Night operation with automatic IR-cut filter
- · 850nm Smart IR illumination up to 30m (98.4ft)
- · H.264, H.265, MJPEG, and IntelliZip smart compression
- · AI object classification with person, vehicle, bicycle, retail, and suspicious-object classes
- · Supports perimeter, direction, dwell, queue, crowd, enter, exit, and tripwire rules
- · IP66/IP67, NEMA 250 Type 4X, and IK10-rated aluminum housing with PoE+/24VAC dual power
Technical Context
Each sensor can be remotely zoomed and focused to tailor the viewing area to changing surveillance requirements. The four-sensor architecture, multiple streams, IntelliZip compression, edge analytics, and encrypted microSD recording support flexible coverage and efficient network operation.
Installation Notes
Mount the camera on a suitable surface with all four sensors unobstructed. Provide PoE+ or 24VAC power, connect the Gigabit Ethernet interface, and configure each sensor’s zoom, focus, orientation, analytics, and recording settings; operate within -40°C to 60°C with non-condensing humidity up to 90%.
| Product Information | |
| Model | IP5M-20MVQ |
| Product Type | Illustra 20MP multisensor motorized varifocal network camera |
| Sensor Configuration | 4 × 5MP Sony 1/2.8" progressive-scan CMOS sensors |
| Total Resolution | 20MP |
| Product Features | Motorized varifocal lenses, autofocus, true day/night, adaptive IR, IntelliZip smart codec, AI analytics and dual power supply |
| Camera and Optics | |
| Lens | 3.42mm ±5% to 6.85mm ±5% motorized varifocal lens |
| Aperture | F1.85 wide to F2.4 tele |
| Focus | One-touch autofocus, manual focus and remote zoom/focus |
| Horizontal Field of View | 99.7° wide to 45.5° tele |
| Vertical Field of View | 68.1° wide to 32.7° tele |
| Camera Angle Adjustment | Orbital pan: 0° to 180° Tilt: 0° to 70° Rotation: 359° |
| Day/Night | True day/night with automatic IR-cut filter |
| Minimum Illumination | Color: 0.07 Lux at 1/30s, 0.01 Lux at 1/4s Black and white: 0.03 Lux at 1/30s, 0.001 Lux at 1/4s |
| Exposure Range | 1/4s to 1/32000s |
| Infrared Illumination | |
| IR Wavelength | 850nm |
| IR Technology | Smart IR |
| IR Distance | Up to 30m (98.4ft) |
| Video | |
| Video Compression | H.264, H.265, MJPEG, H.264 IntelliZip and H.265 IntelliZip |
| Maximum Resolution | 4:3: 2560 × 1920, 5MP 16:9 default: 2560 × 1440, 4MP |
| Maximum Frame Rate | 5MP at 30/25fps 2MP at 60/50fps supported with future firmware release |
| Video Streams | 4 streams; up to 16 concurrent shared streams across 4 sensors |
| Smart Codec | Illustra IntelliZip smart compression for reduced bandwidth and storage requirements |
| Bit Rate Control | CBR, VBR and CVBR |
| WDR | True multi-shutter WDR up to 120dB, Smart WDR, True WDR 2x and True WDR 3x |
| Noise Reduction | 2D and 3D digital noise reduction |
| Defog | SmartDefog with low, medium and high settings |
| ROI | Multiple ROI areas, including AI ROI for objects and persons |
| Picture Settings | Auto exposure, gain control, flickerless mode, white balance and text overlay |
| Privacy Zones | Up to 10 user-definable rectangular zones |
| Corridor Mode | Supported; image rotation ±90° |
| Video Analytics | |
| AI Object Classification | Person, bicycle, bus, car, motorbike, train, truck, cart, backpack, handbag, suitcase and other classes |
| Object Attributes | Person clothing colors and vehicle colors |
| Analytics Rules | Object detected, perimeter, linger, dwell, abandoned object, removed object, enter, exit, crowd, queue, direction and tripwire |
| AI Functions | Face detection, tamper detection, blur detection, metadata, smart search and motion detection |
| Audio Analytics | Loud abnormal sound, glass break, fire/smoke alarm, low-pitch sound and scream detection |
| Person Counting | Supported with future firmware release |
| Privacy Redaction | Person and face redaction supported with future firmware release |
| Audio and Alarm | |
| Audio Compression | G.711 μ-law, 9kHz/16-bit |
| Audio Input | Built-in microphone and 1 × line input |
| Audio Output | 1 × line output |
| Audio Communication | Bi-directional audio |
| Alarm I/O | 1 alarm input and 1 alarm output |
| Event Triggers | Motion detection, tamper detection, face detection, AI object classification, alarm input and network loss |
| Event Actions | SD recording, snapshots, SMTP email, FTP transfer, CIFS, auxiliary output and audio clip playback |
| Network and Security | |
| Ethernet | 1 × RJ45 10/100/1000Mbps auto-sensing Ethernet port |
| Network Protocols | ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP, RTCP, RTP, SMTP, SNMPv1/2c/3, TCP/IP, TLS, UDP, UPnP, Bonjour, DDNS, LDAP, PPPoE, SFTP, LLDP, unicast and multicast |
| ONVIF | Profiles S, G, T and M |
| SNMP | SNMPv2c and SNMPv3 |
| Cybersecurity | Secure boot, signed and encrypted firmware, TLS/HTTPS, WS-Security, certificate management, TPM 2.0, IP filtering, IEEE 802.1x, PEAP, EAP-TLS, multi-level password protection and user access logs |
| Simultaneous Users | Up to 10 |
| System Integration | Illustra iAPI through Connected Partner program |
| Memory and Storage | |
| Memory | 4GB RAM |
| Flash Memory | 8GB Flash |
| Onboard Storage | 1 × MicroSDXC slot, Class 10 or higher, up to 2TB; card not included |
| Event Buffering | 1 to 10 seconds pre-event and post-event buffering |
| Offline Recording | TrickleStor offline recording and encrypted backfilling |
| Storage Security | Encrypted storage and streaming |
| Power | |
| Power Supply | IEEE 802.3at Class 4 PoE+, 0.53A / 25.5W 24VAC ±10%, 2.5A / 30W via 3.5mm 2-pin terminal block |
| Dual Power Supply | Supported; PoE+ and 24VAC |
| Power Consumption | PoE+: 25.5W 24VAC: 30W |
| Surge Protection | 6kV contact discharge and 8kV air discharge |
| Mechanical and Environmental | |
| Housing | Aluminum alloy housing with polycarbonate dome components |
| Color | Signal White, RAL 9003 |
| Protection Rating | IP66, IP67, NEMA 250 Type 4X and IK10 |
| Dimensions | Ø260 × 116mm (Ø10.2" × 4.6") |
| Weight | Net: 3.2kg (7.05lb) Gross: 4.5kg (9.9lb) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F); IR disabled above 50°C |
| Start-up Temperature | -40°C (-40°F) |
| Humidity | Up to 90% RH, non-condensing |
| Certifications and Accessories | |
| Compliance | NDAA compliant and TAA compliant |
| Certifications | FCC, CE, UL, CB, RoHS, WEEE and REACH |
| Supported Browsers | Microsoft Edge, Firefox, Safari and Chrome |
| Supported Tools | Illustra Connect for Windows and Illustra Tools for iOS/Android |
| Optional Accessories | IPRM-MQ recessed mount, IPPC-MQ pendant cap, IPCA-MQ conduit adapter, IPCB-MQ clear bubble, IPSB-MQ smoked bubble, IUWM-WN wall mount, IUPM-WN pole mount and IUCM-WN corner mount |
| Warranty | 5 years |
