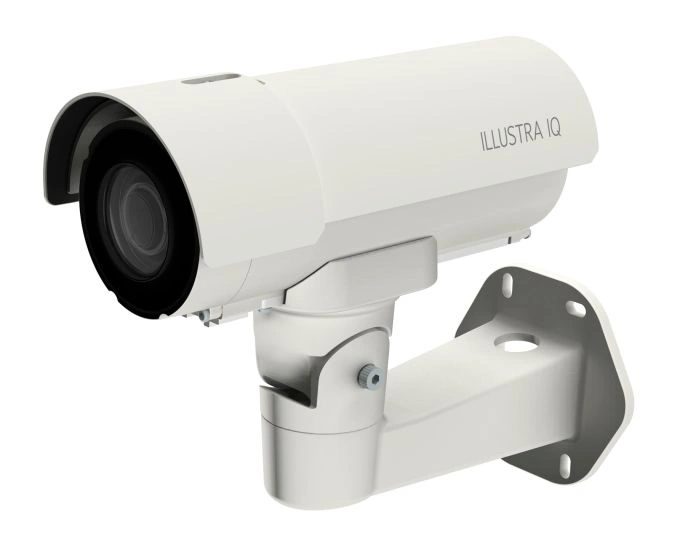

ILLUSTRA - IPS05-B12-LPR4 - Pro Gen4 5 Megapixel Outdoor LPR Bullet Camera with 2.7-13.5mm Lens
Part number:
Price:
Product Overview
The Illustra Pro Gen4 Edge AI LPR camera series provides automatic license plate recognition for parking access, vehicle monitoring, and security applications. Available in bullet and dome versions, these 5MP cameras combine edge-based LPR, vehicle analytics, integrated I/O, and ExacqVision or VideoEdge interoperability.
Key Configuration
Models: IPS05-B12-LPR4 Bullet / IPS05-D12-LPR4 Dome | Resolution: 5MP | Lens: Motorized 2.7–13.5mm, F1.4–2.8 P-iris | LPR Range: 5–15m | Vehicle Speed: Up to 56km/h | Storage: microSDXC up to 2TB | Network: 10/100 Base-T PoE
Key Features
- · 5MP edge AI license plate recognition camera platform
- · Perpetual LPR license included and pre-activated
- · Recognizes cars, buses, trucks, and other supported vehicle types
- · Supports free-flow traffic and automated access up to 56km/h (35mph)
- · Stores up to 2,000 entries across four plate groups with individual event handling
- · Operates independently at the edge without a backend server or prebuilt SD card database
- · Includes Illustra Pro AI object analytics and metadata functions
- · Supports vehicle direction, dwell, queue, perimeter, entry, and exit rules
- · Provides two line inputs and two relay outputs for access-control and parking integration
- · IP66/IP67-rated outdoor construction with variant-specific NEMA or UL Type 4X certification
Technical Context
License plate recognition is processed directly on the camera, enabling local plate lists, access decisions, event handling, and vehicle metadata without requiring a separate analytics server. Integration with ExacqVision, VideoEdge, or CCURE systems supports centralized video verification and parking-management workflows.
Installation Notes
Mount the selected bullet or dome camera for a single-lane view at an effective capture distance of 5–15m. Use PoE or the specified 24VAC input, connect access-control I/O as required, and configure plate lists, exposure profiles, and LPR parameters according to site lighting and traffic conditions.
| Product Information | |
| Product Family | Illustra Pro Gen4 License Plate Recognition |
| Product Type | Edge AI license plate recognition camera system |
| Camera Variants | 5MP LPR Bullet and 5MP LPR Dome |
| LPR Processing | Edge-based license plate recognition; no back-end server required for plate capture |
| LPR License | Perpetual license included and pre-activated |
| Applications | Parking access control, gated areas, toll management and vehicle security |
| License Plate Recognition | |
| Vehicle Types | Cars, buses and trucks |
| Recommended Capture Distance | 5m to 15m (15ft to 50ft) |
| Vehicle Speed | Up to 56km/h (35mph) |
| Recommended Coverage | Single lane |
| Plate Database | Up to 2000 entries across 4 plate groups with individual event handling |
| Plate Support | Standard modern license plates from Canada, Europe and the United States |
| Supported Characters | A-Z and 0-9 |
| Smart Exposure Profiles | LPR high, medium and low exposure profiles |
| Operation | Standalone on-site operation and edge configurations supported |
| Camera and Lens | |
| Image Sensor | Sony 1/2.8" progressive-scan ultra-low-light CMOS sensor |
| Maximum Resolution | 5MP |
| Lens | Motorized 2.7mm to 13.5mm varifocal lens, F1.4 to F2.8, P-iris |
| Bullet Horizontal Field of View | 103.8° to 33.8° |
| Dome Horizontal Field of View | 103° to 33° |
| Bullet Vertical Field of View | 55° to 19° |
| Dome Vertical Field of View | 74° to 25° |
| Focus | Physical autofocus button and remote one-push autofocus |
| Day/Night | True day/night with mechanically removable IR-cut filter and adjustable thresholds |
| Minimum Illumination | Bullet: Color 0.11 Lux, black and white 0.03 Lux, 0 Lux with IR Dome: Color 0.12 Lux, black and white 0.05 Lux, 0 Lux with IR |
| Shutter Speed | 1/32000s to 1/8s |
| Infrared Illumination | |
| IR Wavelength | 850nm |
| IR Technology | Adaptive IR and Smart IR |
| IR Distance | Effective up to 50m (164ft) |
| PoE Transmission Distance | Up to 50m with PoE and up to 70m with PoE+ |
| Video | |
| Video Compression | H.264 HP/MP, H.265 HP and Motion JPEG |
| Resolution and Frame Rate | Up to 2560 × 1440 or 2560 × 1920 at 30/25fps 1080P up to 60/50fps |
| Video Streaming | Quad streaming |
| Bit Rate Control | CBR, VBR and CVBR |
| Compression Optimization | IntelliZip smart compression and higher-compression ROI |
| WDR | True WDR 120dB, Smart WDR, TWDR 2x and TWDR 3x |
| Image Enhancement | Smart defog, AI auto exposure, auto white balance, auto gain, electronic image stabilization and flickerless mode |
| Privacy Mask | Supported |
| Corridor Mode | Supported |
| Video Output | 1 × Micro HDMI for preview |
| Video Analytics | |
| AI Object Classifications | Person, vehicle, bicycle, bus, car, motorbike, train and truck |
| Retail Objects | Cart, backpack, handbag and suitcase |
| Object Attributes | Person clothing colors and vehicle colors |
| Analytics Rules | Object detected, abandoned/removed objects, direction, linger, dwell, enter, exit, crowd, queue and perimeter |
| Additional AI Functions | Face detection, tamper detection, blur detection, metadata, smart search, motion detection, whiteout, blackout and scene-change detection |
| Person Re-identification | Supported through VideoEdge v6.1.1 or later |
| Audio and Alarm | |
| Audio Compression | G.711 μ-law |
| Audio Streaming | Bi-directional, full-duplex audio |
| Audio Interface | 1 × line-in and 1 × line-out terminal block |
| Alarm Interface | 2 × line-in and 2 × relay line-out, 30V/1A, terminal block |
| Event Triggers | Video analytics, alarm input, network loss and temperature |
| Event Actions | SD recording, snapshot, SMTP email, FTP upload, CIFS, alarm output, audio clip playback and SIP call |
| Network and Security | |
| Ethernet | 1 × RJ45 10/100Mbps auto-sensing Ethernet port |
| Network Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, unicast, multicast, NTP, ICMP, IGMP, SMTP, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPnP, LLDP, QoS and SIP |
| ONVIF | Profiles S, G, M and T |
| SNMP | SNMPv2c and SNMPv3 |
| Cybersecurity | Secure boot, signed and encrypted firmware, HTTPS/TLS encryption, certificate management, IP filtering, IEEE 802.1x, PEAP, EAP-TLS, digest authentication, brute-force delay protection and user access logs |
| Simultaneous Users | Up to 10 |
| System Integrations | ExacqVision 24.09 or later, VideoEdge 6.4 or later and CCURE access and visitor management systems |
| Application Interface | Illustra iAPI through the Connected Partner program |
| Storage | |
| Onboard Storage | 1 × MicroSDXC slot, Class 10 or higher, up to 2TB; card not included |
| Offline Recording | TrickleStor offline recording and backfilling through VideoEdge and ExacqVision NVR |
| Event Buffering | 1 to 10 seconds pre-event and post-event buffering |
| Storage Security | Encrypted storage and streaming |
| Mechanical | |
| Bullet Housing | Die-cast aluminum body and bracket, polycarbonate front window and sunshield |
| Dome Housing | Die-cast aluminum dome base, encapsulated electronics and polycarbonate clear bubble |
| Bullet Dimensions | Ø79.9 × 205mm (Ø3.2" × 8.1") |
| Dome Dimensions | Ø138 × 135mm (Ø5.4" × 5.3") |
| Bullet Weight | Net: 1.2kg (2.7lb) Gross: 3.2kg (7.1lb) |
| Dome Weight | Net: 1.2kg (2.7lb) Gross: 1.7kg (3.7lb) |
| Dome Mounting | Surface mount, recessed mounting kit and 3-axis adjustable lens holder |
| Vandal Resistance | Dome: IK10 impact resistance |
| Power | |
| Bullet Power | PoE IEEE 802.3af Type 1 Class 4 PoE+ IEEE 802.3at Type 2 Class 4 24VAC, 1.27A terminal block |
| Dome Power | PoE IEEE 802.3af Type 1 Class 3 24VAC, 0.8A terminal block |
| Bullet Power Consumption | PoE: 12.95W PoE+: 18.72W 24VAC: 21W |
| Dome Power Consumption | PoE: 12.95W 24VAC: 16.5W |
| Dual Power Redundancy | Supported |
| Environmental and Compliance | |
| Bullet Protection | IP67/IP66, NEMA 250 Type 4X |
| Dome Protection | IP67/IP66, UL 50 Type 4X |
| Operating Temperature | -50°C to 60°C (-58°F to 140°F) |
| Maximum Intermittent Temperature | 65°C (149°F) |
| Cold Start Temperature | -40°C (-40°F) |
| Storage Temperature | -40°C to 65°C (-40°F to 149°F) |
| Humidity | 0% to 95% RH, non-condensing |
| Compliance | NDAA compliant and TAA compliant |
| Certifications | CE, FCC, UL, CB, RoHS, WEEE and REACH |
| Warranty | 5 years |
