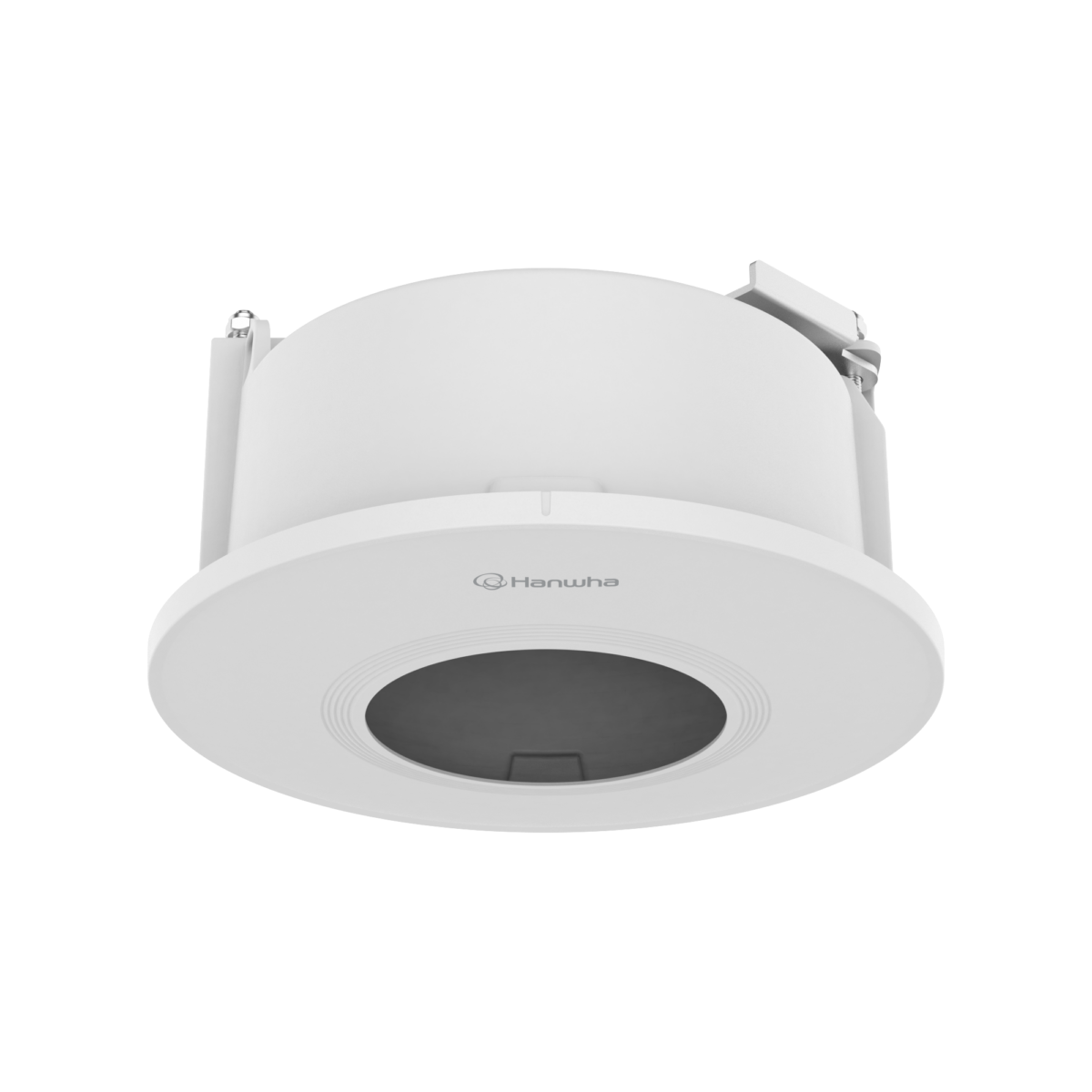

Hanwha - SHD-1201FPW - Plenum In-ceiling mount compatible with QNV-C8013R/C8023R
Part number:
SHD-1201FPW
Price:
Plenum In-ceiling mount compatible with QNV-C8013R/C8023R
Features:
• Color: White
• Material : Aluminum
• Product dimensions : ø180x100.7mm (ø7.09x3.96")
• Weight : 676.4g (1.49lb)
• Max. load : 2kg (4.41lb) ※ Maximum load of ceiling board : 3kg (6.61lb)
| Specification | |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | ø180x100.7mm (ø7.09x3.96") / 676.4g (1.49lb) ※ Ceiling hole size : ø160mm (ø6.3") |
| Tile thickness | 10~70mm (0.4~2.8") |
| Mount Screw size | TR20 |
| Max. load | 2kg (4.41lb) ※ Maximum load of ceiling board : 3kg (6.61lb) |
| Conduit hole | 12.7mm(1/2") (M20) / 19.1mm(3/4") (M25) |
| Supported products | QNV-C8013R/C8023R |
