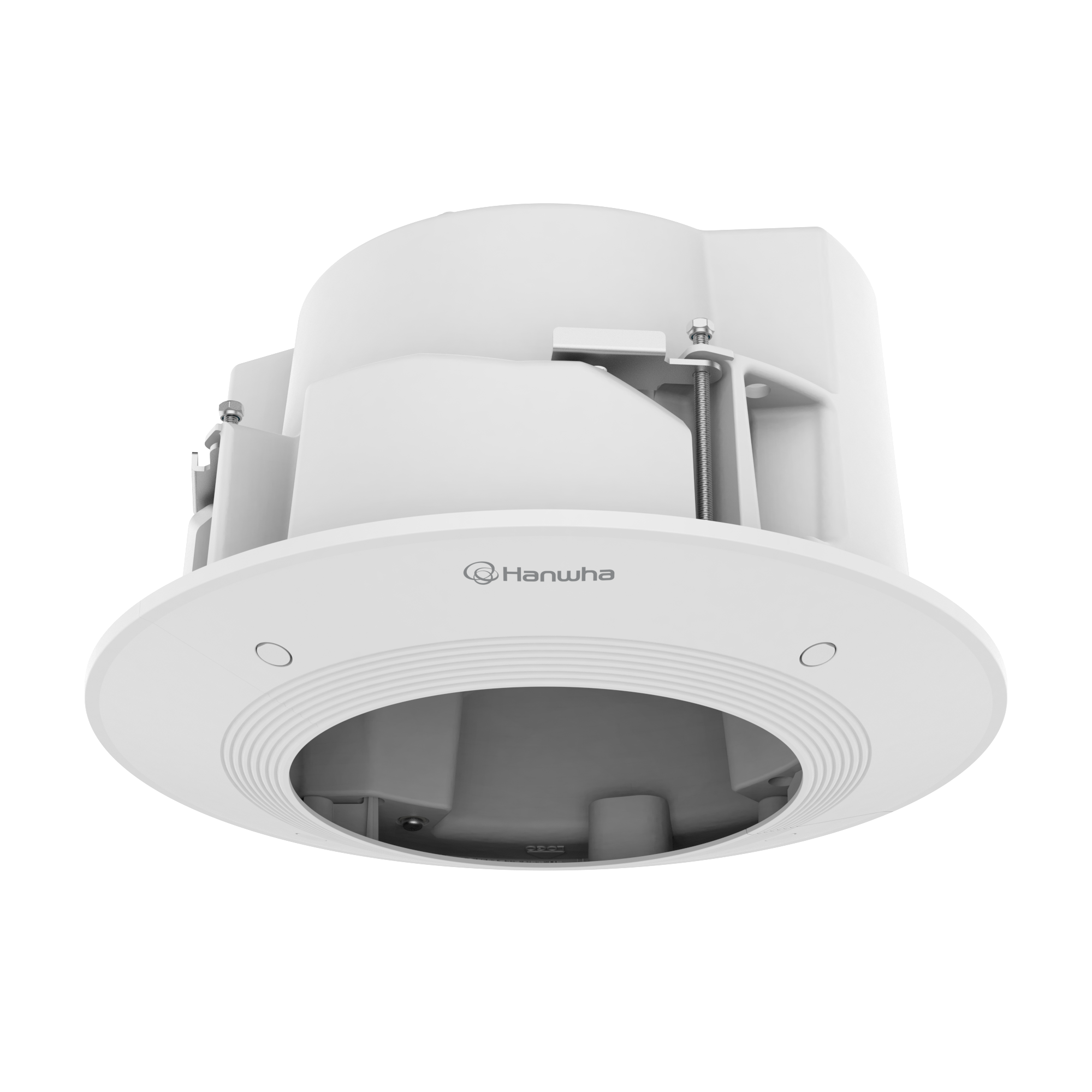

Hanwha - SHP-1730FPW - Plenum rated in-ceiling mount Compatible with XNP-C7310R & C9310R
Part number:
SHP-1730FPW
Price:
Plenum rated in-ceiling mount Compatible with XNP-C7310R & C9310R.
Features:
• Color : White
• Material : Enclosure - Aluminum, Top cover - Polycarbonate(PC)
• Product dimensions / weight : ø311x188mm (ø12.24x7.40") / 2.45kg (5.40lb)
• Ceiling hole size : ø266mm (ø10.50")
• Max. load : 7kg (15.43lb)
• Maximum load of ceiling board : 15kg (33.10lb)
| Mechanical | |
| Color | White |
| Material | Enclosure : Aluminum, Top cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | ø311x188mm (ø12.24x7.40") / 2.45kg (5.40lb) ※ Ceiling hole size : ø266mm (ø10.50") |
| Tile thickness | 10~70mm (0.4~2.8") |
| Mount Screw size | TR20, T30 |
| Max. load | 7kg (15.43lb)※ Maximum load of ceiling board : 15kg (33.10lb) |
| Conduit hole | 19.1mm(3/4") (M25) / 12.7mm(1/2") (M20) |

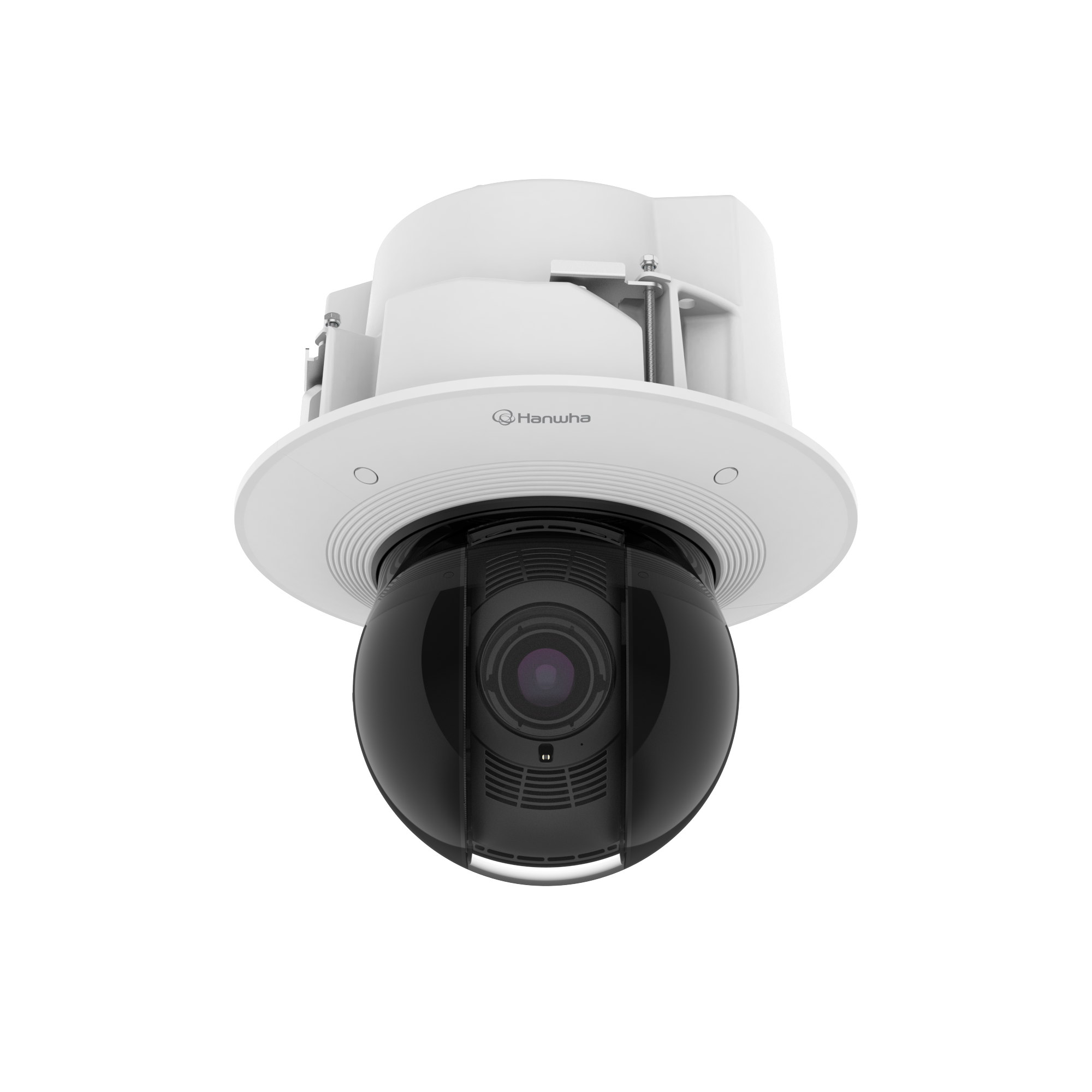

| Supported products | XNP-C7310R, XNP-C9310R |
