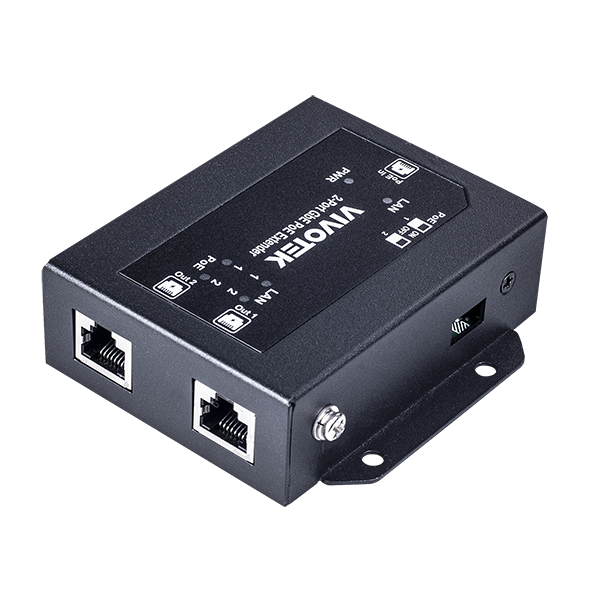

Vivotek - AP-GXC-0200 - Indoor 1 PoE IN - to - 2 PoE OUT
Part number:
AP-GXC-0200
Price:
Indoor 2-Port GE PoE Extender
Features:
- Gigabit Ethernet
- 802.3 bt Compatible
- Surge Protection 12KV
- Max. 300m Extension
| Extension Distance | 2 Units, Daisy-chain Installation Up to 300M Extension (No Local Power Required) |
| PoE Input Power | 802.3 af/at/bt & PoH up to 95W |
| PoE output Power | 48~55VDC, max. 68W Passive PoE |
| PD Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PSE Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PD Gigabit Ethernet (RJ45) | 1 |
| PSE Gigabit Ethernet (RJ45) | 2 |
| PSE Power On/Off Dip Switch | Supported |
| Surge Protection /PoE Port | 12KV |
| Total Gigabit Ethernet Port | 3 |
| Mac Table | 2K |
| Bandwidth | 10/100/1000 Mbps |
| Switching Capacity | 6 Gbps |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Dimensions (WxHxD) | 89 x 86.5 x 28 mm |
| Weight | 0.21 KG |
| LED Indicators | Power, LAN, PoE |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10% to 90% non-condensing |
| EMC | CE,FCC,VCCI,C-Tick |
