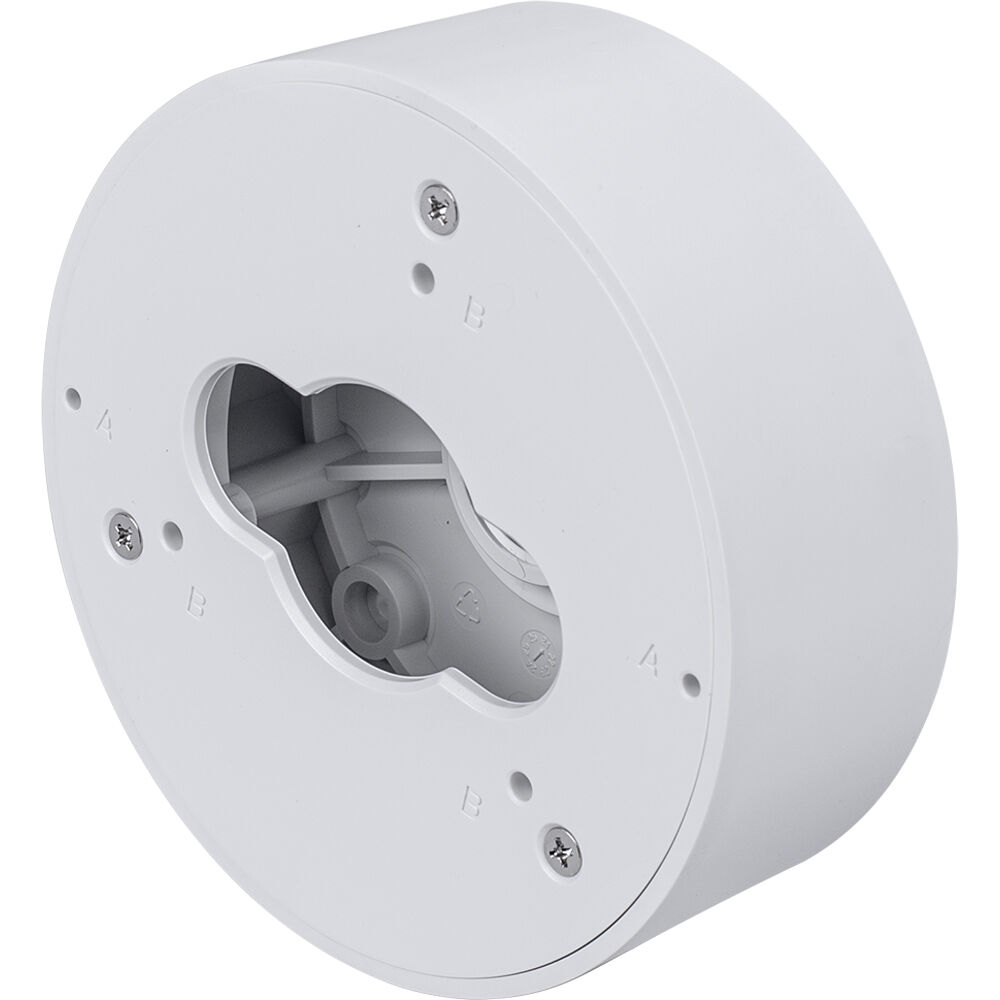

Vivotek - AM-71F - Indoor Conduit Box: fD9369, IB9369, IB9380-H
Part number:
AM-71F
Price:
Indoor Conduit Box: fD9369, IB9369, IB9380-H
| Technical Specification | |
| Model | AM-71F |
| P/N | 100258500G |
| Material | PC |
| Color | White |
| Pipe Thread | PF 1/2” |
| Dimensions | Ø 110 x 41 mm |
| Weight | 168 g |
| Box Dimension | 171 (L) x 125 (W) x 66 (H) mm (1pc) |
| Box Weight | 254 g |
| Carton Dimension | 531 (L) x 351 (W) x 205 (H) mm (20pcs) |
| Carton Weight | 5.9 kg |
| Supported Models | FD9369, IB9369, IB9380-H, IB9383-H(T)V |
Name
Description
Size
Downloads
File
Specification Sheet
0.4mb
File
Alignment Sticker
0mb
