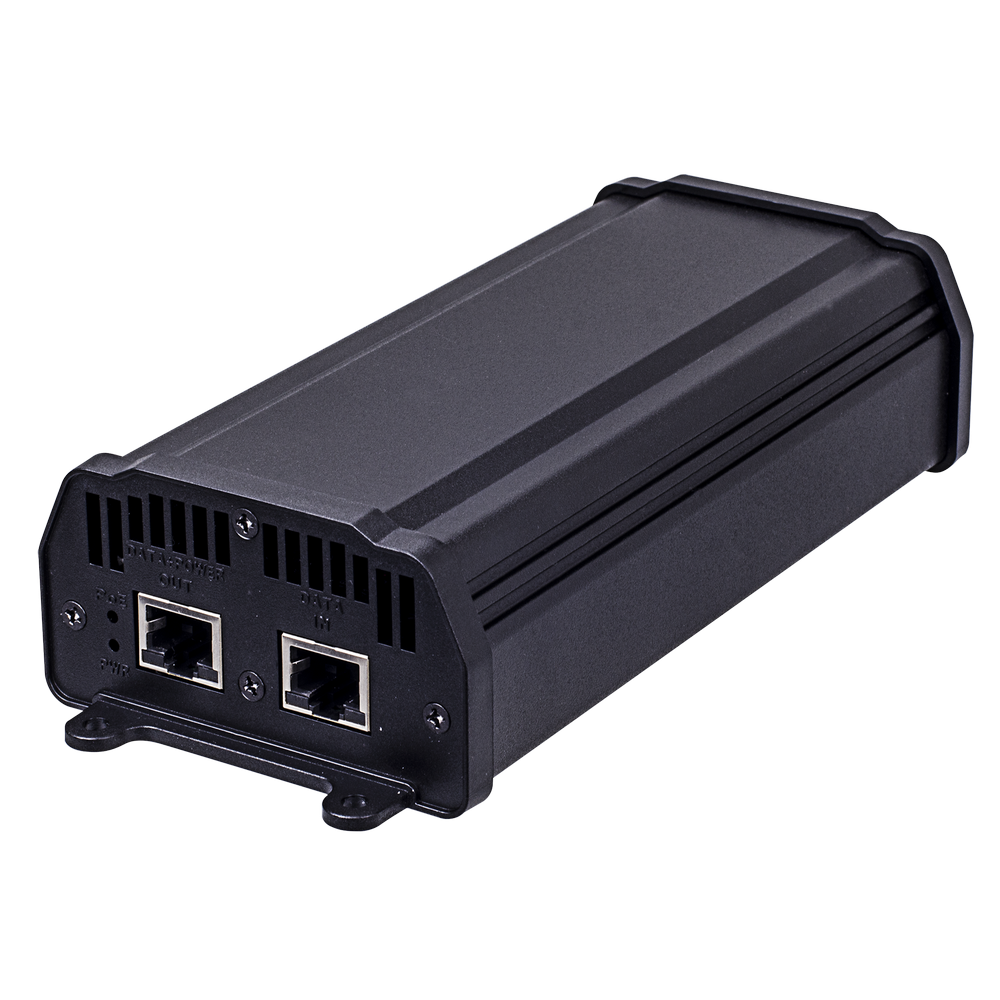

Vivotek - AP-GIC-011A-060 - Indoor IEEE802.3at 60W Gigabit UPOE Injector

Indoor  IEEE802.3at 60W Gigabit UPOE Injector, Supports SD8311E, SD8312E, SD8313E, SD8362E, SD9361-EHL, SD9362-EHL, SD9362-EH.

Features:

Ethernet

• Gigabit Ethernet 10/100/1000Mbps (RJ45) 1

Standards


• IEEE 802.3 10-BASE-T (Ethernet) Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
• IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
• IEEE 802.3at Power over Ethernet Supported

Transmission Media

• 10Base T Cat. 3, 4, 5 UTP/STP,
• 100Base TX Cat. 5, 5e UTP/STP
• 1000Base T Cat. 5e, 6, 7 UTP/STP

PoE Function

• Number of PoE Out Ports 1
• Max. PoE Output Power/ per Port 54VDC/60W
• 802.3at Standard Compatible Yes\
• Over Current Protection Supported
• Circuit Shorting Protection Supported
• Total PoE Power Budget 60W
• Power Pin Assignment 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PD Auto Detection Supported

General

• LED Indicators Power, PoE
• Power Input 100~240VAC/50~60Hz
• Power Consumption 65W
• Surge Protection Data/PoE port 12KV
• Surge Protection AC Power 4KV
• Dimensions 182 (L) x 78.6 (W) x 41.9 (H) mm
• Weight 0.58 kg
• Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
• Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
• Humidity Operating: 10~90% (Non-condensing)
• Storage: 10~90% (Non-condensing)
• Safety Certifications CE, C-Tick, FCC, VCCI, LVD

Accessory

• Included Accessories Power cord, QIG
