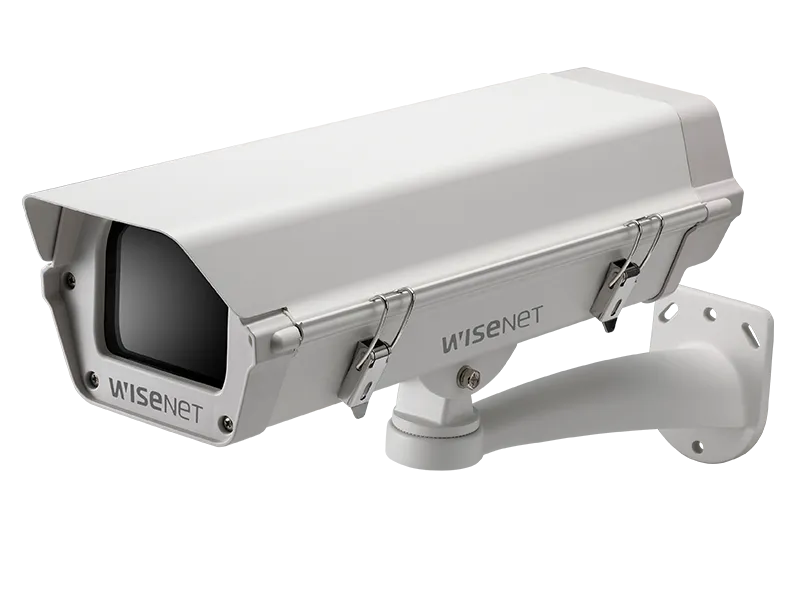

Hanwha - SHB-4200H - Indoor/Outdoor Fixed Camera Housing
Part number:
SHB-4200H
Price:
Indoor/Outdoor Housing w/Mounting Bracket Accessory, Heater/Blower, -31°F~122°F, 24VAC, IP66.
Features:
- Construction: Aluminum
- Ingress Protection: IP66
- Power: 24VAC
- Color: Ivory
| SHB-4200H | ||
| Open Type | Side open | |
| Cable Entry | Nylon gland | |
| Operating Temperature | Set | -35°C ~ +50°C (-31°F ~ +122°) |
| Heater | 4°C ± 3°C on (1 x heater : 20W) | |
| Blower | +45°C ~ +5°C on (1 x blower : 1.6W) | |
| Defroster | N/A | |
| Operating Humidity | 0 ~ 90% RH | |
| Materials | Aluminum | |
| Ingress Protection | IP66 | |
| Dimensions (WxHxD) | External | 148.0 x 107.0 x 421.0mm (5.83" x 4.21" x 16.57") |
| Internal | 84.0 x 78.0 x 230.0mm (3.31" x 3.07" x 9.06") | |
| Weight | 1.1Kg (2.3 lb) | |
| Input Voltage | 24V AC | |
| Power Consumption | 21.6W | |
| Color | Ivory | |
| Applicable Model | Box cameras (Network / Analog) | |
| Certification | N/A | |
