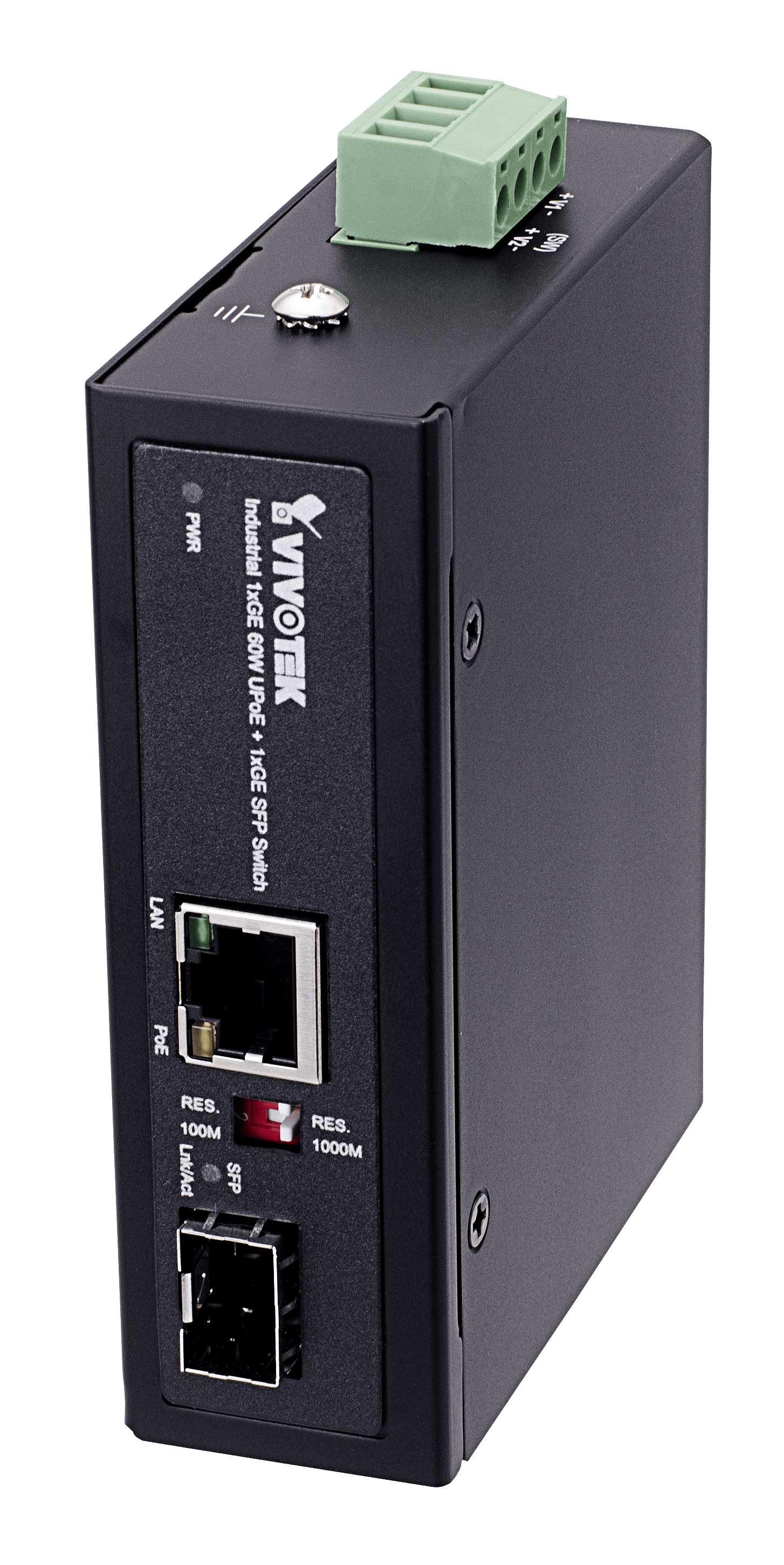

Vivotek - AW-IHU-0200 - Industrial 1xGE 60W UPoE + 1xGE SFP Switch
Part number:
AW-IHU-0200
Price:
Industrial 1xGE 60W UPoE + 1xGE SFP Switch1 port 60W UPOE 10/100/1000M + 1 port 100/1000M SFP, 48~56VDC input, -40°C to 75°C, 2 Year Warranty.
| Model | AW-IHU-0200 |
| IP Camera Compatibility | |
| Video Resolution | Megapixel/D1/VGA |
| Video Compression | MJPEG/MPEG-4/H.264/H.265 |
| Compatible Camera List | VIVOTEK IEEE 802.3at / UPoE Network Cameras |
| Ethernet | |
| Gigabit Ethernet (RJ45) | 1 |
| Gigabit Ethernet (SFP) | 1 |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) | Supported |
| IEEE 802.3x Flow Control (Full-Duplex Flow Control) | Supported |
| IEEE 802.3at Power over Ethernet Plus | Supported |
| Ethernet Performance | |
| MAC Address | 2 K |
| Buffer Memory | 128 KB |
| Transmission Method | Store and Forward |
| Backplane | 2 Gbps |
| Jumbo Frame | 9KB |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Filtering/Forwarding Rates | |
| 10Mbps | 14,880 pps |
| 100Mbps | 148,000 pps |
| 1000Mbps | 1,488,000 pps |
| Transmission Media | |
| 10Base T | Cat. 3, 4, 5 UTP/STP |
| 100Base TX | Cat. 5, 5e UTP/STP |
| 1000Base T | Cat. 5e,6,7 UTP/STP |
| It is highly recommended to use standard Cat. 5e ETL standard. | , 6, 7 cables which are compliant with the 3P/ |
| PoE Function | |
| Number of PoE Out Ports | 1 |
| PoE Power Output Per Port 56VDC, Max. 60W | |
| 802.3at Standard Compatible | Yes |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Total PoE Power Budget | 60W |
| Power Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE PD Auto Detection | Yes |
| General | |
| LED Indicators | Power, PoE, SFP, LAN |
| Power Input | 50 ~ 56VDC |
| Power Consumption | 72W |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1A @ 24VDC |
| Housing | Rugged Metal, IP30 Protection |
| Installation | DIN-rail Mounting and Wall Mounting |
| Dimensions | 103.5 (L) x 32 (W) x 81.5 (H) mm |
| Weight | 0.14 kg |
| Operating Temperature | -40°C ~ 75°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing) |
| Safety Certifications | CE, C-Tick, FCC, VCCI, LVD |
| Stability Testing | EN 55022/24 |
| EN 55011 | |
| EN 60068-2-6 | |
| EN 60068-2-27 | |
| EN 60068-2-32 | |
| Accessories | |
| Included Accessories | QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit |
| Optional Accessories | Industrial SFP Transceiver |
| SFP-1000-MM85-X5I: MMF, 0.5 km, -40°C ~ 85°C | |
| SFP-1000-MM13-02I: MMF, 2 km, -40°C ~ 85°C | |
| SFP-1000-SM13-10I: SMF, 10 km, -40°C ~ 85°C | |
| SFP-1000-SM13-40I: SMF, 40 km, -40°C ~ 85°C | |
| Optional Power Supply | Din Rail Power Supply: |
| NDR-75-48: | |
| 90~264VAC In, 48VDC/75W Out, -20°C~70°C Wall Mount Power Supply: | |
| HLG-80H-54: | |
| 90~305VAC In, 54VDC/80W Out, -40°C~70°C | |
