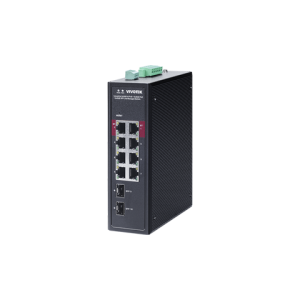

Vivotek - AW-IHB-1040 - Industrial 2xGbE bt 90W+6xGbE at 30W+2xGbE SFP LiteManSwitch
Part number:
AW-IHB-1040
Price:
Industrial 2xGbE bt 90W+6xGbE at 30W+2xGbE SFP LiteManSwitch. 10 Ports Lite Managed PoE Switch
Features:
- Port-based and Tag-based VLAN
- Spanning Tree Protocol (STP/RSTP)
- Link Aggregation Control Protocol
- LACP IEEE 802.3ad
- Temperature and Humidity Detection
| Technical Specification | |
| Product Information | |
| Segment | Lite Managed PoE Switch |
| Product Description | Industrial 2xGbE bt 90W + 6xGbE at 30W + 2xGbE SFP Lite Managed Switch |
| Port Configuration | |
| PoE Port Ethernet | 8xGbE PoE |
| Uplink Port Ethernet | 2xGbE SFP |
| Total Ports | 10 |
| PoE Function | |
| PoE Port | 8 |
| Max. PoE Output Power | Port 1-4 bt 90W Port 5-24 at 30W, Port 3-8 at 30W |
| PoE Power Budget | 300W |
| PoE Standard | 802.3 af/at/bt |
| PoE Pin Assignment | Port 1-4 bt: 4 pairs 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-) Port 5-24 af/at: 2 pairs 1/2 (+), 3/6 (-) |
| Surge Protection | 6KV |
| HW Performance | |
| Switching Bandwidth | 20 Gbps |
| Buffer Memory | 1.5Mb |
| Forwarding Rate | 14.88 Mpps |
| MAC Address | 4K |
| Jumbo Frames | 9216 Bytes |
| Max. Power Consumption | 310W |
| L2 Managed Features | |
| Spanning Tree | |
| IEEE802.1D (STP) | Yes |
| IEEE802.1w (RSTP) | Yes |
| Trunking | |
| IEEE802.1d (LACP) | Yes |
| Static Aggregation | Yes |
| VLAN | |
| 802.1Q Tag-based VLAN | 4096 VLAN IDs |
| Port-based VLAN | Yes |
| QoS Features | |
| Hardware Queues | 8 |
| Classification | |
| Port Based | Yes |
| 802.1p | Yes |
| Rate Limiting | |
| Ingress | Yes |
| Egress | Yes |
| Per Port | Yes |
| Priority Queue Scheduling | |
| WRR | Yes |
| DSCP & Class of Service | Yes |
| Management | |
| Port Mirroring | Yes |
| Firmware Upgrade | Yes |
| PoE Management | |
| PoE On/Off Control | Yes |
| PoE Alive Checking for PD | Yes |
| Non-Stop PoE | Yes |
| Extended PoE Mode (up to 250m/10mbps) | Yes |
| Environmental Specifications | |
| Operating Temperature | 40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | 40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 90% Non-Condensing |
| Mechanical Specifications | |
| Dimensions | 165 (W) x 123 (D) x 53.5 (H) mm |
| Weight | 0.9 kg |
| Power Source | |
| Power Input | 48-52VDC bt port up to 60W 52-56VDC bt port up to 90W Redundant power backup |
| Certifications | |
| Types | CE,UKCA,FCC,VCCI, BSMI |
| Included Accessories | |
| Content | QIG, Temperature Sensor, Terminal Block, DIN Rail Bracket |
