Planet - IGS-824UPT - IP30 Industrial 4-Port 10/100/1000T 95W 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch(802.3bt Type-4, BT/Legacy and Force DIP switch, -40 to 75 C, dual 48V~54V DC, PoE Usage LED)
Product Overview

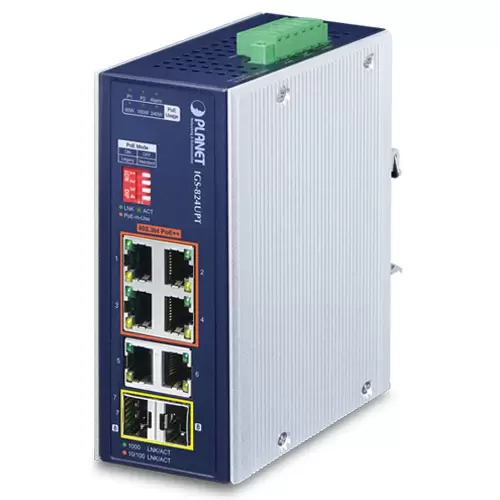

The Planet IGS-824UPT is an IP30 industrial unmanaged Gigabit switch with 4 × 802.3bt PoE++ ports (up to 95W each), 2 Gigabit RJ45 ports, and 2 SFP fiber uplink ports (100/1000BASE-X). It provides a total PoE budget of up to 240W and supports dual redundant 48–54V DC power inputs. Designed for harsh environments, includes PoE status LEDs indicating 80W, 160W, and 240W usage levels.
Key Configuration

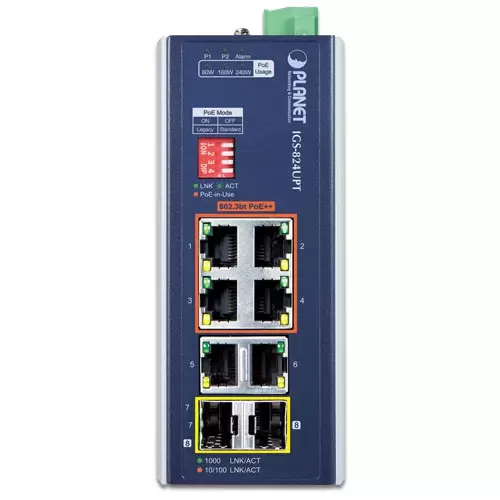

- • Copper ports: 4 × 10/100/1000BASE-T with 802.3bt PoE++ (ports 1-4) + 2 × 10/100/1000BASE-T (non-PoE, ports 5-6)
- • SFP slots: 2 × 100/1000BASE-X SFP (compatible with 100BASE-FX SFP)
- • PoE budget: 240W max @ 52-54V DC input / 160W max @ 48-51V DC input
- • PoE output per port: 90W (802.3bt), 95W (PoH), 36W (802.3at)
- • Switch fabric: 16Gbps; throughput: 11.9 Mpps @ 64 bytes; MAC table: 4K; jumbo frame: 9K
- • Dimensions: 56 × 86.1 × 135 mm; weight: 777g
Key Features
Supports 802.3bt Type 4 PoE++ (up to 95W) with 4-pair power delivery and PoH compatibility for high-power devices. It features dual redundant 48–54V DC inputs with failover protection and real-time PoE usage LEDs (80W/160W/240W). Built in an IP30 aluminum enclosure with fanless design, DIN-rail/wall mounting, and protection against ±6KV ESD and ±6KV surge. It supports fiber SFP uplinks (multi-mode and single-mode up to 120 km) and operates in harsh industrial environments with full compliance and stability testing.
Technical Context
The IGS-824UPT is an industrial PoE switch designed for high-power applications such as PTZ cameras, POS systems, AIO terminals, digital signage, and PoE lighting. It features 4 × 802.3bt PoE++ ports with a 240W total budget, dual redundant power inputs for continuous operation, and a fanless design for improved reliability in harsh environments. Two SFP uplink ports support fiber connectivity up to 120 km, making it suitable for large-scale industrial or surveillance networks, with full 802.3bt Type 4 compatibility for next-generation PoE devices.
Installation Notes
DIN-rail or wall-mount industrial switch with IP30 aluminum enclosure (56 × 86.1 × 135 mm, 777 g) designed for extreme environments (-40°C to 75°C). It features dual redundant 48–54V DC inputs with fault alarm support and fanless operation for high reliability. Supports up to 240W PoE budget (up to 95W per port via 802.3bt/PoH), with SFP fiber uplinks (100FX/1000X), ESD/surge protection, and Cat5e/6 cabling for full PoE performance.
| Hardware Specifications | |
|---|---|
| Copper Ports | 6 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| PoE Injector Ports | Four ports with 802.3bt PoE++ injector function (Port-1 to Port-4) |
| SFP Slots | 2 1000BASE-SX/LX/BX SFP interfaces Compatible with 100BASE-FX SFP |

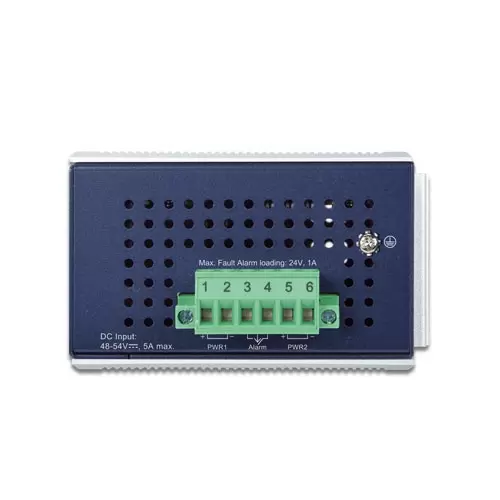

| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2 |
| Power Requirements | 48~54V DC, 5A max. Redundant power with reverse polarity protection function |
| Power Consumption | Max. 2.24 watts/7.64BTU (System on) Max. 5.2 watts/17.74BTU (Ethernet Full Loading) Max. 252 watts/860BTU (Ethernet + PoE Full Loading) |
| Dimensions (W x D x H) | 56 x 86.1 x 135 mm |
| Weight | 777g |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail kit and wall-mount kit |
| ESD Protection | 6KV |
| Switch Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 16Gbps |
| Throughput (packet per second) | 11.9Mpps@64bytes |
| Address Table | 4K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Jumbo Frame | 9Kbytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3bt Power over Ethernet Plus Plus type 4 PSE Backward compliant with 802.3at Power over Ethernet Plus PSE |
| PoE Power Supply Type | 802.3bt/PoH End-span/Mid-span |
| PoE Power Output | Max. 90 watts to 802.3bt PoE++ PD Max. 95 watts to PoH PD Max. 36 watts to 802.3at PoE+ PD |
| Power Pin Assignment | Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Power Budget (max.) | 240 watts maximum@52-54V DC input 160 watts maximum@48-51V DC input |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3az Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3bt Power over Ethernet Plus Plus PSE IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
