Planet - IPOE-470-12V - Industrial 4-port 10/100/1000T 95W 802.3bt PoE++ Injector Hub w/ 12V Booster, 240 Watts PoE Budget
Product Overview
The Planet IPOE-470-12V is an industrial 4-port 802.3bt PoE++ injector hub featuring built-in 12–54V DC to 54V power boost technology, delivering up to 95W per port with a 240W total PoE budget across 4 × 10/100/1000BASE-T data inputs and 4 × PoE++ outputs. It provides End-span + Mid-span power delivery on all four pairs, includes PoE usage LEDs (80W/160W/240W) for real-time load monitoring, and operates reliably across a wide temperature range of -40°C to 75°C for harsh industrial environments.
Key Configuration
• Ports: 4 × RJ45 Data In, 4 × RJ45 PoE++ Out.
• PoE standard: 802.3bt Type-4, PoH, Force (DIP switch selectable per port).
• PoE output: 95W (PoH), 90W (802.3bt), 60W (Force), 36W (802.3at).
• PoE budget: 60W @ 12–23V, 120W @ 24–47V, 240W @ 48–54V.
• Power input: Redundant 12–54V DC via 6-pin terminal block (reverse polarity protection).
• Dimensions: 50 × 87.8 × 135 mm; weight: 679 g.
Key Features
The IPOE-470-12V is an industrial PoE++ injector that adds 802.3bt capability to any non-PoE switch by injecting power on all four pairs (End-span + Mid-span). It features a 12–54V DC to 54V boost converter, allowing operation from standard industrial power supplies (12V, 24V, or 48V) without requiring specialized 54V sources. DIP switches per port select between BT/PoH mode (95W) for 802.3bt devices or Force mode (60W) for non-standard PDs.
Technical Context
PoE budget scales with input voltage: 240W at 48–54V powers four 60W devices, while 60W at 12V supports one 60W device. The unit features redundant power inputs via a 6-pin terminal block with fault alarm output, ensuring continuous operation. System consumption ranges from 2.52–3.6W, with full PoE load drawing 72–251W depending on input voltage. PoE usage LEDs indicate 80W, 160W, and 240W load levels.
Installation Notes

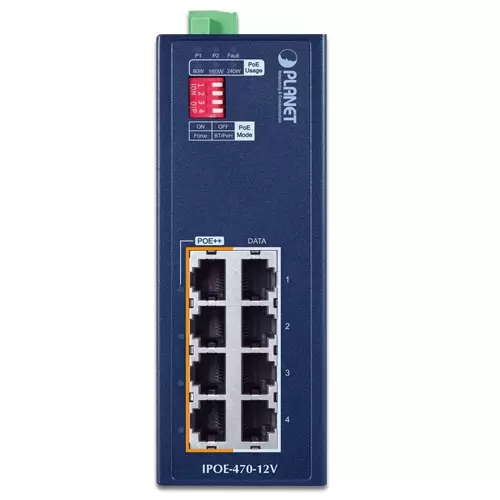

The IP30 metal enclosure (DIN-rail or wall-mount) operates from -40°C to 75°C with 5–90% RH and stores from -40 °C to 75°C, backed by contact 6KV / air 8KV ESD and 6KV surge protection. LEDs indicate power input status, fault alarm, PoE usage, and per-port PoE-in-use. The injector connects between the switch and PDs over Cat5e/6 up to 100m, and is TAA compliant.
| Hardware Specifications | |
|---|---|
| Copper Ports | 4-pair 10/100/1000BASE-T RJ45 ■ Data input port 1 to Port 4 ■ Data + PoE output port 1 to Port 4 |

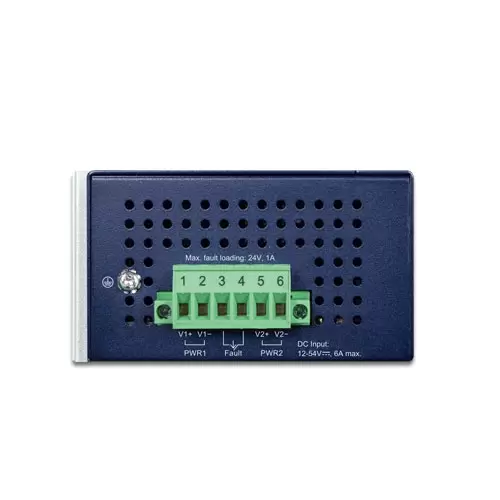

| Connector | Removable 6-pin terminal block Pins 1 and 2 for Power 1 Pins 5 and 6 for Power 2 Pins 4 and 4 for fault alarm |
| Data Rate | 10/100/1000Mbps |
| Power Requirements | IPOE-470: 48~54V DC, redundant power with reverse polarity protection IPOE-470-12V: 12~54V DC, redundant power with reverse polarity protection |
| Power Requirements (Ethernet Full Loading) | IPOE-470: System ON without loading 48V DC: 1.92 watts/6.6BTU 54V DC: 2.16 watts/7.4BTU Full loading with PoE 48V DC: 241 watts/822.3BTU 54V DC: 244 watts/832.6BTUIPOE-470-12V: System ON without loading 12V DC: 2.52 watts/8.6BTU 24V DC: 3.6 watts/12.3BTU 48V DC: 3.36 watts/11.5BTU 54V DC: 3.24 watts/11.1BTU Full loading with PoE 12V DC: 72 watts/245.7BTU 24V DC: 131 watts/447BTU 48V DC: 249 watts/849.6BTU 54V DC: 251 watts/856.5BTU |
| DIP Switch | Per PoE port Off: BT/PoH – 802.3bt PoE++/PoH + Legacy 95W PoE output ON: Force – 60w PoE output |
| Dimensions | 50 x 87.8 x 135 mm (W x D x H) |
| Weight | IPOE-470: 537g IPOE-470-12V: 679g |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| LED Indicator | System: Power 1 (Green) Power 2 (Green) Fault (Red) PoE Usage: 80W/160W/240W (Amber) 802.3bt PoE++ Port: PoE-in-use x 1 (Amber) |
| ESD Protection | 6KV |
| Surge Protection | 6KV |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 1000BASE-T: 4-pair UTP Cat. 5e, 6 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE++, 4-pair type 4 PSE Backward compatible with IEEE 802.3at PoE+ PSE |
| PoE Power Supply Type | 802.3bt PoE++/PoH/Force End-span + Mid-span 802.3at PoE+ End-span/Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Power Output | Max. 90 watts to 802.3bt PoE++ PD Max. 95 watts to PoH PD Max. 60 watts to force-powered PD Max. 36 watts to 802.3at PoE+ PD |
| PoE Power Budget (max.) | IPOE-470: 120W@48V DC input 240W@52V-54V DC input IPOE-470-12V: 60W@12V-23V DC input 120W@24V-47V DC input 240W@48-54V DC input |
| Number of devices that can be powered | 4 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
