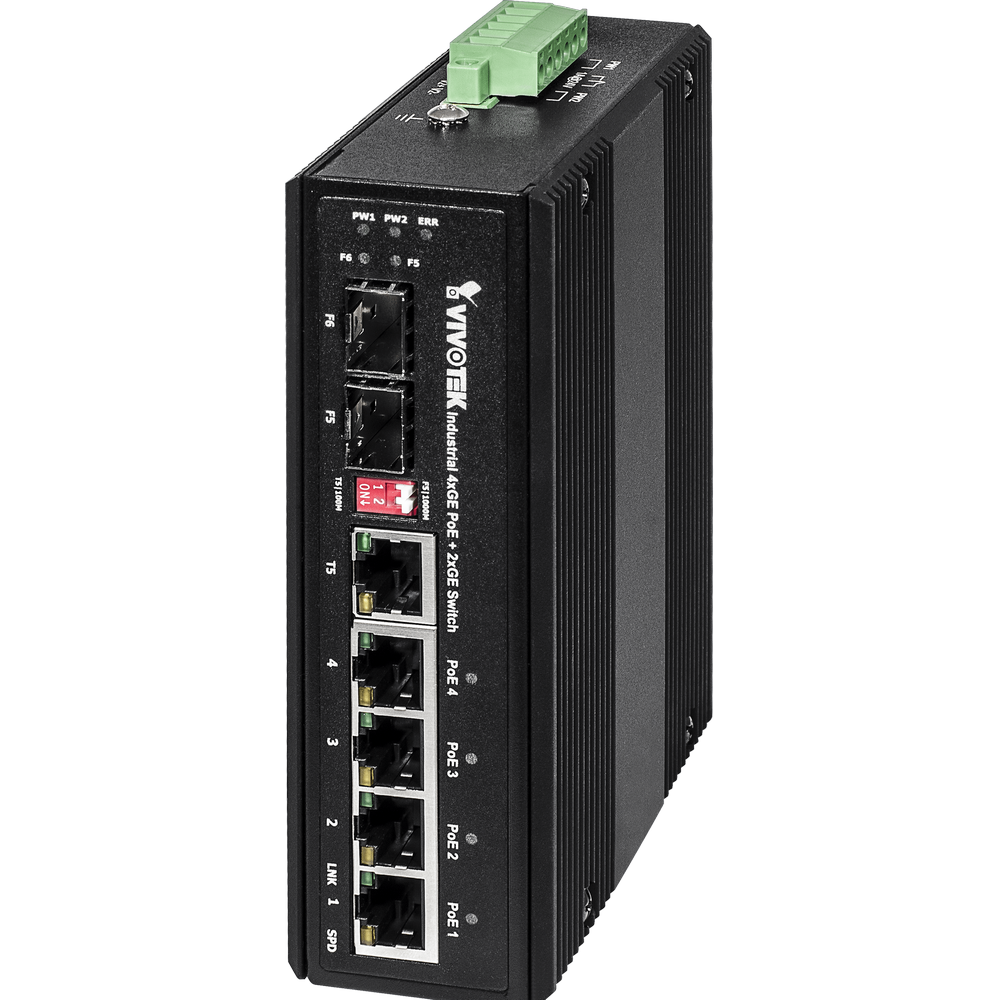

Vivotek - AW-IHT-0601 - Industrial 4XGE POE+2XGE SWITCH SFP 12V-56V
Part number:
AW-IHT-0601
Price:
Industrial 4XGE POE+2XGE SWITCH SFP 12V-56V: Super Voltage Booster 12~56VDC input, 4 port 802.3at 30W POE 10/100/1000M + 1 port 10/100/1000M SFP/TX Combo + 1 port 100/1000M SFP, -40°C to 75°C
Features:
Hardware Specifications:
- Ethernet Ports: 4 x Fast Ethernet (RJ45), 1 x Gigabit Ethernet (SFP) 1 x Combo Gigabit Ethernet (RJ45/SFP)
- PoE Ports: 4
- Resolution: Megapixel/D1/VGA
- Compression: MJPEG/MPEG-4/H.264/H.265
- Compatible Cameras: VIVOTEK Network Cameras
- Power Requirement: Redundant Dual 12V-56VDC Power Input Removable Terminal Block
- Power Consumption: 24VDC~56VDC: 126W, 12VDC: 71W
- LED Display: Power, Error, LAN, PoE
- Dimensions: 142 (L) x 105 (W) x 43 (H) mm
- Weight: 0.68 kg (1.5 lbs)
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F) with 5~95% (Non-condensing)
What's Included: QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit - Warranty: 2 Years
Power over Ethernet Specifications:
- Filtering/Forwarding Rates: 10Mbps, 100Mbps, 1000Mbps
- Switch Throughput: N/A
- Per Port PoE Power Output: 30W Max
- Total PoE Power Budget: 120W
- Transmission Method: Store & Forward
- PoE Power Supply Type: End-Span
- Power Pin Assignments: 1/2(+), 3/6(-)
- Regulation Compliance: CE, C-Tick, FCC, LVD, VCCI
- Standards Compliance: IEEE 802.3 10-BASE-T Ethernet, IEEE 802.3u 100-BASE-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
| Model | AW-IHT-0601 |
| IP Camera Compatibility | |
| Video Resolution | Megapixel/D1/VGA |
| Video Compression | MJPEG/MPEG-4/H.264/H.265 |
| Compatible Camera List | VIVOTEK Network Cameras |
| Ethernet | |
| Gigabit Ethernet (RJ45) | 4 |
| Gigabit Ethernet (SFP) | 1 |
| Combo Gigabit Ethernet (RJ45/SFP) | 1 |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) | Supported |
| IEEE 802.3x Flow Control (Full-Duplex Flow Control) | Supported |
| IEEE 802.3af Power over Ethernet | Supported |
| IEEE 802.3at Power over Ethernet Plus | Supported |
| Ethernet Performance | |
| MAC Address | 1 K |
| Buffer Memory | 128 KB |
| Transmission Method | Store and Forward |
| Backplane | 12 Gbps |
| Jumbo Frame | 9KB |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Filtering/Forwarding Rates | |
| 10Mbps | 14,880 pps |
| 100Mbps | 148,000 pps |
| 1000Mbps | 1,488,000 pps |
| Transmission Media | |
| 10Base T | Cat. 3, 4, 5 UTP/STP |
| 100Base TX | Cat. 5, 5e UTP/STP |
| 1000Base T | Cat. 5e, 6, 7 UTP/STP |
| It is highly recommended to use standard Cat. 5e, 6, 7 cables which are compliant with the 3P/ETL standard. | |
| PoE Function | |
| Number of PoE Out Ports | 4 |
| PoE Power Output | Per Port 56VDC, Max. 30W |
| 802.3at/af Standard Compatible Yes | |
| Over Current Protection | Supported |
| Circuit Shorting Protection | Supported |
| Total PoE Power Budget | 24VDC~56VDC: 120W |
| 12VDC: 65W | |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Yes |
| General | |
| LED Indicators | Power, Error, LAN, PoE |
| Power Input | PW1: 12 ~ 56VDC |
| PW2: 12 ~ 56VDC | |
| Redundant Power Backup | |
| Power Consumption | 24VDC~56VDC: 126W |
| 12VDC: 71W | |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1 A @ 24VDC |
| Housing | Rugged Metal, IP30 Protection |
| Installation | DIN-rail Mounting and Wall Mounting |
| Dimensions | 142 (L) x 105 (W) x 43 (H) mm |
| Weight | 0.68 kg |
| Operating Temperature | -40°C ~ 75°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing) |
| Safety Certifications | CE, C-Tick, FCC, VCCI, LVD |
| Stability Testing | EN 55022/24 |
| EN 50155 | |
| EN 55011 | |
| EN 50121-3-2 | |
| EN 50121-4 | |
| EN 50155 / EN 60068-2-6 | |
| EN 50155 / EN 60068-2-27 | |
| EN 50155 / EN 60068-2-32 | |
| Accessories | |
| Optional Accessories | Industrial SFP Transceiver |
| SFP-1000-MM85-X5I: MMF, 0.5 km, -40°C ~ 85°C | |
| SFP-1000-MM13-02I: MMF, 2 km, -40°C ~ 85°C | |
| SFP-1000-SM13-10I: SMF, 10 km, -40°C ~ 85°C | |
| SFP-1000-SM13-40I: SMF, 40 km, -40°C ~ 85°C | |
| Optional Power Supply | Din Rail Power Supply: |
| NDR-120-48: | |
| 90 ~ 264VAC In, 48 ~ 54VDC/120W Out, -20°C ~ | |
| 70°C | |
| Wall Mount Power Supply: | |
| HLG-120H-54: | |
| 90 ~ 305VAC In, 54VDC/120W Out, -40°C ~ 70°C |
