Planet - WGS-4215-8P2S - Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Wall-mount Managed Switch
Part number:
WGS-4215-8P2S
Price:
Product Overview

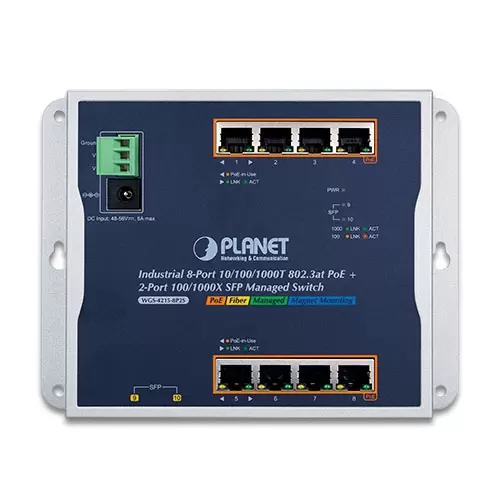

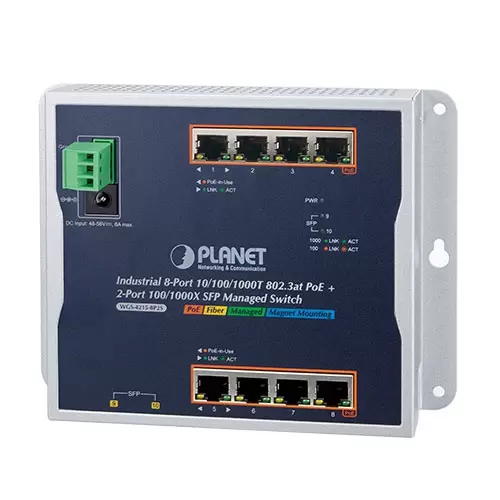

The Planet WGS-4215-8P2S is a managed industrial wall-mount PoE+ switch featuring 8 × 10/100/1000BASE-T 802.3at PoE+ ports with a total 200W power budget and 2 × 100/1000BASE-X SFP uplink slots. It delivers 20Gbps switching capacity with 14.8 Mpps forwarding performance and supports IPv4/IPv6 dual-stack management, advanced Layer 2+ switching functions, and CloudViewer remote monitoring.
Key Configuration
- • Copper ports: 8 × 10/100/1000BASE-T RJ45 with 802.3af/at PoE+ (End-span, pins 1/2+,3/6-)
- • SFP slots: 2 × 100/1000BASE-X SFP (supports 100/1000Mbps dual mode)
- • PoE budget: 200W max; per-port output: 36W max (802.3at) / 15.4W (802.3af)
- • Switch fabric: 20Gbps non-blocking; throughput: 14.8 Mpps @ 64 bytes
- • Dimensions: 178 × 25 × 134 mm; weight: 640g
Key Features
The WGS-4215-8P2S is a compact industrial PoE switch designed for wall-box deployments in IoT, surveillance, and building automation networks. It features a 200W PoE budget for powering multiple IP devices and supports advanced Layer 2/Layer 3 functions, including VLAN segmentation, QoS prioritization, STP/RSTP/MSTP redundancy, multicast control, and full security features like 802.1X, ACL, DHCP snooping, and IP source protection.
Installation Notes
Dimensions 178 × 25 × 134 mm (7.01 × 0.98 × 5.28 in.), weight 640g (1.41 lb). Remote management is available via Web, Telnet, SNMP, SSH, SSL, and CloudViewer app, with SFP uplinks supporting long-distance fiber connections up to 120 km. Built for harsh environments, it operates from -40°C to 75°C and offers flexible front-access installation with wall, magnetic, or DIN-rail mounting options.
| Hardware Specifications | |
| Copper Ports | Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port | Eight with 802.3at PoE+ injector function (Port-1 to Port-8) |
| SFP/mini-GBIC Slots | Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Switch Throughput@64 bytes | 14.8Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10KB |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | Power LED: Power (Green) PoE Port (Port-1 to Port-8): PoE-in-Use (Orange) LNK/ACT (Green) 100/1000X SFP Ports (Port 9 to Port 10): 1000 LNK/ACT (Green) 100 LNK/ACT (Orange) |
| Connector | Removable 3-pin terminal block for power input – Pin 1/2 for Power (Pin 1: V+ /Pin 2: V-) – Pin 3 for earth ground DC power jack with 2.0mm central pole |
| Power Requirements | 48~56V DC, 5A (max.) terminal block power input 48~56V DC, 5A (max.) DC jack power input Note: The two power input interfaces dont support power redundant function. |
| Power Consumption/ Dissipation | Max. 210 watts/716 BTU |
| Dimensions (W x D x H) | 178 x 25 x 134 mm |
| Weight | 640g |
| ESD Protection | Contact Discharge 6KV DC Air Discharge 8KV DC |
| Enclosure | Metal |

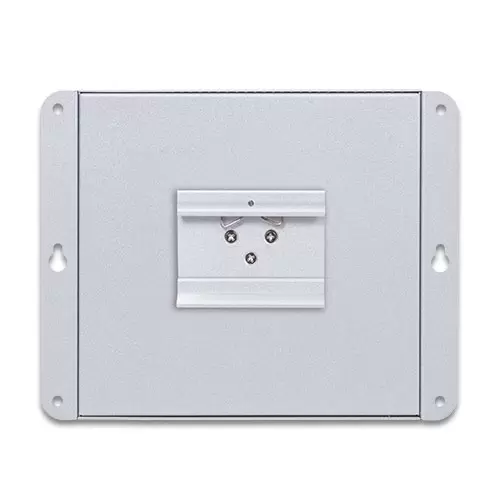

| Installation | Fixed wall mount, magnetic wall mount or DIN rail |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at Power over Ethernet PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~56V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard – Per port 50V~56V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 200 watts (depending on power input) |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 7 |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 1 groups with 2 SFP ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU guard, BPDU filtering and BPDU forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| QoS | 8 mapping IDs to 8 level priority queues – Port Number – 802.1p priority – DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Security | IEEE 802.1X port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS/TACACS authentication IP-MAC port binding MAC filtering Static MAC address DHCP snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Storm control support Broadcast/Unknown unicast/Unknown multicast |
| Management Functions | |
| Basic Management Interfaces | Web browser; Telnet; SNMP v1, v2c, v3 Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP Remote/Local Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Accessories | |
| Standard Accessories | Quick Installation Guide x 1 3-pin Terminal Block Connector x 1 Wall-mounted Kit x 1 DIN-rail Kit x 1 Magnet Kit x 1 RJ45 Dust Cap x 8 SFP Dust Cap x 2 |
