Planet - IFGS-1022HPT - IP30 Industrial 8-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP combo Ethernet Switch
Product Overview

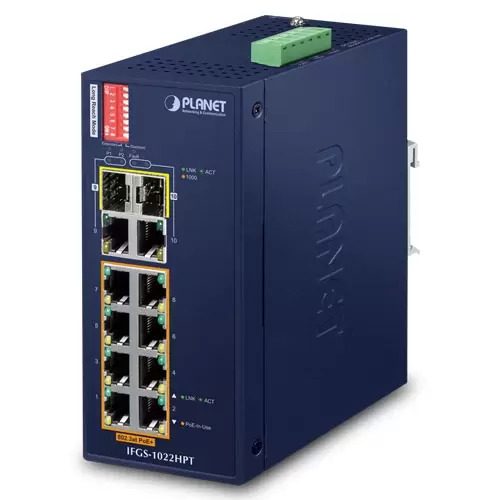

The IFGS-1022HPT is an industrial unmanaged PoE+ switch featuring 8 Fast Ethernet 802.3at ports delivering up to 30W per port, along with 2 Gigabit TP/SFP combo uplink ports. It supports a total PoE budget of up to 240W using dual 48–56V DC power inputs and provides a 5.6Gbps switching capacity. Standard and Extended operating modes allow PoE and data transmission up to 250m at 10Mbps for long-distance deployments.
Key Configuration
• Ports: 8 × 10/100BASE-TX PoE+ RJ45 (802.3af/at End-span), plus 2 × Gigabit combo ports (RJ45 or 1000BASE-X SFP).
• PoE budget: up to 240W with dual 48–56V DC input; 30W max per port.
• Switching performance: 5.6Gbps non-blocking fabric with 4.1 Mpps forwarding rate and 16K MAC table.
• Dimensions: 72 × 107 × 161 mm.
• Weight: 1,034g.
Key Features
Features Standard and Extend modes, allowing PoE and data transmission up to 250m at 10Mbps while maintaining 30W output per port. Designed with an IP30 aluminum enclosure, DIN-rail and wall-mount options, dual redundant power inputs, and a fault alarm relay for power failure notifications. Industrial-grade protection includes 6KV ESD and surge immunity, while 10K jumbo frames and flow control enhance network efficiency. CE/FCC certified and TAA compliant.
Technical Context
The IFGS-1022HPT is an industrial PoE+ switch for long-distance device deployment. Extend mode enables up to 250m reach at 10Mbps for remote cameras and sensors. Dual Gigabit combo uplinks support copper or fiber backhaul, while dual redundant power inputs improve reliability. IP30 metal housing and 240W PoE budget support up to eight powered devices.
Installation Notes
Industrial IP30 switch with DIN-rail or wall mounting. Operates from -40°C to 75°C with up to 241W full PoE load and dual redundant power inputs with alarm relay. Compact 72 × 107 × 161 mm design, 1.03 kg weight. Includes SFP uplinks, DIP switch for Standard/Extend mode, and full LED status monitoring for power, PoE, and ports.
| Hardware Specifications | |
| Fast Ethernet Copper Ports | Eight 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Port-1 to Port-8) |
| Gigabit Ethernet Copper Ports | Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (shared with Port-9 and Port-10) |
| SFP/mini-GBIC Slots | Two 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10) |
| PoE Injector Port | Eight ports with 802.3af/802.3at PoE+ injector function (Port-1 to Port-8) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 5.6Gbps/non-blocking |
| Switch Throughput@64 bytes | 4.1Mpps @64 bytes |
| MAC Address Table | 16K entries |
| Shared Data Buffer | 4Mb SRAM |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10 Kbytes |

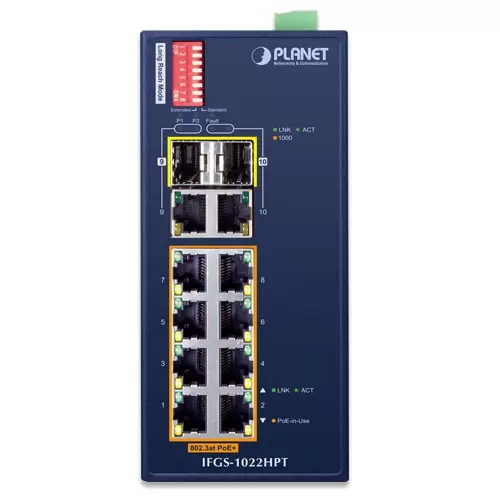

| DIP Switch (Port-1 to Port-8) | Standard mode: 30-watt PoE transmit distance of 100m at speed of 10/100Mbps Extend mode: 30-watt PoE transmit distance of 250m at speed of 10Mbps |
| LED | 3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Red : Power Fault Alarm 2 x LED for PoE Copper Port (Port-1~Port-8): Green: LNK/ACT (10/100Mbps) Orange: PoE-In-Use 2 x LED for 10/100/1000T Copper Port (Port-9~Port-10): Green: LNK/ACT Orange: 1000 2 x LED for per mini-GBIC interface (Port-9~Port-10) Orange: LNK/ACT Green: 1000 |

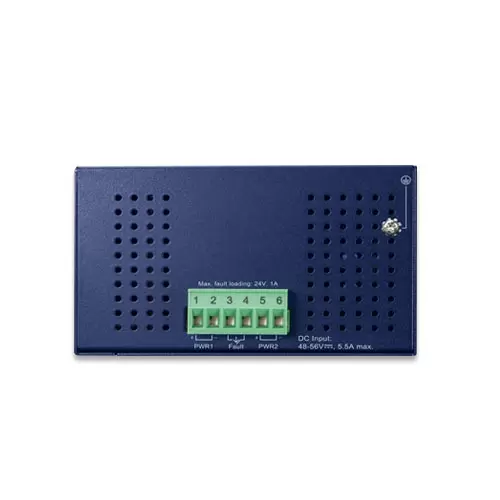

| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1 Pin 3/4 for power fault alarm Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC |
| Power Requirements | 48~56V DC, 5.5A (max.) (>51V DC for PoE output recommended) |
| Power Consumption/ Dissipation | 6.4 watts, 21BTU (Standby without PoE function) at DC 56V power input 8.2 watts, 27BTU (Full loading without PoE function) at DC 56V power input 241 watts, 832BTU (Full loading with PoE function) at DC 56V power input |
| Dimensions (W x D x H) | 72 x 107 x 161 mm |
| Weight | 1034g |
| ESD Protection | 6KV DC |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail kit and wall-mount kit |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~51V DC (depending on the power supply), max. 15.4 watts IEEE 802.3at Standard – Per port 51V~56V DC (depending on the power supply), max. 30 watts |
| PoE Power Budget | Dual power input: maximum 240W (depending on power input) |
| Max. Number of Class 2 PDs | 8 |
| Max. Number of Class 3 PDs | 8 |
| Max. Number of Class 4 PDs | 8 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
