TRENDnet’s Industrial AC1200 Wireless Dual Band Gigabit PoE+ Router, model TI-WP100, features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network. It supports dual-WAN hybrid connections (Ethernet for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users). Four gigabit PoE+ ports enable users to power access points, IP cameras, and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W PoE power budget. The Industrial AC1200 gigabit router is equipped with an IP30 rated metal housing, and designed to operate within a wide temperature range of -30° – 70° C (-22° – 158° F) for industrial environments.

Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. This wireless router features advanced management, QoS, VLAN, VPN, and other capabilities to ensure optimal performance, scalability, and protection of your network. Intelligently manage your offices’ web access with our advanced contenting filtering tool, increase employee productivity, and finally take control of your internet.

Dual-WAN

Connect up to two separate WAN internet connections (Ethernet & WiFi) to efficiently load-balance traffic, or configure for redundancy using the WAN fail-over mode.

PoE+

Four gigabit PoE+ ports power APs, IP cameras, and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W PoE power budget.

AC1200 WiFi

Features dual-band AC1200 WiFi to maximize device networking speeds; it’s equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network.

Features:

• Industrial AC1200 Dual-Band Wireless
• 4 x Gigabit PoE+ ports, 1 x Gigabit WAN port
• PoE power budget: 120W@48V DC input, 120W@24V DC input
• PoE alive check restarts unresponsive PoE powered devices
• PoE power scheduling, power limit, and port priority
• Hardened IP30 rated metal housing
• Operating temperature range of -30° – 70° C (-22° – 158° F)*
• Up to 8 SSIDs per band
• SSID to VLAN mapping
• Wireless WAN support (WAN load balancing/failover between wired Ethernet WAN and Wireless WAN)
• 802.1Q/Port-based VLAN support
• Inter-VLAN routing
• IPsec & SSL VPN (OpenVPN) support
• Redundant power inputs with overload current protection

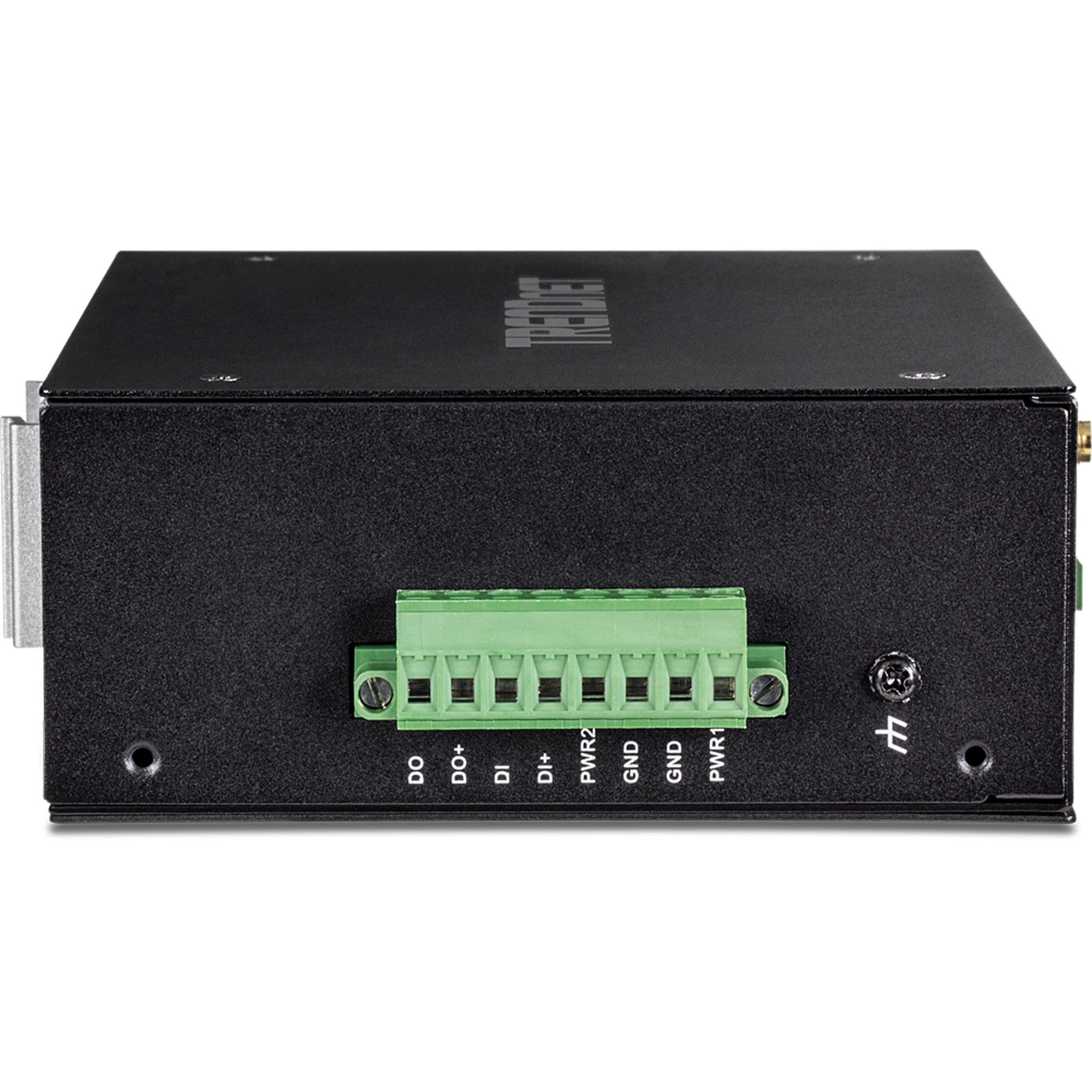

• Digital input/output
• Modbus serial port and virtual COM support
• Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S12024, TI-S24048)
• Optional Magnetic WiFi Antenna base, model TEW-LB101 (sold separately)
• NDAA / TAA compliant
