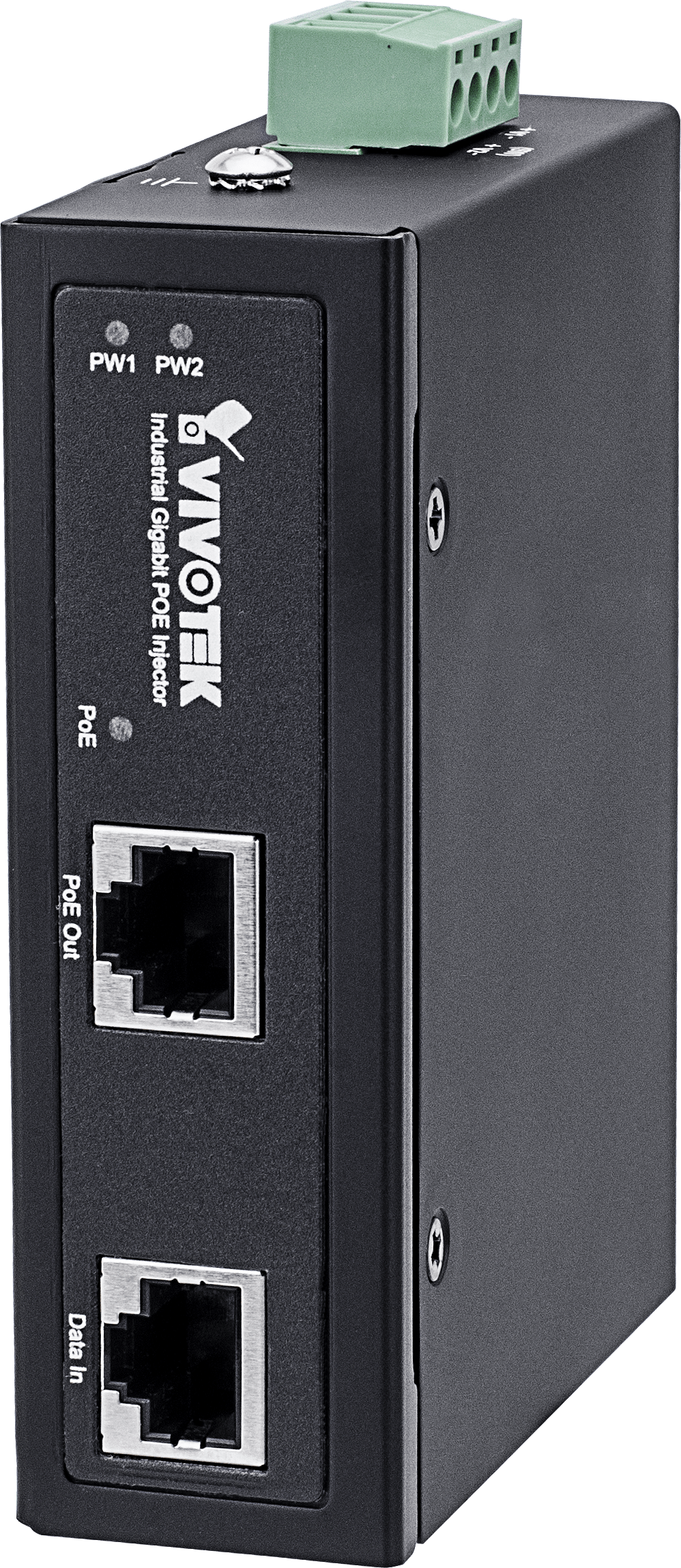

Vivotek - AW-IHT-0100 - Industrial Gigabit PoE Injector -40°C ~ 75°C (-40°F ~ 167°F)
Part number:
AW-IHT-0100
Price:
Industrial Gigabit PoE Injector -40°C ~ 75°C (-40°F ~ 167°F).
Features:
Compatibility
- Resolution
- Compression
- Compatible Cameras:
- Gigabit Ethernet (RJ45): 1
- Standards: IEEE 802.3 10-BASE-T (Ethernet), IEEE 802.3u 100-BASE-TX (Fast Ethernet), IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet), IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
PoE Function
- Number of PoE Out Ports 1
- Max. PoE Output Power/per Port 56VDC/30W
- 802.3at/af Standard Compatible Yes
- Over Current Protection Supported
General
- LED Indicators Power, PoE
- Power Input
- Redundant Dual 48V-56VDC Power Input, Removable Terminal Block (No include power supply)
- Power Consumption 32W
- Housing Rugged Metal, IP30 Protection
- Installation DIN-rail Mounting and Wall Mounting
- Dimensions 103.5 (L) x 32 (W) x 81.5 (H) mm
- Weight 0.14 kg
- Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity Operating: 5 ~ 95% (Non-condensing) Storage: 5 ~ 95% (Non-condensing)
- Safety Certifications CE, C-Tick, FCC, VCCI, LVD
- Included Accessories QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
| Model | AW-IHT-0100 |
| IP Camera Compatibility | |
| Video Resolution | Megapixel/D1/VGA |
| Video Compression | MJPEG/MPEG-4/H.264/H.265 |
| Compatible Camera List | VIVOTEK Network Cameras |
| Ethernet | |
| Gigabit Ethernet (RJ45) | 1 |
| Standards | |
| IEEE 802.3 10-BASE-T (Ethernet) | Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) | Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) | Supported |
| IEEE 802.3af Power over Ethernet | Supported |
| IEEE 802.3at Power over Ethernet Plus | Supported |
| Transmission Media | |
| 10Base T | Cat. 3, 4, 5 UTP/STP |
| 100Base TX | Cat. 5, 5e UTP/STP |
| 1000Base T | Cat. 5e, 6, 7 UTP/STP |
| *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| PoE Function | |
| Number of PoE Out Ports | 1 |
| Max. PoE Output Power/per Port | 56VDC/30W |
| 802.3at/af Standard Compatible | Yes |
| Over Current Protection Supported | |
| Circuit Shorting Protection | Supported |
| Total PoE Power Budget | 30W |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE PD Auto Detection | Yes |
| General | |
| LED Indicators | Power, PoE |
| Power Input | Redundant Dual 48V-56VDC Power Input |
| Removable Terminal Block | |
| (No include power supply) | |
| Power Consumption | 32W |
| Housing | Rugged Metal, IP30 Protection |
| Installation | DIN-rail Mounting and Wall Mounting |
| Dimensions | 103.5 (L) x 32 (W) x 81.5 (H) mm |
| Weight | 0.14 kg |
| Operating Temperature | -40°C ~ 75°C (-40°F ~ 167°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating: 5 ~ 95% (Non-condensing) | |
| Humidity | Storage: 5 ~ 95% (Non-condensing) |
| Safety Certifications | CE, C-Tick, FCC, VCCI, LVD |
| Accessories | |
| Included Accessories | QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit |
