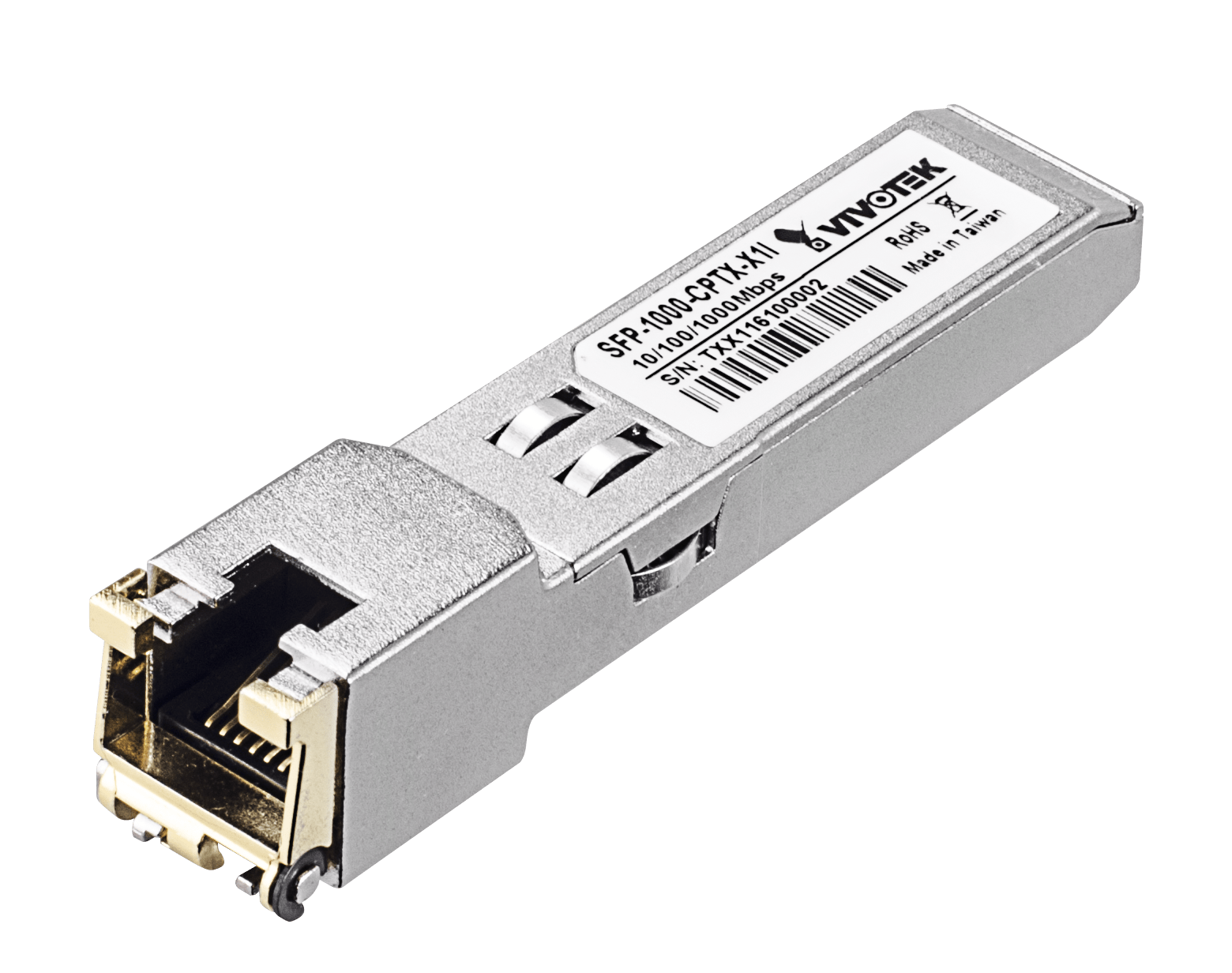

Vivotek - SFP-1000-CPTX-X1I - Industrial Gigabit SFP to RJ45 Module
Part number:
SFP-1000-CPTX-X1I
Price:
Industrial Gigabit SFP to RJ45 Module.
Features:
- Data Rate Gigabit 1.25G
- Type SFP
- Standard IEEE 802.3ab 1000BASE-T
- Auto-Negotiation Support
- Auto-MDI/MDI-X Support
- Voltage 3.3V
- Transmission Range 100m
- Cable Type Cat.5e/Cat.6
- Connector RJ45
- Dimensions (L x W x H) 68.3 x 13.7 x 13.8 mm
- Operating Temperature -40℃ ~ 85℃
- Storage Temperature -40℃ ~ 85℃
- Humidity 5 ~ 90% (non-condensing)
- MSA Compliant Yes
| Model | SFP-1000-CPTX-X1I |
| Data Rate Gigabit | 1.25G |
| Type | SFP |
| Standard | IEEE 802.3ab 1000BASE-T |
| Auto-Negotiation | Support |
| Auto-MDI/MDI-X | Support |
| Voltage | 3.3V |
| Transmission Range | 100m |
| Cable Type | Cat.5e/Cat.6 |
| Connector | RJ45 |
| Dimensions (L x W x H) | 68.3 x 13.7 x 13.8 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Storage Temperature | -40℃ ~ 85℃ |
| Humidity | 5 ~ 90% (non-condensing) |
| MSA Compliant | Yes |
