Planet - IPOE-E302 - IP67-rated Industrial 1-Port 802.3bt PoE++ to 2-Port 802.3at/bt PoE++ Extender (-40~75 degrees C, IK10 impact protection), 3 x waterproof cable glands included
Product Overview

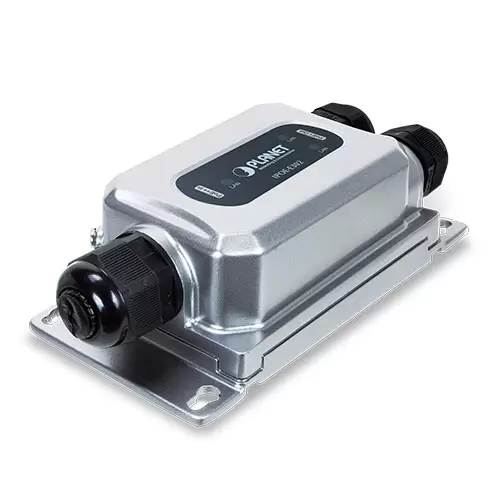

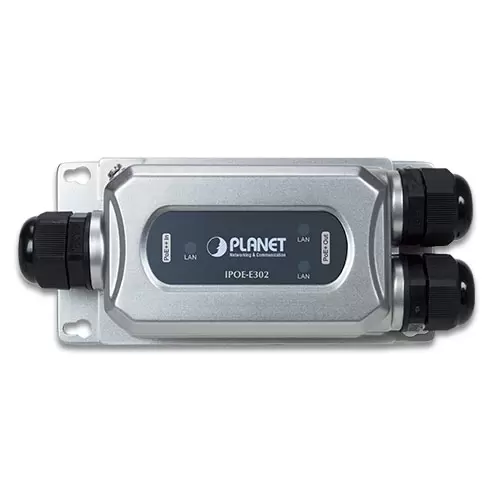

The Planet IPOE-E302 is an industrial IP67-rated 1-port 802.3bt PoE++ to 2-port 802.3at/bt PoE++ Gigabit extender, capable of receiving up to 95W PoE input and delivering a 60W PoE output budget across two ports. Housed in an IK10-impact-protected aluminum case, includes three waterproof cable glands for outdoor direct-attach applications, extending PoE range beyond the standard 100m limitation.
Key Configuration

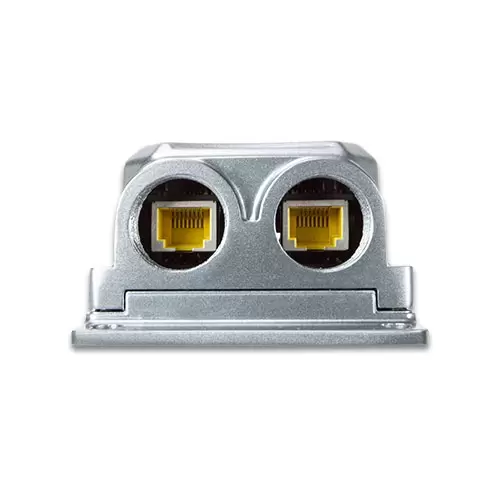

- • Ports: 1 × 10/100/1000BASE-T PoE++ input (802.3bt Type 4 PD), 2 × 10/100/1000BASE-T PoE++/PoE+ outputs (mid-span PSE, pins 4/5+,7/8-)
- • PoE input: 50-57V DC, max 95W (802.3bt PoE++ Type 4 or PoH)
- • PoE output per port: 48-56V DC, max 30W (802.3at/bt)
- • PoE power budget: 60W max (with 802.3bt input) / 65W (with PoH input) / 30W (with 802.3at input); no support with 802.3af input
- • Switch fabric: 6 Gbps; throughput: 4.46 Mpps @ 64 bytes; MAC table: 2K; jumbo frame: 9K
- • Dimensions: 150 × 43.8 × 72.94 mm (w/o glands); weight: 339g (w/o glands), 372g (with three glands)
Key Features
The device features a rugged IP67 aluminum enclosure with IK10 impact resistance, making it suitable for outdoor deployment. It includes three waterproof RJ45 cable glands and a wall-mount, plug-and-play design with no configuration required. It extends PoE coverage up to 200 m (100 m + 100 m) using store-and-forward switching. Protection includes 6KV surge, 6KV contact ESD, and 8KV air ESD. Maximum power consumption is 97W under full load. The unit is FCC Class A and CE compliant and tested for shock, vibration, and free-fall durability.
Technical Context
The IPOE-E302 extends PoE networks beyond the 100 m Ethernet limit by functioning as a PoE repeater, receiving power as a PD from an 802.3bt PoE++ source and redistributing it as a PSE across two output ports. It supports 802.3bt Type 4 and PoH, enabling compatibility with high-power PoE systems and delivering up to 60W across connected devices such as cameras or Wi-Fi APs. Its IP67-rated enclosure protects against dust and water immersion up to 1 meter, while IK10 impact resistance withstands up to 20 joules of force.
Installation Notes
Measures 150 × 43.8 × 72.94 mm without cable glands (169.85 mm length with glands) and weighs 339 g, increasing to 372 g with all glands installed. It requires an 802.3bt PoE++ Type 4 (95W) or PoH input and is not compatible with 802.3af power sources. Each output port delivers up to 30W for 802.3at/bt devices, using Cat5e/6 cabling up to 100 m per segment.
| Hardware Specifications | |
|---|---|
| Network Connector | PoE in Port
PoE out Port |
| Switch Architecture | Store-and-Forward switch architecture |
| MAC Address Table | 2K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 6Gbps |
| Switch Throughput | 4.46Mpps @ 64Bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| ESD Protection | Air 8KV DC Contact 6KV DC |
| Surge Protection | 6KV |
| Enclosure | IP67-rated and IK10 aluminum metal case |
| Installation | Wall-mount ear |
| LED Display | Link/ACT LED x 3 |
| Dimensions (W x D x H) | 150 x 43.8 x 72.94 mm (W x D x H) 169.85 x 43.8 x 72.94 mm (W x D x H), with cable gland |
| Weight | 339g 372g (with three waterproof cable glands) |
| Power Consumption | 97 watts/331.6BTU (Full loading with PoE function) |
| Power over Ethernet | |
| PoE Standard | PoE in Port
Per PoE out Port |
| PoE Power | PoE in Port
Per PoE out Port |
| Power Pin Assignment | PoE in Port
Per PoE out Port |
| PoE Power Budget | 60 watts (max.) @ 802.3bt PoE++ input 65 watts (max.) @ PoE input 30 watts (max.) @ IEEE 802.3at PoE+ input No support @ IEEE 802.3af PoE input |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
