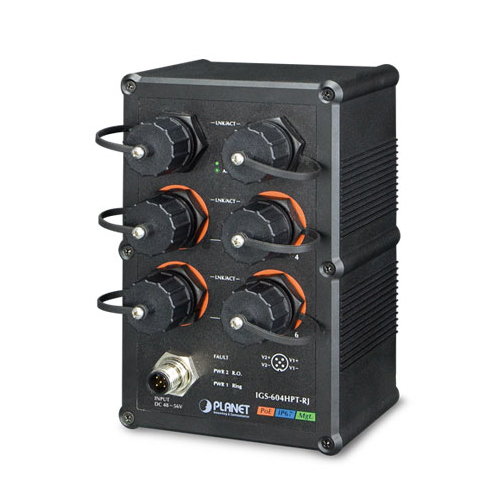

Planet - IGS-604HPT-RJ - Industrial IP67-rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch (-40~75C)

Ideal for Industrial Environments

The IGS-604HPT-RJ, a Modbus TCP Industrial Managed Ethernet Switch enclosed in an IP67-rated industrial case. The unit comes equipped with 4-port 10/100/1000T 802.3at PoE, 2-port 10/100/1000T, and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges usually found on plant floors or in curb-side traffic control cabinets.The Modbus TCP switch also supports IEEE 1588v2 Transparency, ERPS Ring, and DIDO. The IGS-604HPT-RJ can be easily mounted on a DIN rail or wall to take up less space. Each of the four Gigabit PoE+ ports provide 36-watts of power for a total total power budget of up to 144 watts.

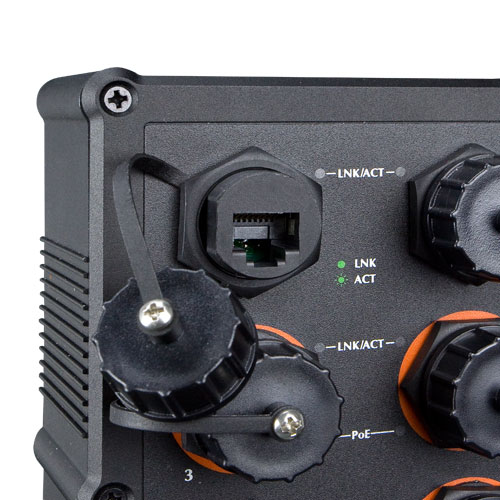

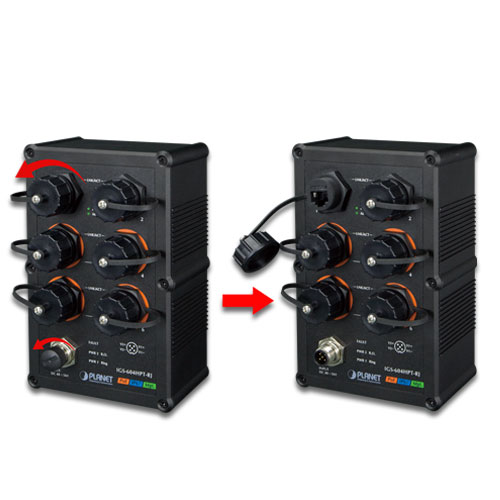

Waterproof and Dustproof RJ45 Ethernet Connector and Shielded Plug

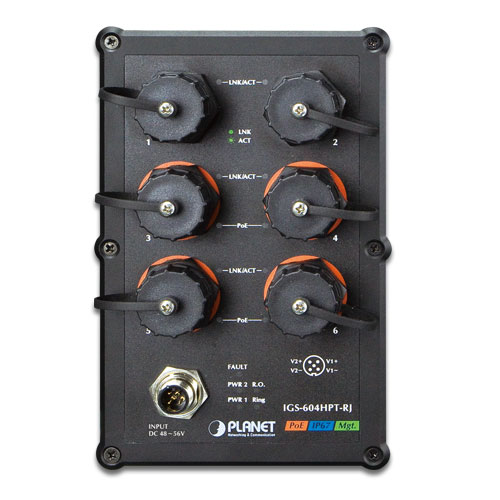

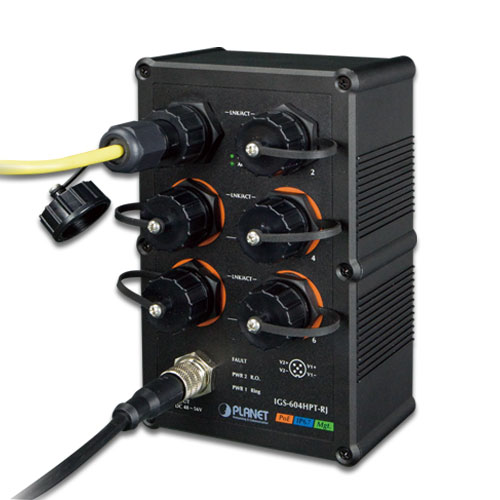

The IGS-604HPT-RJ is equipped with a 6-port 10/100/1000BASE-T auto-negotiation waterproof and dustproof RJ45 connector and an additional 4 IEEE 802.3at PoE+ port (Port 3 to port 6).  Each PoE port provides 36-watts of PoE output. These shielded RJ45 make standard UTP cables waterproof and dustproof. When connected to the waterproof and dustproof RJ45 connector, the shielded ports provide tight and strong connections. With an industrial protection rating of IP67, the IGS-604HPT-RJ is capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Environmentally Hardened Design

The IGS-604HPT-RJ is dust resistant and water resistant and operates under the temperature range from -40 to 75°C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Reliable Dual Power Input

The IGS-604HPT-RJ features a strong dual power input system (Dual 48V~56V DC) incorporated into customer’s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to ensure the IGS-604HPT-RJ remains powered on via DC Power 2.

Centralized Power Management for Gigabit Ethernet PoE Networking

To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the IGS-604HPT-RJ features high-performance Gigabit IEEE 802.3af PoE (up to 15.4 watts) and IEEE 802.3at PoE+ (up to 36 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone, PoE Wireless AP and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras and even box type IP cameras with a built-in fan and heater for high power consumption.

The IGS-604HPT-RJ’s PoE capabilities also help to reduce deployment costs for network devices. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.

Built-in Unique PoE Functions for Surveillance Management

As a managed PoE Switch for surveillance network, the IGS-604HPT-RJ features intelligent PoE management functions:

• PD Alive Check
• Scheduled Power Recycling
• SMTP/SNMP Trap Event Alert
• PoE Schedule

Automatically Activates Inactive Devices

The IGS-604HPT-RJ can be configured to monitor a connected PD (Powered Device) status in real time via ping action. Once the PD stops working and it is without response, the IGS-604HPT-RJ will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PDs power source, thus reducing administrator management burden.

Scheduled Power Rebooting

The IGS-604HPT-RJ allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert function, the IGS-604HPT-RJ further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.

PoE Schedule for Energy Saving

The IGS-604HPT-RJ can be used to build any PoE network including VoIP and wireless LAN. The IGS-604HPT-RJ is an energy-efficient device with smart PoE management features. The PoE schedule function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and resources.

Redundant Ring Technology

The IGS-604HPT-RJ supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain, simple Ring network, the recovery time of data link can be as fast as 20ms.

IPv6/IPv4 Dual Stack

The unit supports both IPv6 and IPv4 protocols. The IGS-604HPT-RJ helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The IGS-604HPT-RJ not only provides ultra high transmission performance, and excellent layer 2 and layer 4 technologies. In addition, the unit also features powerful layer 3 IPv4/IPv6 VLAN routing features which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed but simple network. .

Robust Layer 2 Features

The IGS-604HPT-RJ can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the IGS-604HPT-RJ allows the operation of a high-speed trunk to combine with multiple fiber ports and supports fail-over as well.

Powerful Security

The IGS-604HPT-RJ offers a comprehensive layer 2 to layer 4 Access Control List (ACL) for providing maximum security to the edge. This feature can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user, and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The IGS-604HPT-RJ also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks in considerably less time and with less effort than before.

Excellent Traffic Control

The IGS-604HPT-RJ features powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limits that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

Efficient and Secure Management

With built-in Web-based management interface, the IGS-604HPT-RJ L2+ Managed Switch offers an easy-to-use, platform-independent management and configuration facility which includes Web and SNMP management interfaces. The SNMP can be managed via any management software based on the standard of SNMP Protocol. To reduce learning time, the unit offers Cisco-like command via Telnet. The unit also features secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.
