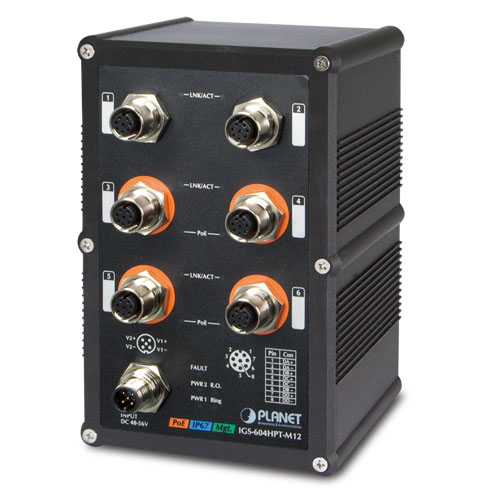

Planet - IGS-604HPT-M12 - Industrial IP67 Rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch (-40~75C)
Part number:
IGS-604HPT-M12
Price:
IGS-604HPT-M12 Industrial IP67 Rated 4-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Managed Ethernet Switch (-40~75C)
The IGS-604HPT-M12 is a Modbus TCP Industrial Layer 2 Managed 6-Port PoE Ethernet Switch with an IP67-rated industrial case
Industrial IP67 PoE Switch
The IGS-604HPT-M12 L2+ Managed Switch offers easy-to-use, platform-independent management and configuration via Web or CLI. The switch offers Cisco-like commands ensuring users don’t need to learn new console commands. The SNMP can be managed via any software that supports the SNMPv2/3 protocol. SNMP configuration is secured with packet encryption using SSH or SSL.

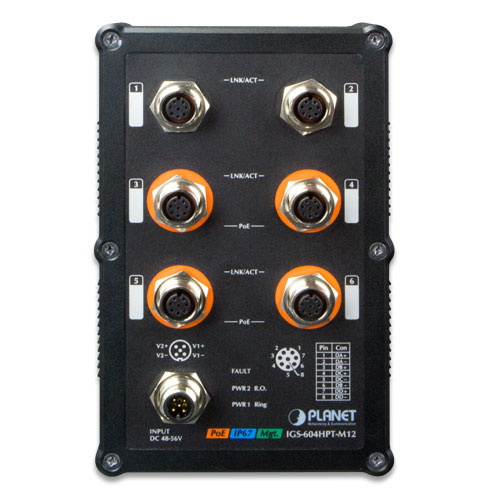

M12 Connectors
The IGS-604HPT-M12 features 6 auto-negotiated 10/100/1000BASE-T ports with waterproof and dustproof M12 connectors. Each PoE port provides 36-watt PoE output, and 4 of the ports support IEEE 802.3at PoE+ (Port 3 to Port 6). The M12 connectors provide tight and strong connections and guarantee stable Ethernet operation performance under high vibration and shock environments.
Features:
- Ports: 6 10/100/1000TX M12 Shared 4 10/100/1000T PoE+
- Console Port: No
- PoE Ports: 4
- PoE Power Budget: 144W Max.
- Standard: 802.3af/at PoE/PSE
- Type: Managed
- Operating Temperature: -40 to 75°C
- Supports: IEEE 1588v2 Transparency, ERPS Ring, DIDO
- TAA Compliant
| Hardware Specifications | |
| Copper Ports | 6 x M12, 8-pin A-Coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports |
| PoE Injector Port | 4 ports with 802.3at/af PoE injector function (Port-3 to Port-6) |
| Power Connector | 1 x M12, 5-pin A-Coded male connector |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 12Gbps/non-blocking |
| Throughput | 8.9Mpps@64bytes |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4M bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9K bytes |
| Dimensions (W x D x H) | 103 x 68.2 x 163 mm |
| Weight | 1069g |
| Enclosure | IP67 aluminum case |
| Installation | Wall-mount kit and DIN rail kit |
| LED | System: PWR1 (Green), PWR2 (Green), Fault ( Red ) Ring (Green), R.O. (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 2): LNK/ACT (Green) 10/100/1000T RJ45 Interfaces (Port 3 to Port 6): LNK/ACT (Green) PoE-in-Use (Orange) |
| Power Consumption | Max. 165.3 watts/563.7 BTU |
| Power Requirements | Dual 48~56V DC (>53V DC for PoE+ output recommended) |
| ESD Protection | 6KV DC |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/802.3at PoE/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | IEEE 802.3af Standard – Per port 48V~53V DC (depending on the power supply), max. 15.4 wattsIEEE 802.3at Standard – Per port 53V~56V DC (depending on the power supply), max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 144 watts max. (depending on power input) |
| PoE Ability | PD @ 7 watts: 4 units PD @ 15.4 watts: 4 units PD @ 30.8 watts: 4 units |
| Layer 2 Management Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each ports speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged based VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN IP Subnet-based VLAN MVR (Multicast VLAN registration) Up to 255 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk 3 groups with 2 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| QoS | Traffic classification based strict priority and WRR 8-level priority for switching: – Port number – 802.1p priority – 802.1Q VLAN tagging – DSCP/ToS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) snooping, up to 255 multicast groups IGMP querier mode support |
| MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 100Kbps~1000Mbps Egress: 100Kbps~1000Mbps |
| Layer 3 Functions | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Management | |
| Basic Management Interfaces | Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSH/SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP Power over Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Railway Traffic | *EN50155 |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az EEE (Energy Efficient Ethernet) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 80 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standard Accessories | |
| Packet Contents | 1 x 8-pin A-code M12-to-RJ45 UTP cable, 2m 1 x M12 5-pin A-coded female connector power cable, 1.2m 1 x Wall-mount kit 1 x DIN-rail kit 1 x Quick Installation Guide 6 x M12 Female Dust Cap 1 x M12 Power Waterproof Cap |
Name
Description
Size
Downloads
File
Mechanical Drawing
0.6mb
