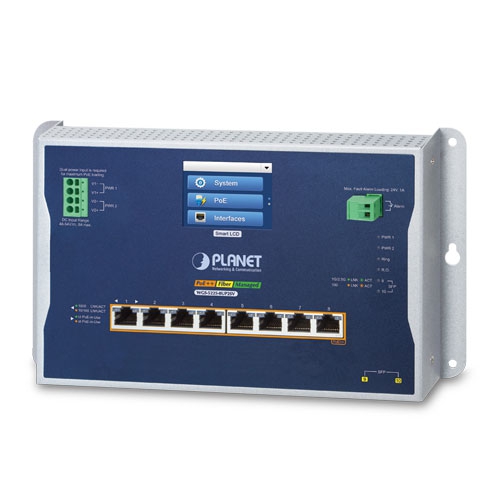

Planet - WGS-5225-8UP2SV - Industrial L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD Touch Screen
Part number:
WGS-5225-8UP2SV
Price:
Product Overview
The WGS-5225-8UP2SV is an industrial managed PoE++ switch with 8 Gigabit 802.3bt ports (up to 95W per port), 2 × 100/1000/2500BASE-X SFP uplinks, and an integrated LCD touch screen. It supports up to 720W PoE budget, 26Gbps switching capacity, IPv4/IPv6 routing, ERPS ring recovery, IEEE 1588v2 PTP, Modbus TCP, and operates from -20°C to 70°C.
Key Configuration
• Ports: 8 × Gigabit 802.3bt PoE++ RJ45 ports with selectable PoE modes, plus 2 × 100/1000/2500BASE-X SFP uplinks.
• PoE budget: Up to 720W with dual 54V power inputs, 360W with a single 54V source.
• Switching performance: 26Gbps fabric with forwarding rates up to 19.345 Mpps.
• Dimensions: 245 × 36 × 140 mm.
• Weight: 1,299g.
Key Features

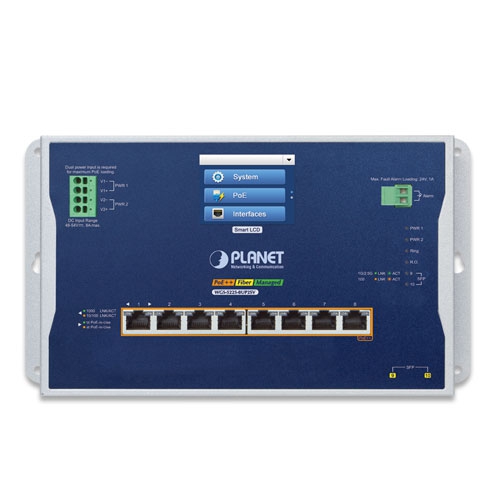

Features an LCD touch screen for local management, diagnostics, and PoE control. Supports up to 95W PoE modes, PD health monitoring, scheduled power cycling, ERPS ring recovery, IPv4/IPv6 routing, IEEE 1588v2 PTP, Modbus TCP, and ONVIF discovery. Industrial IP30 aluminum design with dual redundant DC inputs, alarm relay, and 6KV ESD protection.
Technical Context
Designed for demanding PoE++ environments, it can power up to eight 802.3bt devices simultaneously using its 720W budget. The 2.5G SFP uplinks provide higher-capacity backbone connectivity, while Modbus TCP integration supports industrial automation systems and IEEE 1588v2 enables precise network time synchronization for time-sensitive applications.
Installation Notes
Measuring 245 × 36 × 140 mm and weighing 1.3 kg. Operates from -20°C to 70°C with dual 48–54V DC power inputs and alarm relay support. Provides advanced Layer 2+/Layer 3 features, including up to 4K VLANs, link aggregation, ACLs, and static routing. Supports 100M, 1G, and 2.5G SFP modules, with management via Web, Telnet, SSH, and SNMP. Includes ERPS ring protection and industrial status LEDs for power, PoE, copper, and fiber ports.
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |

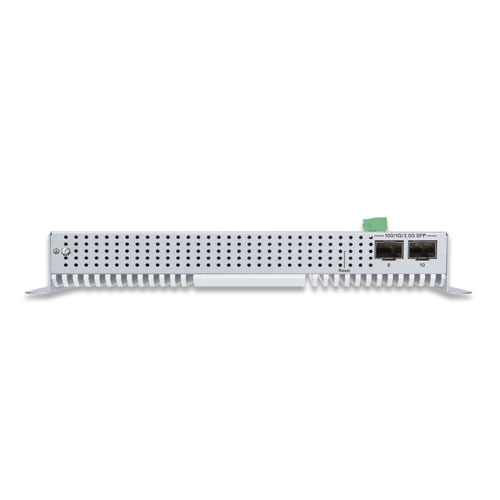

| SFP Slots | 2 100/1000/2500BASE-X SFP interfaces Compatible with 100BASE-FX and 2500BASE-X SFP |
| PoE Injector Port | 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8 |
| RAM | 128MBytes |
| Flash Memory | 64MBytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory Default |
| Connector | 4-pin terminal block for power input – Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-) – Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-) 2-pin terminal block for event alarm |
| Alarm | One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC |

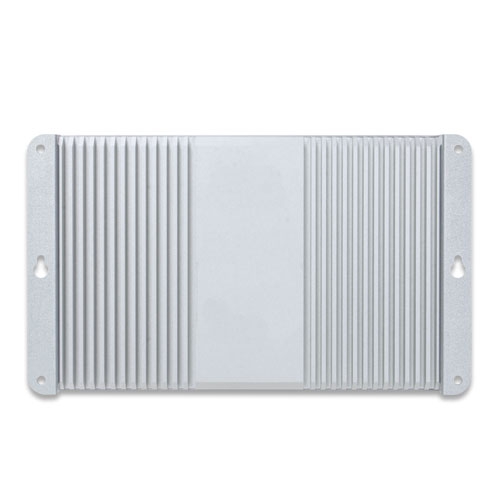

| Enclosure | IP30 aluminum case |
| Installation | Wall-mount |
| Dimensions (W x D x H) | 245 x 36 x 140 mm |
| Weight | 1,299g |
| Power Requirements | 48~54V DC (>52V DC for PoE++ and PoE+ output recommended) Dual power input is required for maximum power loading |
| Power Consumption | Max. 14.72 watts/50.23 7BTU@50V DC input (Power on without any connection) Max. 375 watts/1280BTU@Single 54V DC input (Full loading with 360 watts PoE function) Max. 752 watts/2566BTU@Dual 54V DC input (Full loading with 720 watts PoE function) |
| ESD Protection | 6KV DC |
| LED Indicator | System: – PWR 1(Green) – PWR 2 (Green) – Ring (Green) – Ring Owner (Green) Per 10/100/1000T RJ45 PoE++ Ports: – 802.3bt PoE-in-Use (Green) – 802.3af/at PoE-in-Use (Amber) – 1000 LNK/ACT (Green) – 10/100 LNK/ACT (Amber) Per SFP Interface: – 100 LNK/ACT (Amber) – 1000/2500 LNK/ACT (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 26Gbps/non-blocking |
| Throughput (packet per second) | 19.345Mpps@ 64 bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3bt PoE++ Type-4 PSE Backward compatible with 802.3at PoE+ PSE |
| PoE Power Supply Type | – 802.3bt – UPOE/POH – End-span – Mid-span – Force |
| PoE Power Output | 802.3bt PoE++ – Per port 52V~56V DC (depending on the power supply), max. 90 watts UPoE(PoH) – Per port 52V~56V DC (depending on the power supply), max. 95 watts IEEE 802.3at Standard – Per port 52V~56V DC (depending on the power supply), max. 36 watts Force – Per port 52V~56V DC (depending on the power supply), max. 60 watts |
| Power Pin Assignment | End-span: 1/2 (-), 3/6 (+) Mid-span: 4/5 (+), 7/8 (-) 802.3bt/UPoE: 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-) |
| PoE Power Budget | 48V Power input – 125W maximum (depending on power input) 52~54V Power input – Single power input: 360W maximum (depending on power input) – Dual power input: 720W maximum (depending on power input) ※Dual power input must be the same as DC voltage, like dual 54V |
| Max. number of Class 3 PDs | 8 |
| Max. number of Class 4 PDs | 8 |
| Max. number of Class 8 PDs | 8 |
| PoE Management Functions | |
| Active PoE device alive detects | Yes |
| PoE Power Recycle | Yes, daily or predeinded schedule |
| PoE Schedule | 4 schedule profiles |
| PoE Extend Mode | Yes, max. 160 to 200 meters |
| PoE System Management | System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-temperature threshold alarm PoE usage threshold alarm |
| PoE Port Management | Port Enable/Disable/Schedule PoE mode control – 802.3bt – UPoE – 802.3at End-span – 802.3at Mid-span – Force mode Port Priority |
| Layer 3 Functions | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | Ipv4 software static routing Ipv6 software static routing |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/both Many-to-1 monitor |
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 2 trunk groups with 2 ports per trunk group |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol |
| IGMP Snooping | Ipv4 IGMP (v1/v2 /v3) Snooping Ipv4 IGMP Querier mode support Up to 255 multicast Groups |
| MLD Snooping | Ipv6 MLD (v1/v2) Snooping Ipv6 MLD Querier mode support Up to 255 multicast Groups |
| Bandwidth Control | Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps |
| RING | Supports ERPS, and complies with ITU-T G.8032 Recovery time < 10ms |
| Synchronization | IEEE 1588v2 PTP(Precision Time Protocol) – Peer-to-peer transparent clock – End-to-end transparent clock |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/TOS field in IP packet |
| Security Functions | |
| Access Control List | IP-based ACL/MAC-based ACL ACL based on: – MAC Address – IP Address – Ethertype – Protocol Type – VLAN ID – DSCP – 802.1p Priority Up to 256 entries |
| Security | Port security IP source guard Dynamic ARP inspection Command line authority control based on user level |
| AAA | RADIUS client TACACS+ client |
| Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication Local/RADIUS authentication |
| Management Functions | |
| Basic Management Interfaces | Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMPv3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol NTP PLANET Smart Discovery Utility |
| Event Management | Remote Syslog System log SMTP |
| ONVIF | ONVIF device discovery ONVIF device monitoring Floor Map |
| SNMP MIBs | RFC 1213 MIB-II IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ah OAM IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3367 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU-T G.8032 Ethernet Ring Protection Switching |
| Environment | |
| Operating Temperature | -20 ~ 70 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
