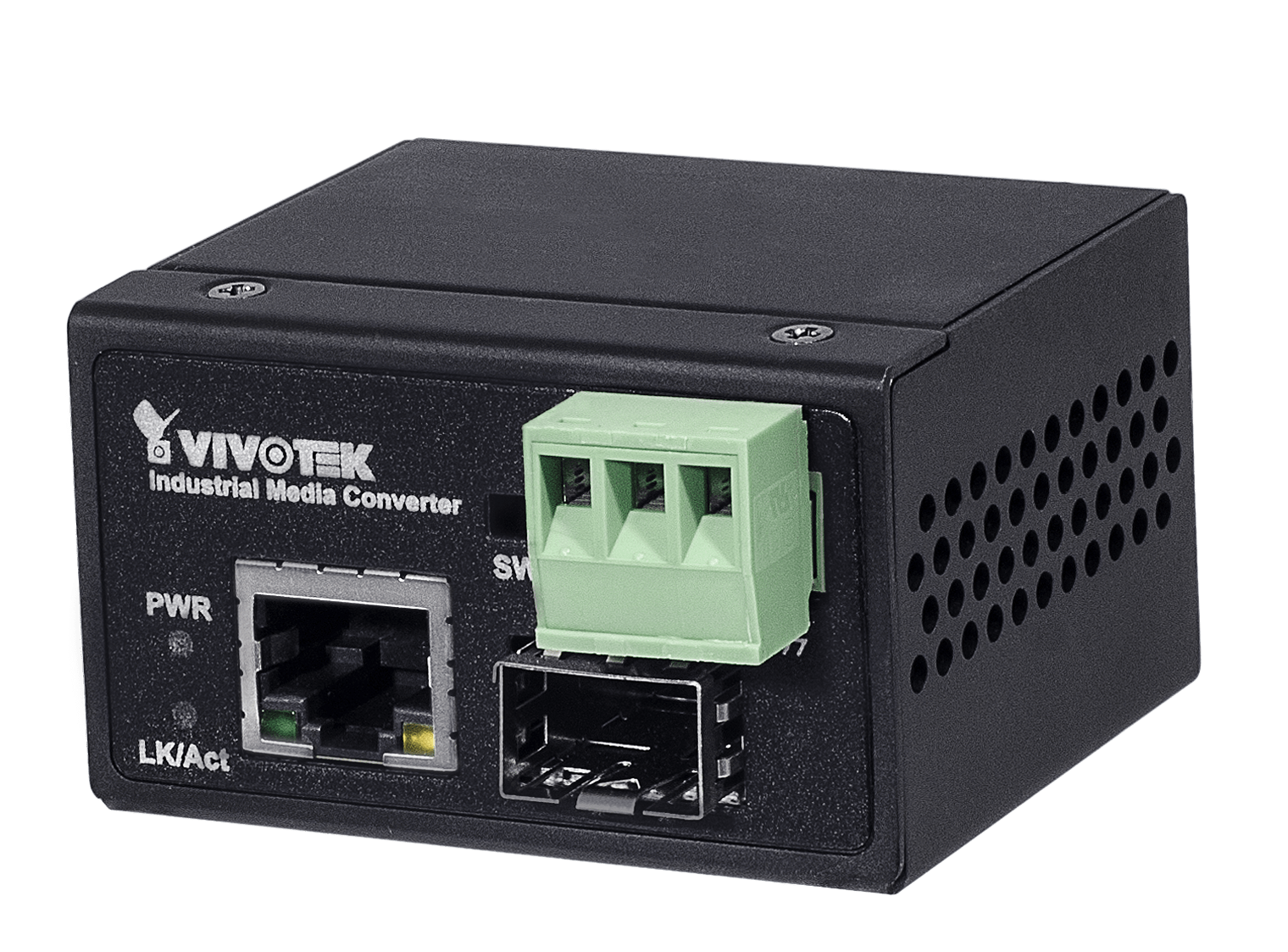

Vivotek - AW-IHS-0202 - Industrial Media Convert SFP

Industrial Media Convert SFP. True Mini Industrial Media Converter, 10/100M RJ45 to 100M SFP, Designed for outdoor CAM enclosure, Din-Rail mount and Panel mount, 18-36VAC/12-60VDC, -40°C to 75°C, 2 Year Warranty.

Features:

IP Camera Compatibility

• Video Resolution Megapixel/D1/VGA
• Video Compression MJPEG/MPEG-4/H.264/H.265
• Ethernet Fast Ethernet 10/100Mbps (RJ45) x1
• Fast Ethernet 100Mbps (Fiber) SFP

Standards

• IEEE 802.3 10-BASE-T (Ethernet) Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
• IEEE 802.3x Flow Control (Full-Duplex Flow Control) Supported

Ethernet Performance

• MAC Address 1K
• Buffer Memory 128 KB
• Transmission Method Store and Forward
• Auto-MDI/MDI-X, Auto-Negotiation Supported

Filtering/Forwarding Rates

• 10Mbps 14,880 pps
• 100Mbps 148,000 pps

Transmission Media

• 10Base T Cat. 3, 4, 5 UTP/STP
• 100Base TX Cat. 5, 5e UTP/STP

General

• LED Indicators Power, LAN, Speed
• Power Input 18V-36VAC or 12V-60VDC Power Input, Removable Terminal Block
• Power Consumption 2W
• Housing IP40 Design, High Graded Aluminum
• Installation DIN-rail Mounting and Wall Mounting
• Dimensions 59 (L) x 49 (W) x 36 (H) mm
• Weight 0.08 kg
• Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
• Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
• Humidity Operating: 5~95% (Non-condensing), Storage: 5~95% (Non-condensing)
• Safety Certifications CE, C-Tick, FCC, VCCI, LVD

Accessories

• Included Accessories QIG, Terminal Block, DIN-rail Brackets, Wall Mount Kit
