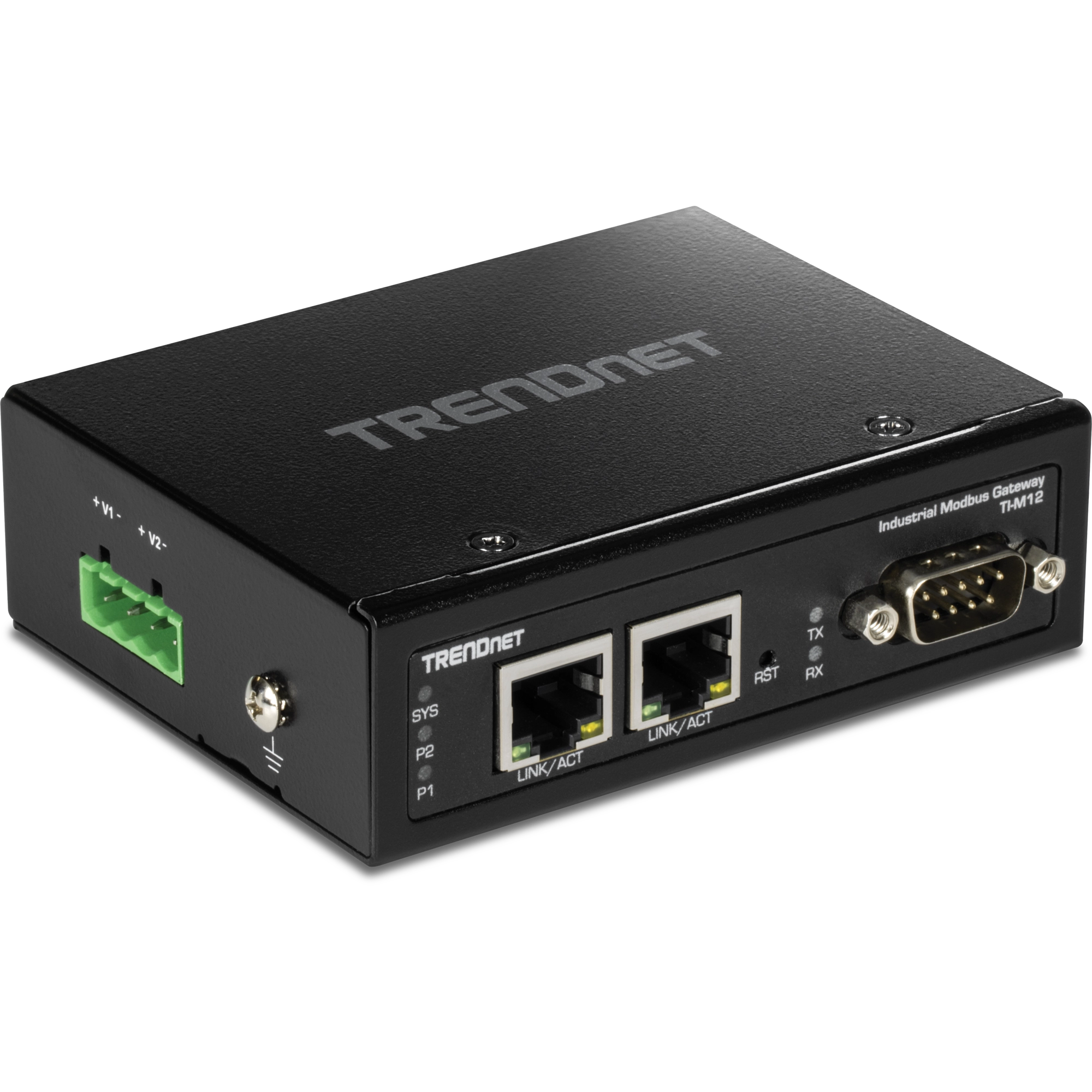

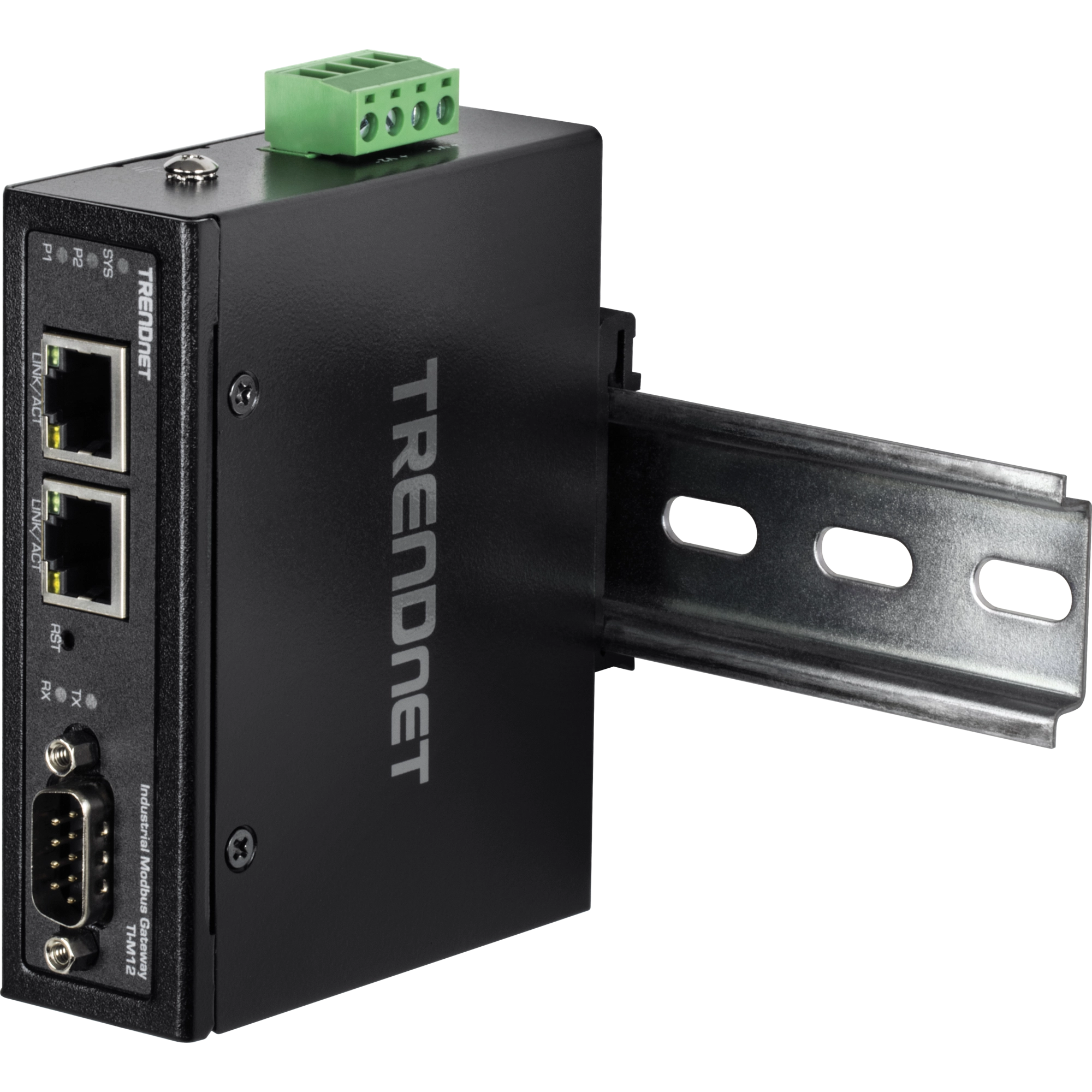

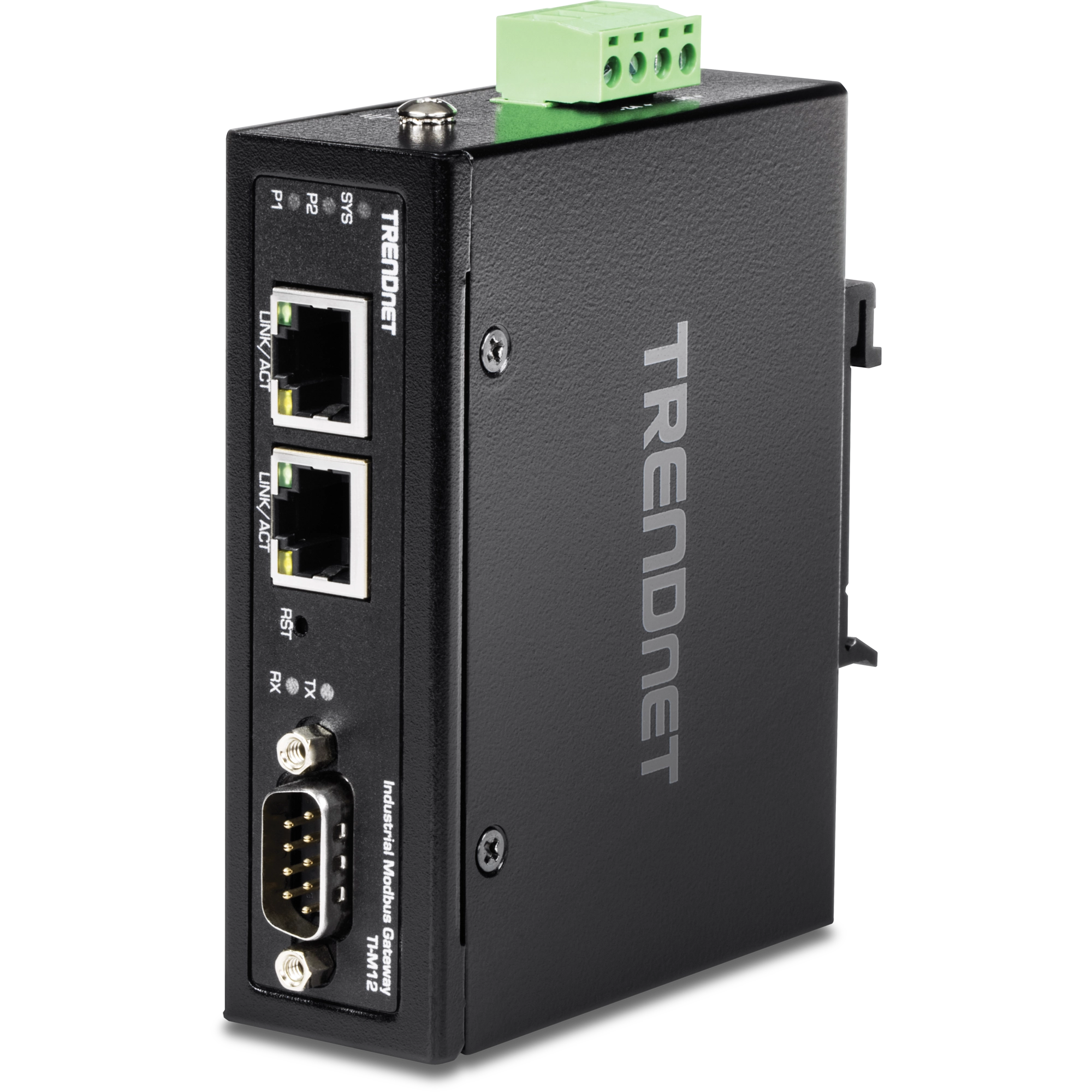

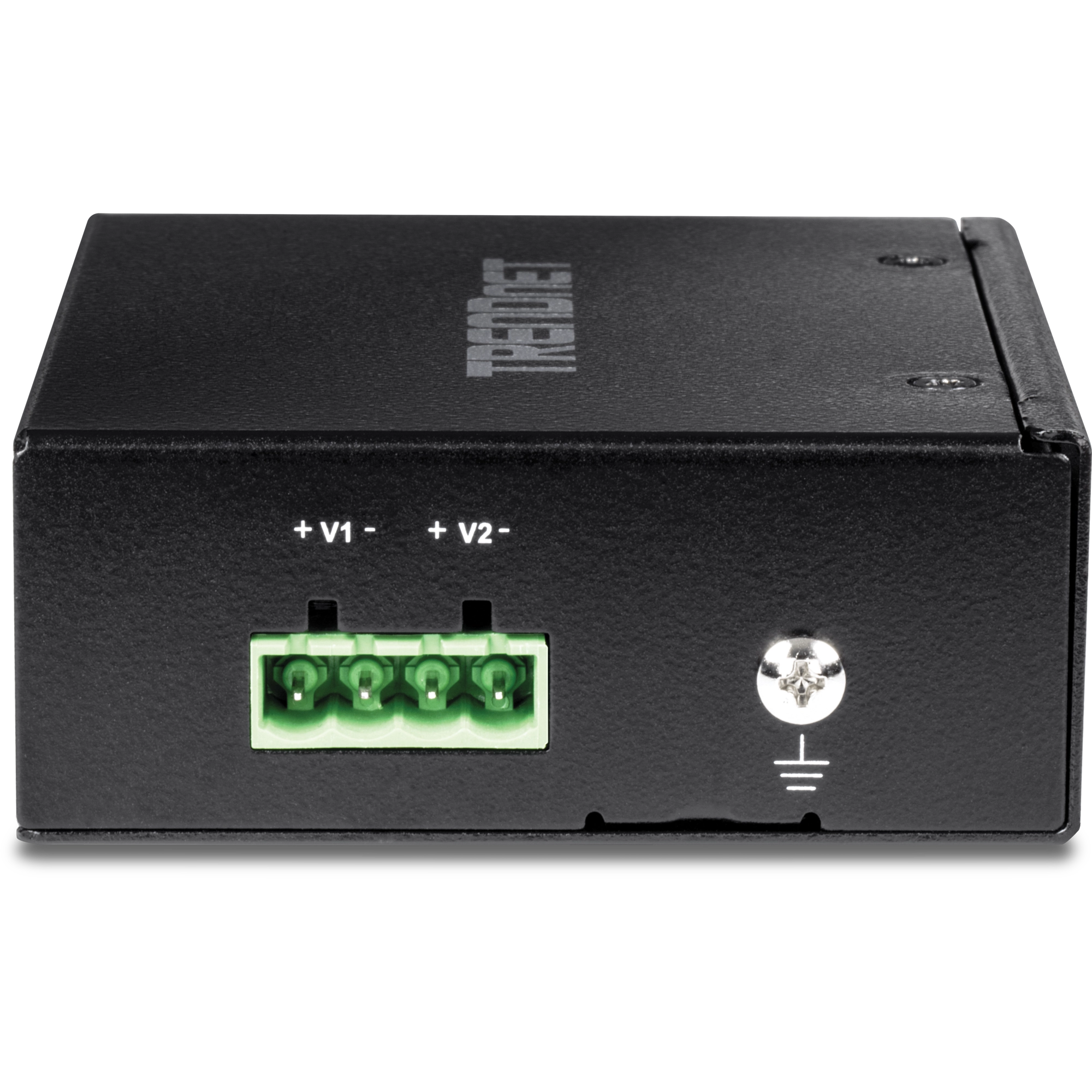

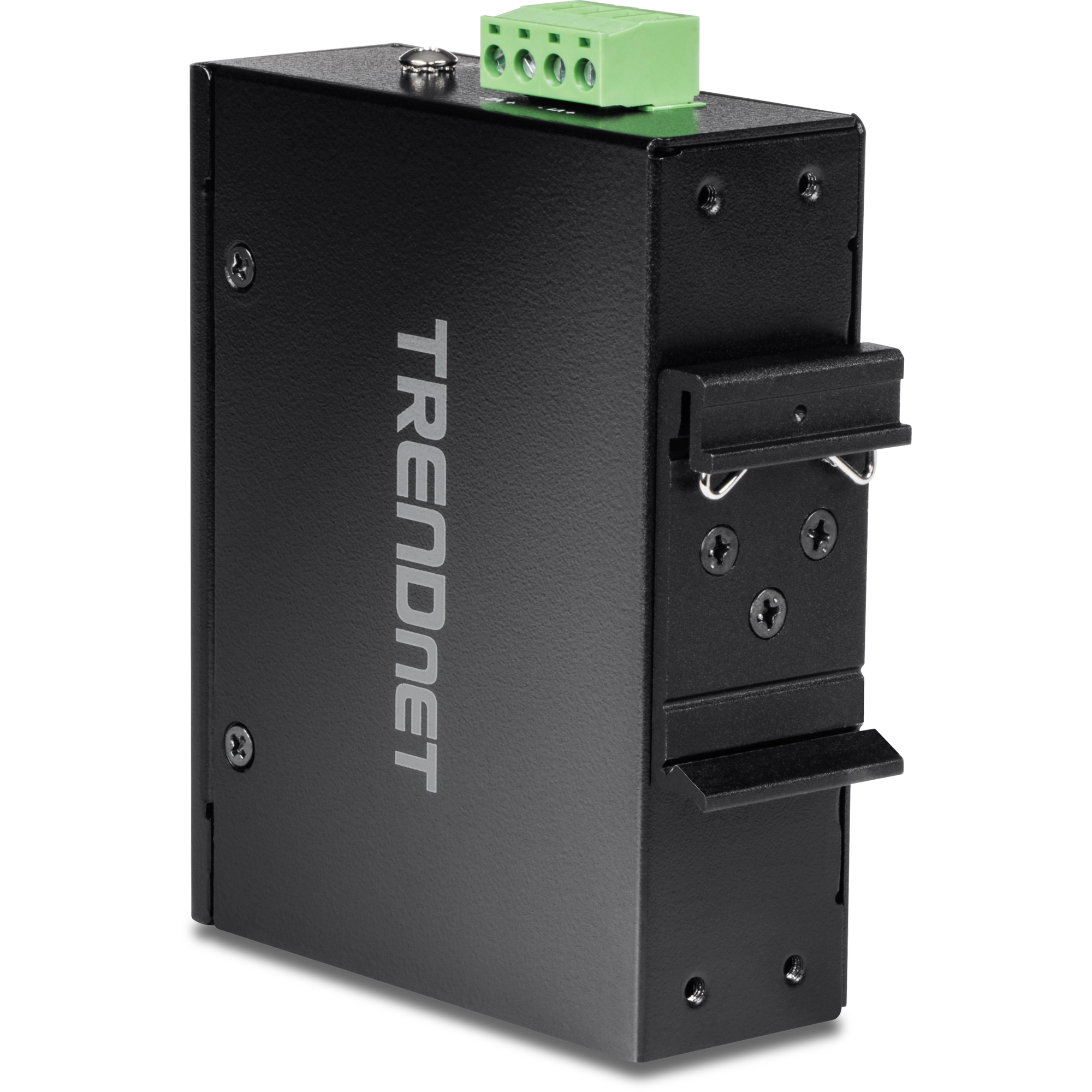

TRENDNET - TI-M12 - Industrial Modbus Gateway

TRENDnet’s Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.

Network

Two fast ethernet ports support distances up to 100m (328 ft.) using Cat5e cabling.

Serial Connector

Easily connect RS-232/RS-422/RS-485 serial devices to the network.

Industrial Design

Designed with a rugged IP30 rated housing, vibration and shock resistance, ESD/EMI/surge protection, and a wide operation temperature range (-40° - 75° C (-40° – 167° F)).

Features:

• 1 x serial port, 2 x Fast Ethernet ports
• Connects RS-232/RS-422/RS-485 serial device, such as a modem, to a network
• Supports up to 32 RS-422/RS-485 TCP serial devices per port
• Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
• Configure via web management or telnet
• Auto-MDI/MDIX, RJ45 port with 10/100Mbps
• Serial port baud rate from 50bps to 921.6Kbps
• Wide operation temperature range -40° - 75° C (-40° – 167° F)
• IP30 rated metal housing
• NDAA / TAA compliant
• Lifetime Warranty*
