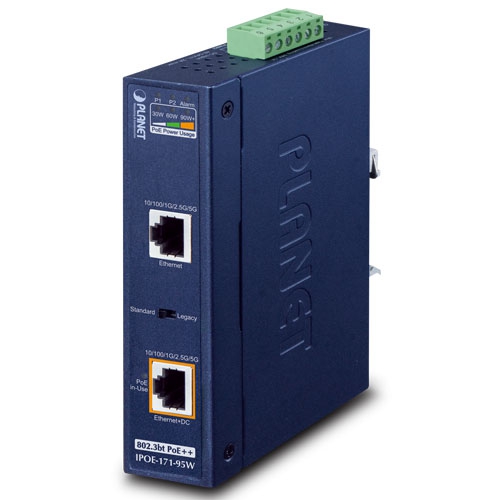

Planet - IPOE-171-95W - Industrial Single-Port Multi-gigabit 802.3bt PoE++ Injector
Product Overview
The Planet IPOE-171-95W is an industrial single-port multi-gigabit 802.3bt PoE++ injector that delivers up to 95W power output while supporting 10M/100M/1G/2.5G/5G data rates over standard Cat5e/6 cabling. It features integrated 12–48V DC to 54V power boost technology for operation from common industrial supplies, End-span + Mid-span 4-pair power delivery, real-time PoE usage LEDs, and a wide -40°C to 75°C operating temperature for harsh environments.
Key Configuration
- • Interfaces: 1 × RJ45 Data In, 1 × RJ45 PoE Out, 1 × power terminal block (12-48V DC)
- • PoE standard: 802.3bt Type-4, UPoE, Legacy/Force modes
- • Power output: 54V DC, 95W via 4-pair (End-span + Mid-span) / 36W via 2-pair
- • Data rate: 10M/100M/1G/2.5G/5Gbps
- • Power input: 12-48V DC, 5A max (redundant, reverse polarity protection)
- • Dimensions: 135 × 87.8 × 32 mm; weight: 470g
Key Features
The IPOE-171-95W is an industrial single-port 802.3bt PoE++ injector that adds high-power PoE capability to any non-PoE switch. It features a 12–48V DC to 54V boost converter, allowing operation from common industrial power supplies without requiring specialized 54V sources. It delivers 4-pair power (End-span + Mid-span) with output derating based on input voltage: 75W at 100m with 24–48V input, or 52W at 100m with 12V input, supporting multi-gigabit data rates up to 5Gbps.
Technical Context
The injector includes Legacy and Force modes for compatibility with non-standard PDs, and features redundant power inputs with a fault alarm relay (1A @ 24V DC) for failover notification. PoE usage LEDs provide real-time power consumption monitoring, while Power Input LEDs indicate redundant supply status. It supports distances up to 100m over Cat5e/6 cabling.
Installation Notes
The IP30 metal enclosure (DIN-rail or wall-mount) operates from -40°C to 75°C with 5–90% RH and stores from -40–85°C, backed by 6KV ESD protection. Powered via terminal block with up to 120W max consumption, it features LEDs for power, fault, PoE-in-use, and usage levels. The unit is TAA compliant.
| Hardware Specifications | |
|---|---|
| Interface | Input Port
Output Port Input power terminal block |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat. 5e, 6, 6A 5G: 4-pair UTP Cat. 6, 6A |

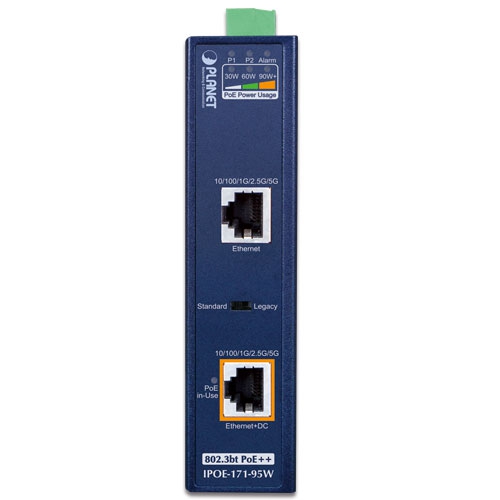

| LED Indicators | System: Power 1 (Green), Power 2 (Green), Fault (Red) PoE Port: PoE-in-Use x 1 (Amber) PoE Usage: PoE Usage x 3 (Amber) |
| Data Rate | 10M/100M/1G/2.5G/5Gbps |
| ESD Protection | 6KV DC |
| Enclosure | Metal case |
| Dimensions (W x D x H) | 135 x 87.8 x 32 mm |
| Weight | 470g |
| Power Requirements | DC +/-12 ~ +/-48V, 5A max. |
| Unit Output Voltage | DC 54V |
| Power Consumption | 120 watts max. |
| No. of devices that can be powered | 1 |
| Installation | DIN-rail kit or wall-mount ear |

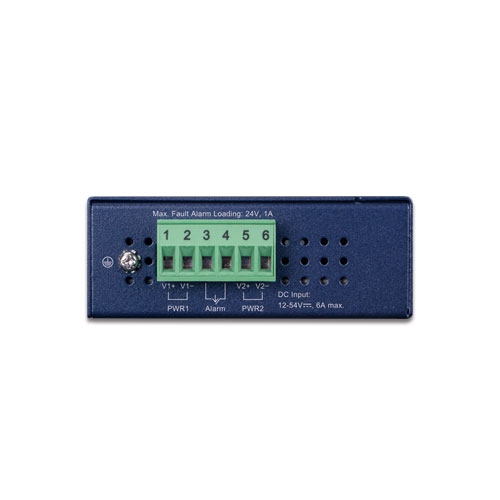

| Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
| Enclosure | IP30 slim type metal case |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at/bt PSE |
| PoE Power Output Budget | DC 54V / 95-watt PoE via 4-pair DC 54V / 36-watt PoE via 2-pair |
| PoE Power Output | DC 24V~48V input:
DC 12V input: |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| PoE Mode | Standard mode Legacy and Force mode |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3bt 4-pair Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
