Hanwha - SBD-110GPA - Installation Kit for Mobile Camera
Part number:
SBD-110GPA
Price:

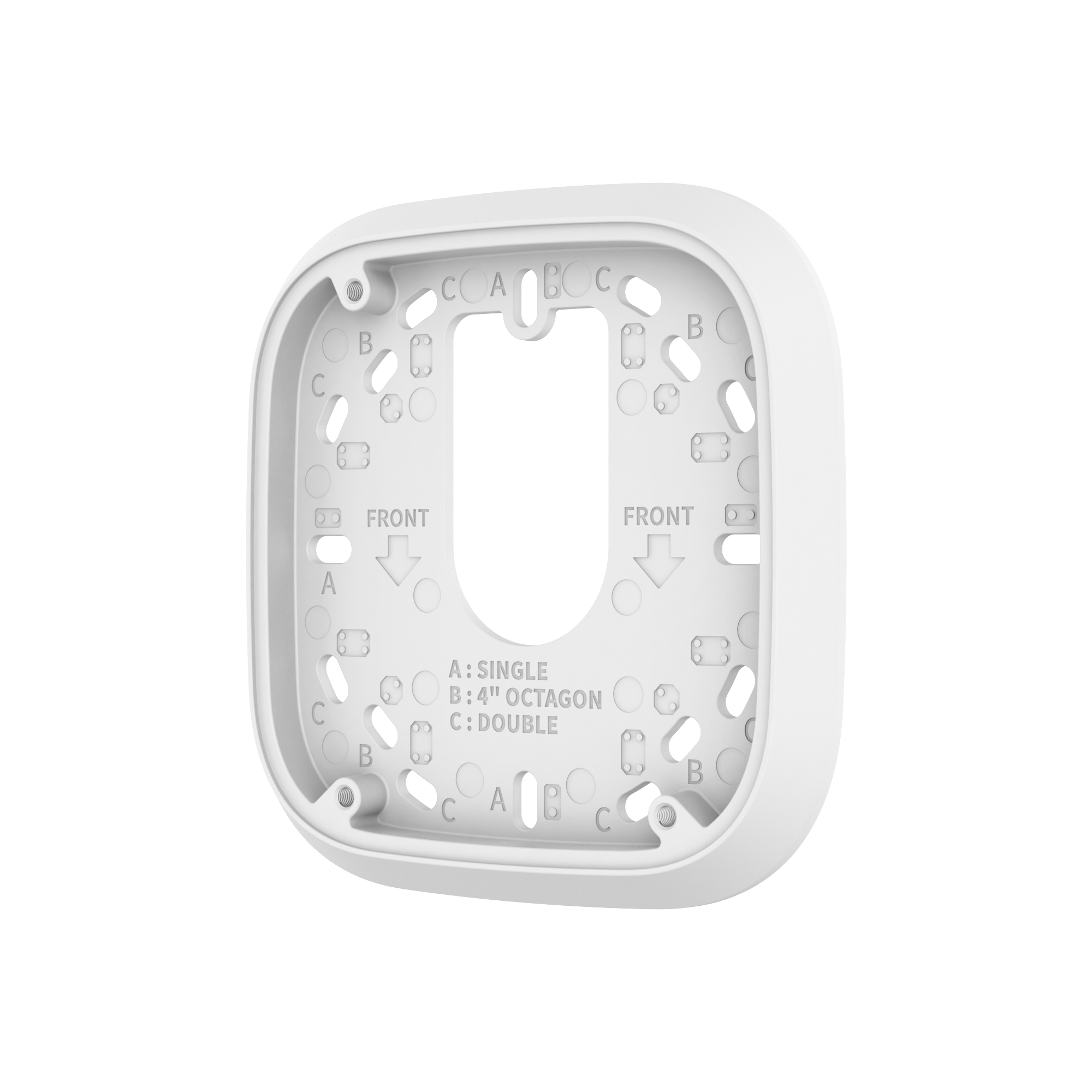

Installation kit for TNV-C8014RM & TNV-C8034RM, includes mount plate and M12 to RJ45 adapter
Features:
• Material : Aluminum
• Dimensions / weight : 121.7(W)x11(H)x120.7(D)mm(4.79x0.43x4.75") / 130g(0.29lb) RJ45 Gender : 20.2(W)x20(H)x50.8(D)mm(0.80x0.79x2.00") / 32g(0.07lb)
• Color : Mount Plate : White, RJ45 Gender : Black
| Mechanical | |
| Color | Mount Plate : White, RJ45 Gender : Black |
| Material | Aluminum |
| RAL code | Mount Plate : RAL9003 |
| Product dimensions / weight | Mount Plate : 121.7(W)x11(H)x120.7(D)mm(4.79x0.43x4.75") / 130g(0.29lb), RJ45 Gender : 20.2(W)x20(H)x50.8(D)mm(0.80x0.79x2.00") / 32g(0.07lb) |
| Mount Screw size | TR20 |
| Supported products | TNV-C8014RM/C8034RM |
