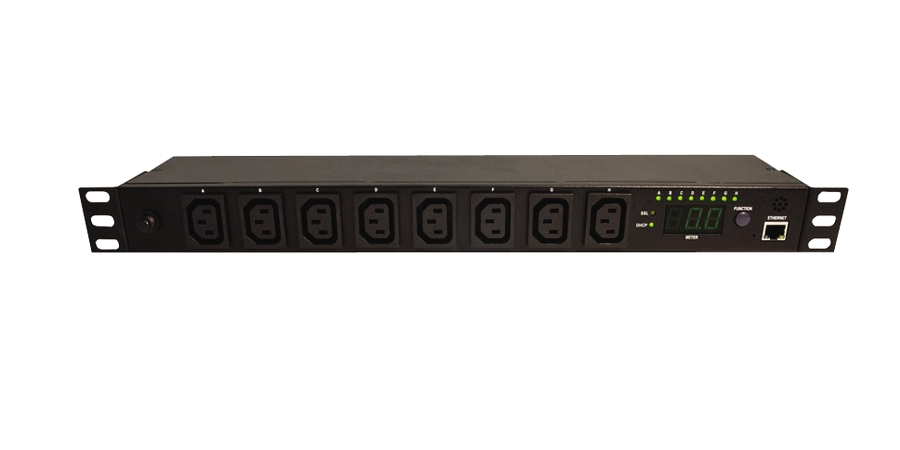

IP-based Switched PDU 8-outlet 20A IEC 208V 6-20P
Like Being Everywhere, All the Time
Control from Anywhere
Minuteman RPMs offer a secure connection which is accessible from any device with a standard internet browser, including desktop and laptop PCs, smartphones, and tablets. From these devices, users can control and configure all aspects of the device, including:
RPM Benefits
Utilizing Minuteman’s remote power manager products allows technicians and administrators to:
Features:
| Model Number | RPM2082HVI |
| Load Capacity (Max) | 16Amps |
| INPUT PARAMETERS | |
| Number of Phases | Single (12W +G) |
| Nominal Voltage | 200-240VAC |
| Frequency | 50/60Hz |
| Input Protection | Re-settable circuit breaker |
| OUTPUT PARAMETERS | |
| Nominal Voltage | 200-240VAC |
| Frequency | 50/60Hz |
| Branch Circuit Protection | UL 60950-1 |
| Circuit Quantity | One |
| ENVIRONMENTAL | |
| Operating Temperature | +32 - +122F (0 - 50C) |
| Storage Temperature | +32 - +149F (0 - 65C) |
| Operating/Storage Humidity | 0 - 90%, non-condensing |
| Operating Elevation | 0 to 3,000m (0 to +10,000 ft) |
| Storage Elevation | 0 to 15,000m (0 to +50,000 ft) |
| PHYSICAL | |
| Input Power Cord | 10-feet |
| Input Plug | NEMA 6-20P |
| Quantity Output Receptacles | 8 |
| Type Output Receptacles | IEC 320 C13 |
| Rack Mounting Format | Horizontal (1U) Vertical (Zero U) |
| Net Dimension L x W x H (mm) | 3.54" x 17" x 1.73" (90 x 432 x 44) |
| Net Weight Lbs (Kgs) | 4.63 (2.1) |
| Ship Dimensions L x W x H (mm) | 19.9 x 8.3 x 3.5" (505 x 210 x 90) |
| Ship Weight Lbs (Kgs) | 5.29 (2.4) |
| REGULATORY COMPLIANCE | |
| Safety/Approvals | cUL, UL 60950-1, CE |
