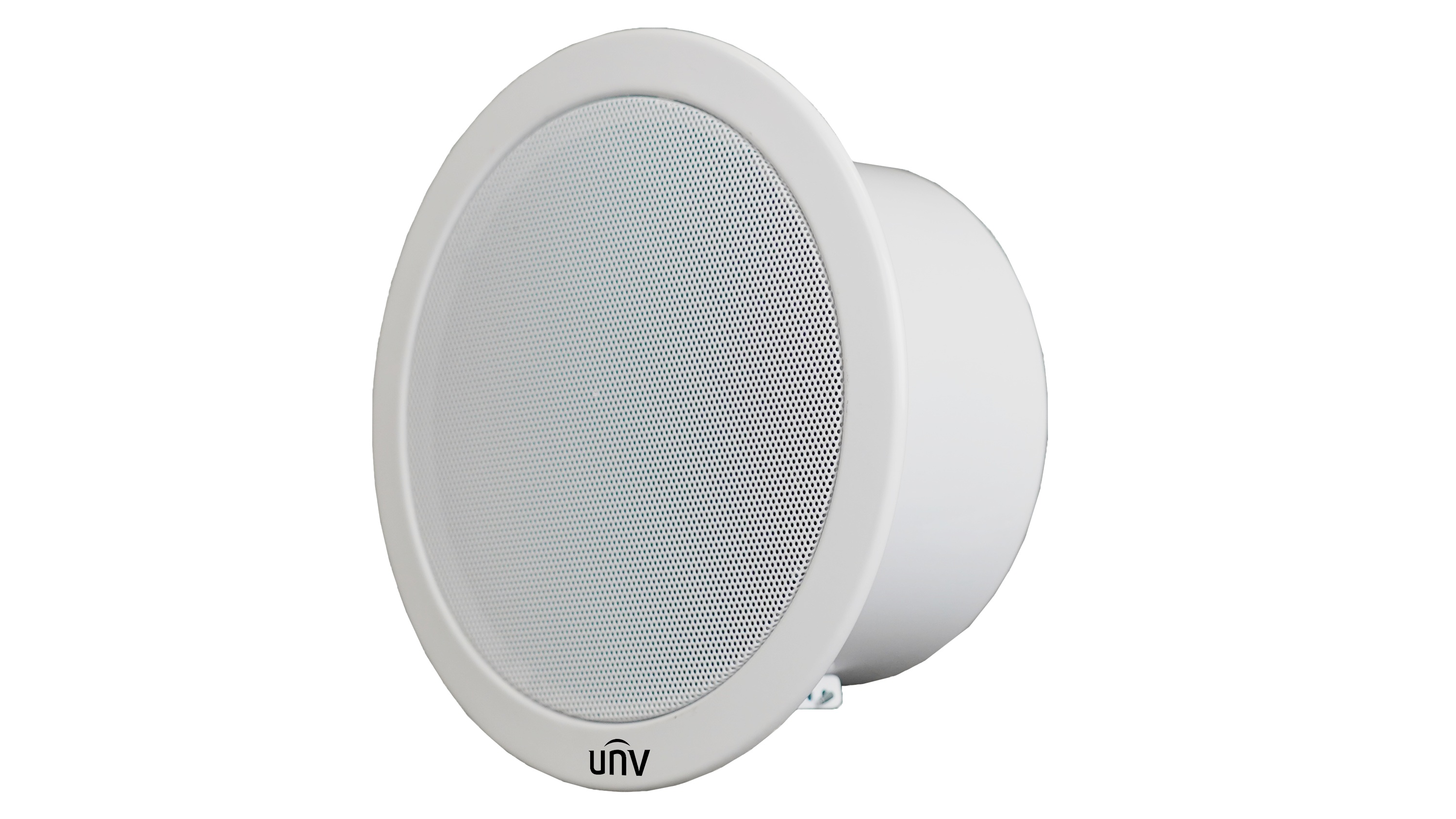

Uniview - IPS301015-S - IP Ceiling speaker(15W)
Part number:
IPS301015-S
Price:
Indoor Upper-Holder IP Speaker
Features:
- Built in 1 high-quality speaker with loud sound, long penetration and clear
- Support alarm broadcast with uniview NVR, video and audio linkage.
- Built in storage, support uploading custom audios
- Support two-way audio
- Support PoE power supply
| IPS301015-S | |
| Speaker | |
| Rated Power | 15 W |
| Max. Acoustic Pressure | 100 dBSPL |
| Frequency Response | 100 Hz to 15 kHz |
| Impedance | 8 Ω |
| Material | |
| Material | Metal |
| Network | |
| Network Protocol | IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH |
| Interface Protocol (API) | ONVIF, RTSP, RTP, LAPI |
| Browser | Firefox 87+, Chrome 90+, Edge 90+, Safari 17+ |
| Build in Mic | |
| Amount | 1 |
| Frequency Response | 100 Hz to 8 kHz |
| Sensitivity | -37 dBV/Pa |
| Sampling Rate | 8 kHz |
| Quantization Bits | 16 bit |
| Audio | |
| Broadcast | Regular Broadcast, Live Broadcast, Alarm Broadcast |
| Two-Way Audio | Support |
| Audio Compression | G.711U |
| Audio File Format | MP3, WAV |
| Audio File Size | 2 KB ≤ Audio File Size ≤ 10 MB |
| Audio File Storage | 64 MB |
| Audio File Number | 100 (Include system built-in files ) |
| Language | |
| Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Interface | |
| Network Interface | 1 RJ45 10 M/100 M self adaptive Ethernet Interface |
| Audio In | RCA (only be used for sound amplification,cannot be used for intercom) |
| Alarm In | 2 |
| Power Supply | PoE (IEEE 802.3af), DC 12 V/1.4 A |
| Working Environment | |
| Working Temperature | -10 ℃ to 50 ℃ (14 ℉ to 122 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Dimensions | |
| Dimensions | Φ200mm × 95mm (Φ7.9"×3.7") (Hole size: 180mm) |
