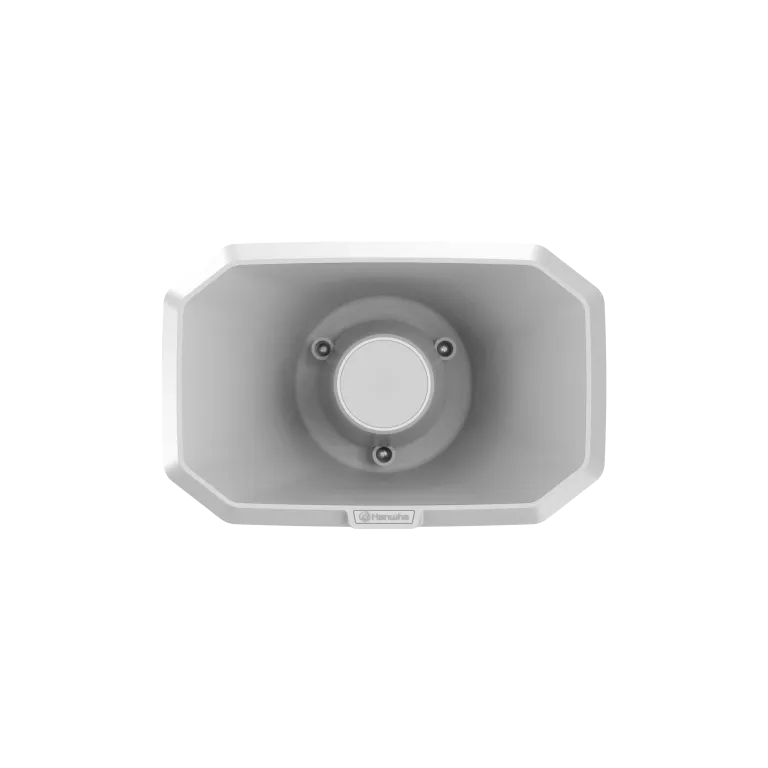

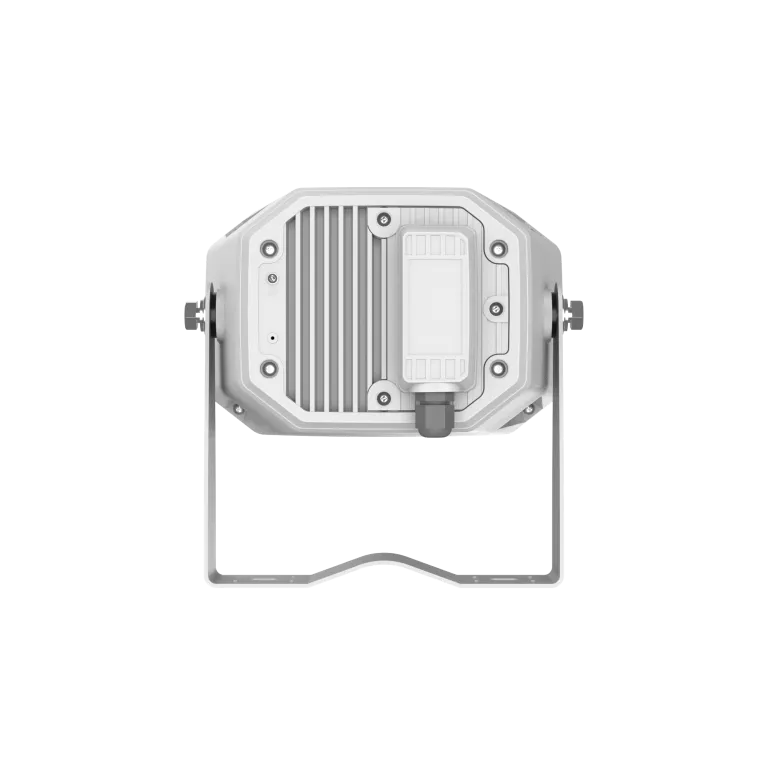

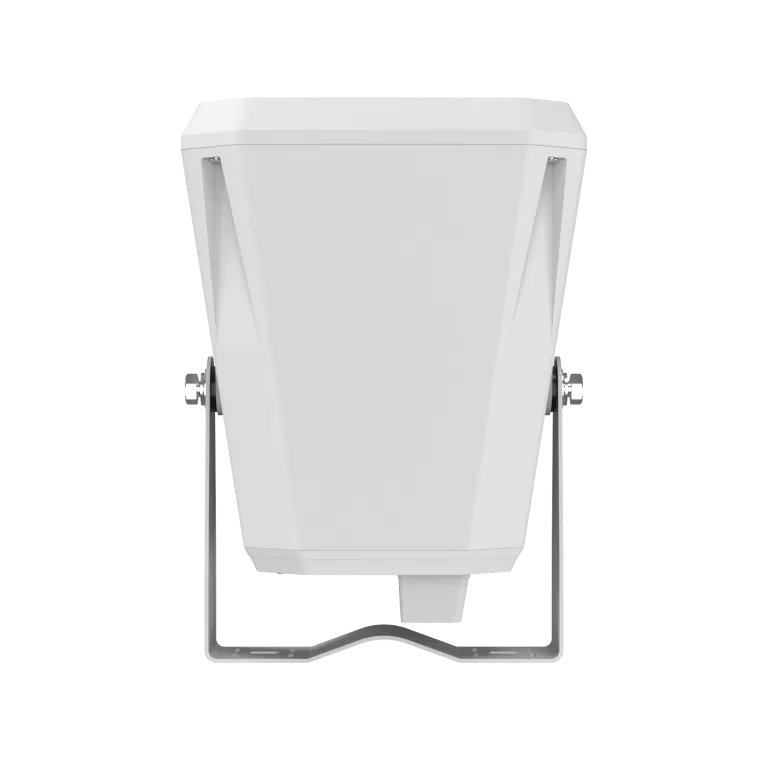

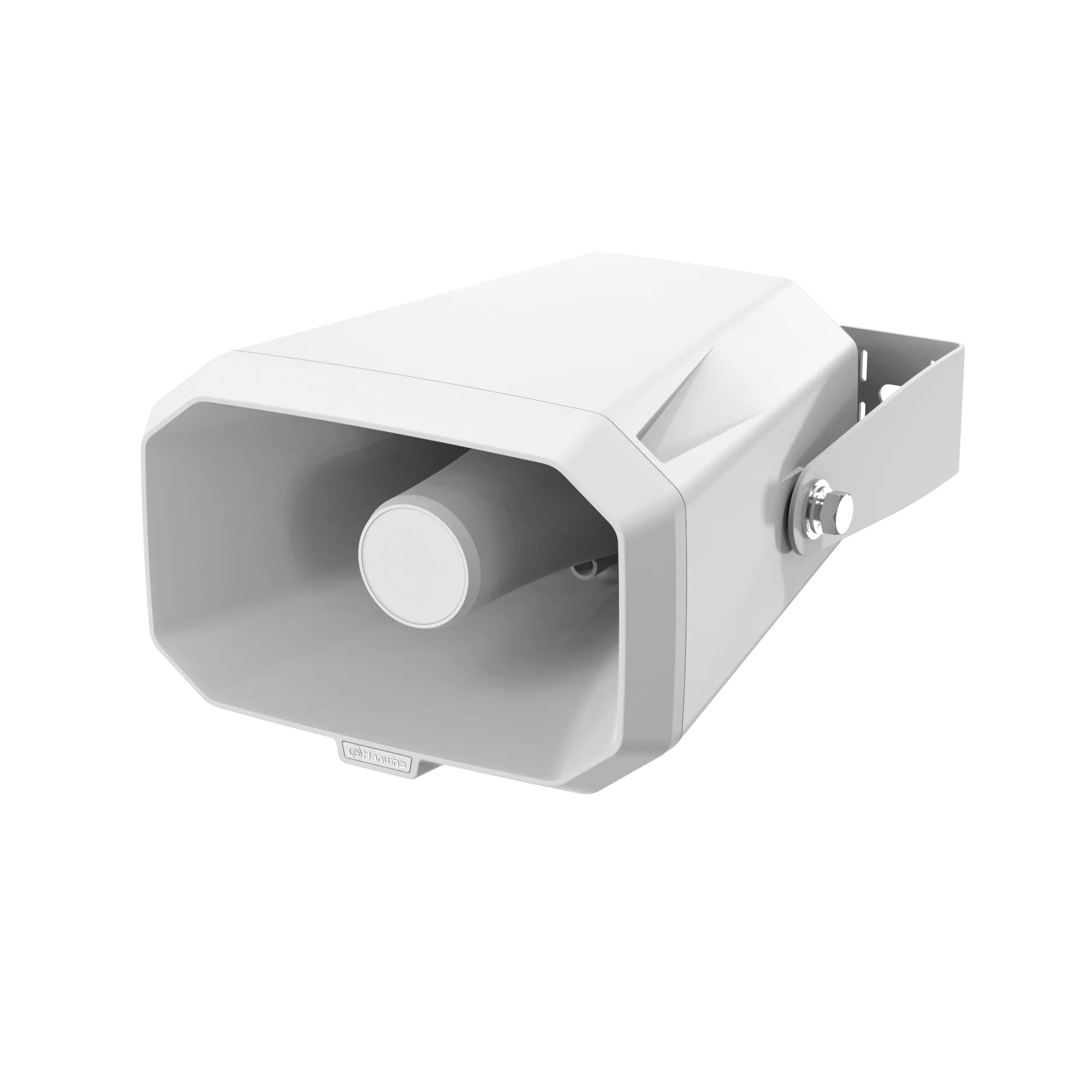

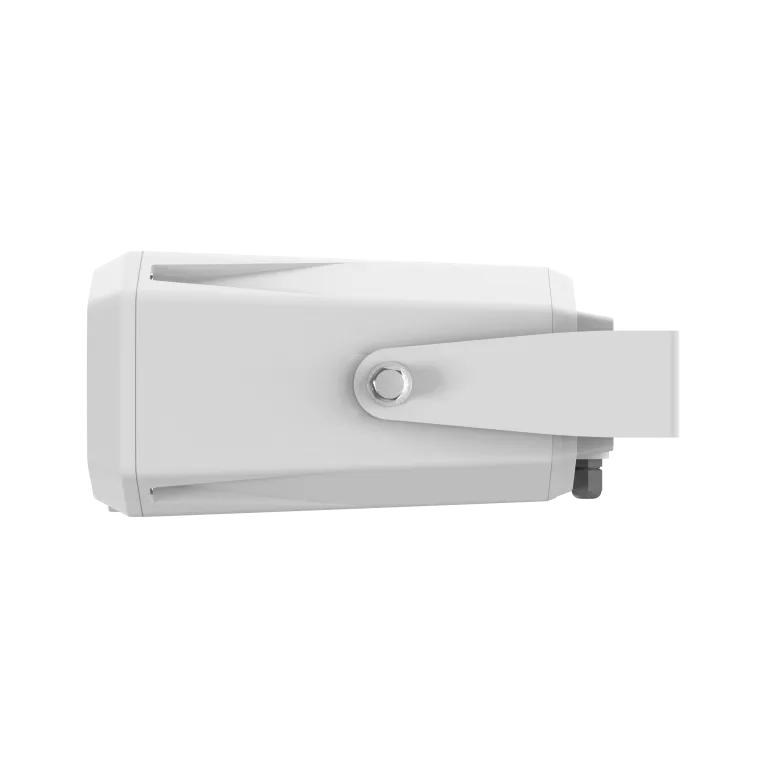

Hanwha - SPA-H100W - IP Audio Speaker, 10W Amp, 124dB Output

Product Overview

The Hanwha SPA-H100W is an IP horn speaker featuring a built-in 10W Class D amplifier that delivers a sound pressure level (SPL) of up to 124dB when powered by PoE+. It supports two-way audio communications, scheduling functionality, background music (BGM) broadcasting, and text-to-speech (TTS) conversion. The unit contains 1GB of internal storage, includes a single microSD slot supporting up to 32GB for local media, and provides an integrated relay interface with one dry contact input and one dry contact output.

Key Configuration

• • Amplifier: built-in 10W Class D; speaker component: 1" HF driver (dome type)
• • Max SPL: 124dB (PoE+), 121dB (PoE); sensitivity: 111dB (1Watt)
• • Frequency range: 650Hz–5.3kHz; coverage pattern: 130°×160° (1kHz), 30°×50° (4kHz)
• • Memory: 1GB internal storage; microSD/SDHC up to 32GB (SANDISK)
• • Dimensions: 241(W) × 155(H) × 307(D) mm; weight: 3.7 kg; color: white

Key Features

Supporting two-way audio alongside scheduler, BGM, and TTS functions, this horn speaker handles WAV and MP3 formats mono/stereo, 64–320 kbps, 16–48 kHz. It connects via a 10/100 Base-T network interface running the SUNAPI API and standard protocols, including SIP. Security is maintained through multi-tier password protection, SHA-2, digest authentication, and user logs. The rugged operates via standard PoE Class 3 or PoE+ Class 4 and features a dry contact I/O relay (1 in/1 out NO) alongside full EMC and UL/CSA 62368-1 safety certifications.

Installation Notes

Measuring 241 × 155 × 307 mm (9.49" × 6.10" × 12.09") and weighing 3.7 kg (8.16 lb), this IP66-rated weatherproof speaker operates across a demanding temperature range of -40°C to 55°C (-40°F to 131°F). The unit is powered via standard PoE (Class 3) or PoE+ (Class 4). For hardware integration and local file storage, it features a built-in relay for external device control alongside a single microSD slot supporting up to 32GB.
