Hanwha - SPA-P100B - IP Audio Speaker, Two-way audio, Scheduler, Background Music, Text To Speech, 10W Amp, 101dB Output, Freq. Range 130Hz-20kHz, 1GB Internal Storage, Single Micro SD slot (Up to 32GB), Built in Relay, SUNAPI, Onvif, SIP, P2P-SIP, P
Part number:
SPA-P100B
Price:

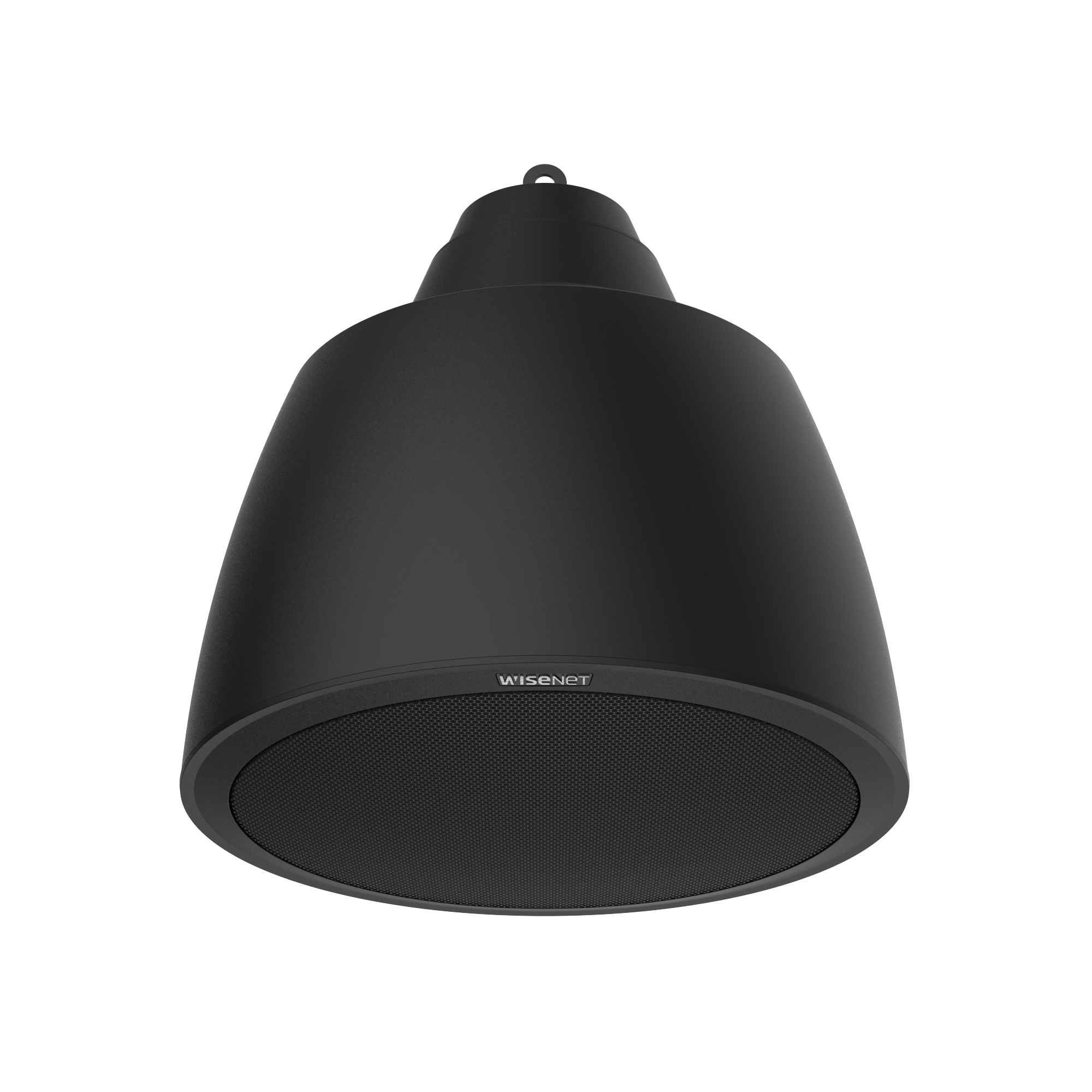

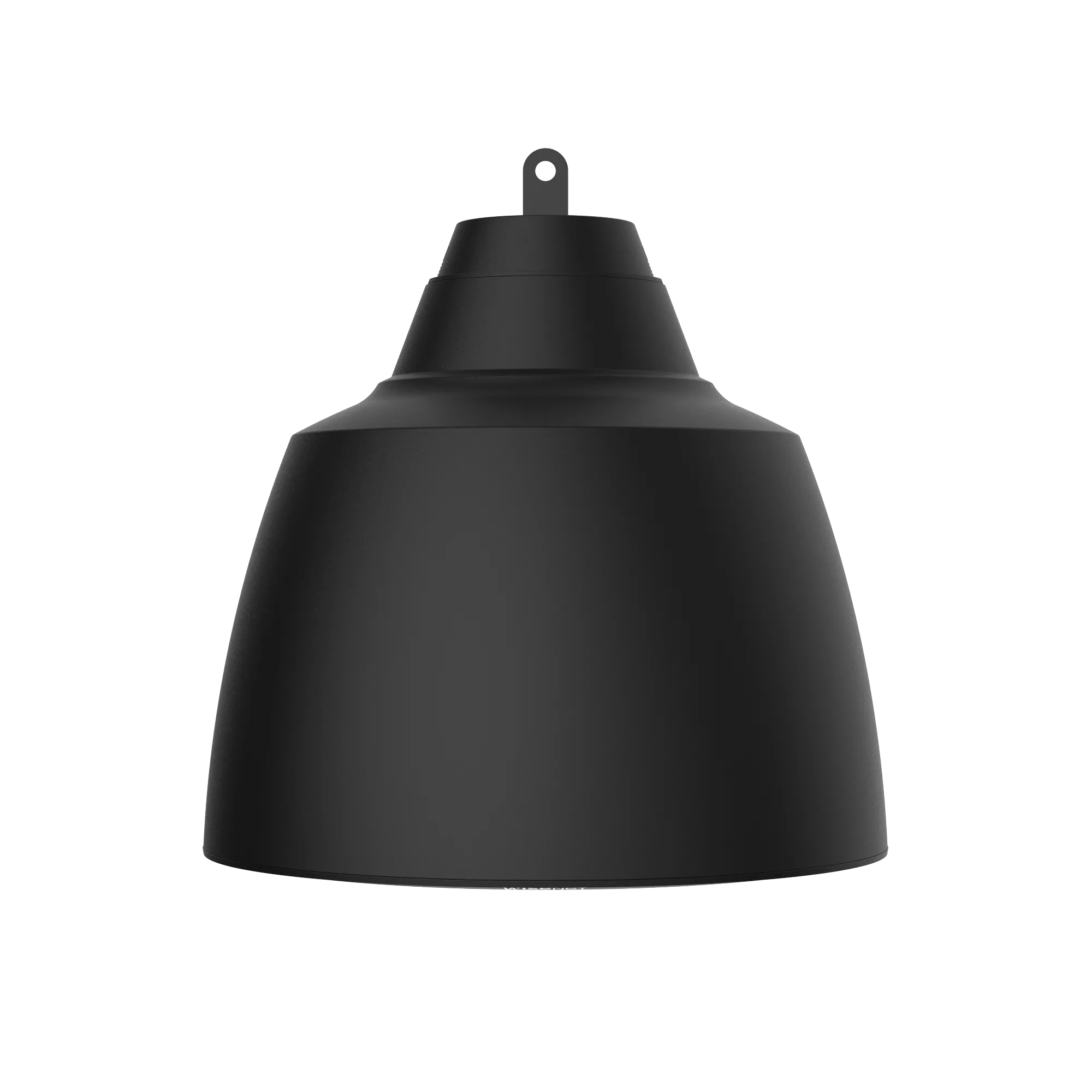

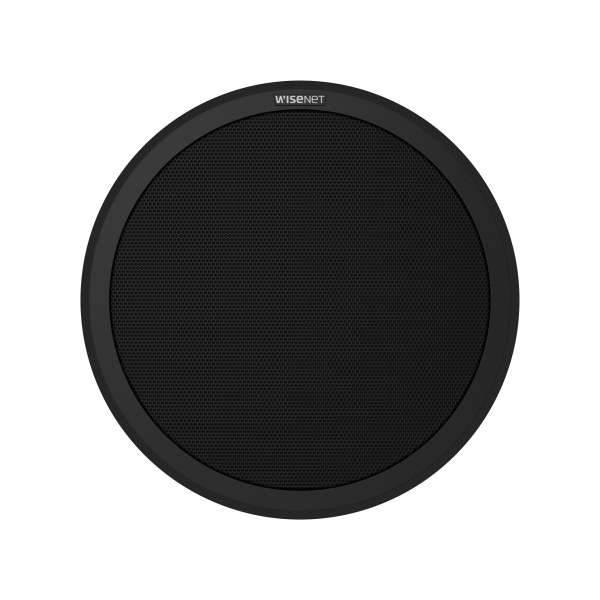

The Hanwha Vision SPA-P100B is a powerful and versatile IP pendant speaker that is ideal for a wide range of applications, including public address, security, and paging. It features a high sound pressure level (SPL) of 101dB, ensuring that your message is heard clearly and distinctly in even the most challenging environments.
The SPA-P100B is also equipped with a wide range of features that make it easy to use and manage. It supports PoE/PoE+ (Power over Ethernet), so only one cable is needed to provide both power and audio. The speaker can also be configured and controlled using a web interface
Features:
- Two-way audio
- Scheduler function
- Background Music (BGM)
- Text To Speech (TTS)
- 10W amp, 101dB Output
- Frequency Range 130Hz-20kHz
- 1GB Internal Storage, Micro SD slot (up to 32GB)
- Built-in Relay
- SUNAPI, ONVIF, SIP, & P2P-SIP protocols
- PoE, PoE+ power support
- Black Color
| Specifications | |
| Product | |
| Type | IP Pendant Speaker |
| Amplifier | |
| Description | Built in 10W Class D |
| Network | |
| Ethernet | 10/100 Base-T |
| Memory | |
| Internal Memory | 1 GBytes |
| External Memory (Micro SD) | SDHC upto 32GB (SANDISK) |
| Contact | |
| Contact Input. Dry contact | One channel |
| Contact Output. Dry contact (NO) | One channel |
| General | |
| Operating Temperature | -20 ~ +50℃ (-4°F ~ +122°F) |
| Operating Humidity | 10~85% RH (Non-Condensing) |
| Weight | 2.1Kg |
| Size | Φ269*256(H)mm |
| Color | Black/White |
| Certificate | EMC : FCC Part 15 Subpart B, ICES-003 Safety : UL 62368-1, CAN/CSA 62368-1 |
| Power | |
| PoE | PoE (IEEE 802.3 af type 1 Class 3) |
| PoE+ | PoE+(IEEE 802.3 at type 2 Class 4) |
| Embedded MIC | |
| Input Sensitivity | Sound Level Meter |
| Frequency Response | Sound Level Meter |
| Audio | |
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16 kHz up to 48 kHz |
| Speaker | |
| Speaker Component | 2Way 8" LF Drive & 2" HF Driver. Passive type |
| Max. Sound Pressure Level (PoE) | 97dB |
| Max. Sound Pressure Level (PoE+) | 101dB |
| Frequency Range (-10dB) | 130Hz~20kHz |
| Sensitivity (1Watt) | 91dB |
| Coverage Pattern | (HxV) : 130°(1kHz) / 60°(4kHz) |
| Network Protocol | |
| Security | Password protection : admin,setup,user,guest (sha-2, Digest authentication, User access log) Digest authentication, User access log |
| Supported Protocols | IPv4, HTTP, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP |
| System Integration | |
| API (Application Programming Interface) | SUNAPI |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) |
| Event & Preset | Virtual Contact, Dry contact |
| Functional Monitoring | Connection verification, Built-in system logging |
