Product Overview

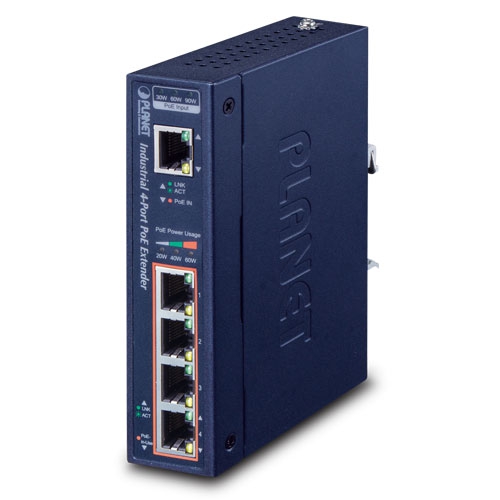

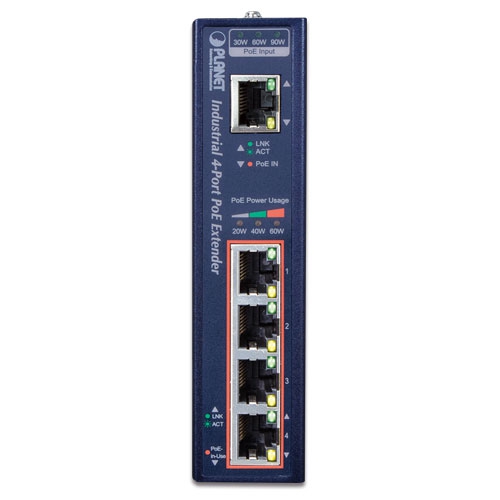

The Planet IPOE-E174 is an industrial 1-port 802.3bt PoE++ to 4-port 802.3af/at Gigabit PoE extender, receiving up to 95W PoE input and delivering 75W PoE output budget across 4 ports. Housed in an IP30 metal case, it operates from -40°C to 75°C with DIN-rail or wall-mount installation, extending PoE distance to 200 meters (two 100m segments) without an external power adapter.
Key Configuration
• Ports: 1 × Gigabit PoE++ input, 4 × Gigabit PoE+ output ports
• PoE Input: 50–57V DC, up to 72W (802.3bt Type 3/4)
• PoE Output: Up to 30.8W per port, 64W total budget
• Performance: 10Gbps switching capacity, 7.44 Mpps forwarding rate
• Capacity: 2K MAC address table, 9K jumbo frames
• Size: 32 × 85 × 135 mm
• Weight: 424 g
Key Features
The IPOE-E174 expands a single PoE++ connection into four PoE output ports, allowing multiple devices to be powered from one uplink. It supports PoE extension up to 200 m total distance, includes real-time power usage indicators (20W/40W/60W), and is housed in a rugged IP30 metal enclosure with DIN-rail and wall-mount options for industrial environments.
Technical Context
Acting as both a PoE-powered device and a PoE source, the IPOE-E174 receives power from an 802.3bt source and redistributes it to up to four remote devices. It supports up to 72W input and 64W output power budget, making it suitable for IP cameras, wireless access points, and VoIP devices in outdoor, industrial, or remote installations.
Installation Notes
Compact design (32 × 85 × 135 mm, 424 g) with operating temperatures from -40°C to 75°C. Requires an 802.3bt Type 3/4 PoE source and supports Cat5e/6 cabling up to 100 m per segment. Features 6KV ESD protection, comprehensive LED status indicators, and a shared 64W output budget across all four ports.
| Hardware Specifications | |
| Hardware Version | 2 |
| Network Connector | PoE In Port 1 x 10/100/1000BASE-T Ethernet with ultra PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector PoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Switch Architecture | Store-and-Forward switch architecture |
| MAC Address Table | 2K MAC address table with auto learning function |
| Switch Fabric | 10Gbps |
| Switch Throughput | 7.44Mpps @ 64Bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall-mount ear |
| Cable | Twisted-pair cable : 10BASE-T: 2-pair UTP Cat. 3, 4, 5 up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters |
| Dimensions (W x D x H) | 32 x 85 x 135 mm |
| Weignt | 424g |
| Power Consumption | 4.1 watts/13.9 BTU (Power On) 64.7 watts/220.6 BTU (Full PoE loading without data transfers) 66.1 watts/225.4 BTU (Full loading with PoE function) |
| LED Display | System: PWR (Green) Power Input: 30W, 2-pair 802.3at PoE in (Green) Power Input: 60W+, 4-pair 802.3bt, Ultra PoE or UPOE in (Green) PoE Power Usage:20W, 40W and 60W PoE Input Port: LNK/ACT (Green) PoE Input Port: PoE in (Orange) Per PoE Output Port: LNK/ACT (Green) Per PoE Output Port: PoE-in-Use (Orange) |
| Power over Ethernet | |
| PoE Standard | PoE In Port IEEE 802.3at High Power over Ethernet end-span/mid-span class 4 PD Per PoE Out Port IEEE 802.3at High Power over Ethernet end-span PSE IEEE 802.3af Power over Ethernet end-span PSE |
| PoE Power | PoE In Port 50~57V DC, max. 72 watts Per PoE Out Port 44~55V DC, max. 30.8 watts |
| Power Pin Assignment | PoE In Port 1/2(+), 3/6(-); 4/5(+), 7/8(-) Per PoE Out Port 1/2(+), 3/6(-) |
| PoE Power Budget | 64 watts (max.) @ PoE Type 3 input (Ultra PoE input) 30 watts (max.) @ PoE Type 2 input (802.3at input) 15 watts (max.) @ PoE Type 1 input (802.3af input) |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (Free fall) IEC 60068-2-27 (Shock) IEC 60068-2-6 (Vibration) |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Higher Power over Ethernet |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
