Planet - WGS-E304PT - Industrial 1-Port 10/100/1000T 802.3bt PoE++ to 4-Port 802.3at PoE+ Wall-mounted Extender
Product Overview

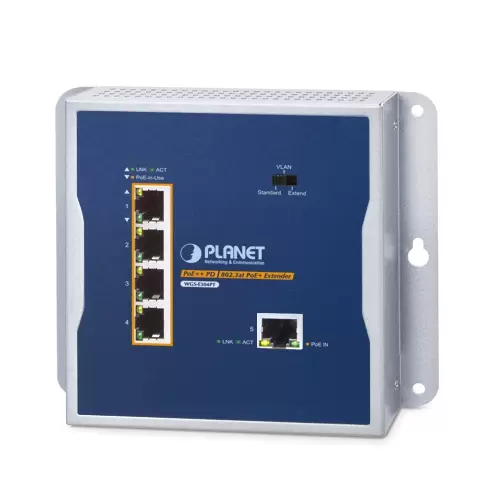

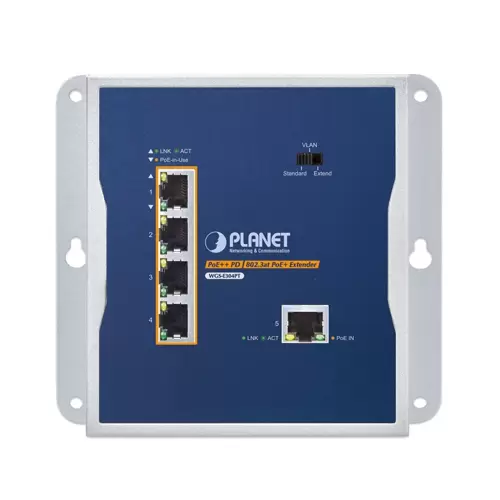

The Planet WGS-E304PT is an industrial 1-port 802.3bt PoE++ to 4-port 802.3af/at Gigabit PoE extender with three operation modes (Standard/VLAN/Extend), receiving up to 95W PoE input and delivering 60-75W PoE output budget across 4 ports. Housed in an IP30 metal case with a fanless design, magnetic wall mounting, or DIN-rail installation.
Key Configuration
• Ports: 1 × Gigabit PoE++ input (802.3bt Type 4 PD), 4 × Gigabit PoE+ outputs (802.3af/at PSE, End-span 1/2+,3/6-)
• DIP Modes: Standard (normal operation), VLAN (port isolation), Extend (10Mbps, up to 250m)
• PoE Input: 50–57V DC, up to 95W max
• PoE Output: 44–55V DC, up to 30.8W per port
• PoE Budget: 60–75W (with 802.3bt Type 4 input)
• Performance: 10Gbps switching capacity, 7.44 Mpps forwarding rate
• Capacity: 2K MAC address table, 9K jumbo frames
• Size: 148 × 24.2 × 134 mm
• Weight: 457 g
Key Features
Expands a single PoE++ connection into four PoE+ ports and supports three operating modes: Standard, VLAN isolation, and Extend mode for up to 250 m transmission. The fanless IP30 metal design supports wall, magnetic, or DIN-rail mounting and is built for harsh environments with -40°C to 75°C operation, ESD/surge protection, and industrial-grade reliability.
Technical Context
The WGS-E304PT acts as both a PoE-powered device and a PoE source, allowing four remote devices to share a single PoE++ uplink. VLAN mode isolates connected devices to reduce unnecessary traffic, while Extend mode increases reach for cameras, sensors, and access points in remote locations. Its fanless construction and magnetic mounting simplify deployment in industrial and outdoor installations.
Installation Notes
Compact housing (148 × 24.2 × 134 mm, 457 g) with an IP30 enclosure and support for fixed wall, magnetic, or DIN-rail installation. Requires an 802.3bt Type 4 PoE source and provides a shared output budget of up to 75W across four ports. Extend mode operates at 10 Mbps for longer distances, and front-facing LEDs provide quick link and PoE status monitoring.
| Hardware Specifications | |
|---|---|
| Network Connector | PoE In Port 1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in Auto MDI/MDI-X, auto-negotiation RJ45 connector PoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC” out Auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Switch Architecture | Store-and-Forward switch architecture |
| MAC Address Table | 2K MAC address table with auto learning function |
| Switch Fabric | 10Gbps |
| Switch Throughput | 7.44Mpps @ 64Bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| ESD Protection Air 8KV DC | Contact 6KV DC |
| Surge Protection | 6KV |
| Enclosure | IP30 metal case |

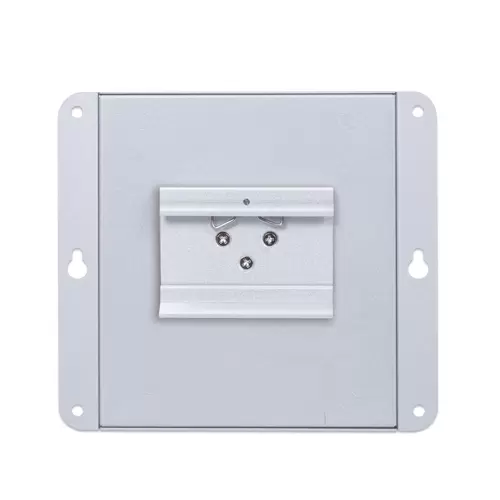

| Installation | DIN-rail kit and wall-mount ear |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weignt | 457g |
| LED | PoE Input Port (Port 5): LNK/ACT(Green) PoE: Power-in-use (Amber) PoE Output Ports (Ports 1~4): LNK/ACT(Green) PoE: Power-in-use (Amber) |
| DIP Switch | Multi-operation mode options (Standard/VLAN/Extend) selection |
| Power Consumption | 8.6 watts/29 BTU (Power On) 82 watts/279 BTU (Full loading with PoE function) |
| Power over Ethernet | |
| PoE Standard | PoE in Port IEEE 802.3bt PoE++ Type 4 standard PD IEEE 802.3at PoE+ end-span/mid-span PD Per PoE out Port IEEE 802.3at Power over Ethernet Plus end-span PSE |
| PoE Power | PoE in Port 50~57V DC, max. 95 watts Per PoE out Port 44~55V DC, max. 30.8 watts |
| Power Pin Assignment | PoE in Port 1/2(-), 3/6(+), 4/5(+), 7/8(-) or 1/2(+), 3/6(-), 4/5(+), 7/8(-) Per PoE out Port 1/2(+), 3/6(-) |
| PoE Power Budget | 60-75 watts (max.) @ 802.3bt PoE++ Type 4 input |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 free fall IEC60068-2-27 shock IEC60068-2-6 vibration |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
