Planet - IPOE-162S - Industrial 802.3at High Power PoE Splitter, 12V & 24V, IP30
Product Overview

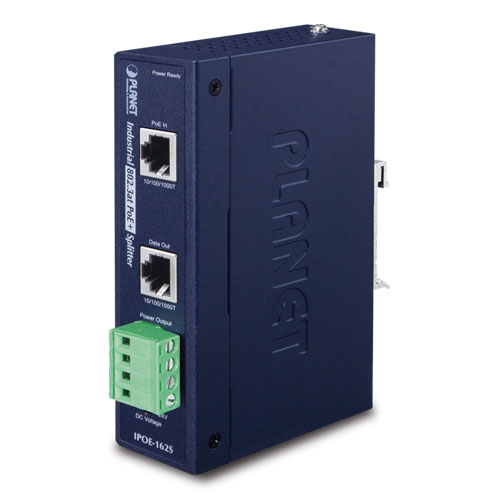

Planet IPOE-162S is an industrial IEEE 802.3at PoE+ splitter converting 48-56V DC over Ethernet into selectable 12V or 24V DC output (up to 25W) via DIP switch. Features dual power output capability (4-pin terminal block), passive 10/100/1000Mbps Ethernet pass-through, IP30 metal case, and -40°C to 75°C operating temperature.
Key Configuration

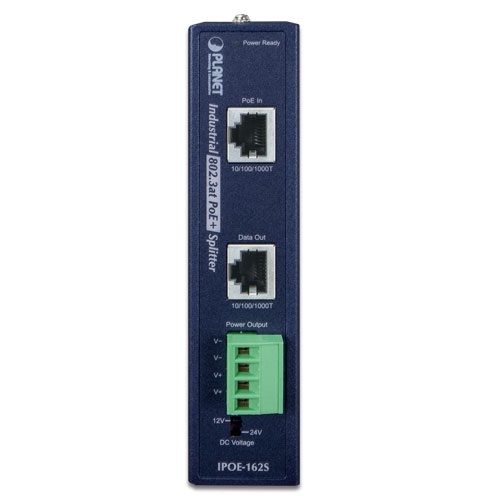

• PoE input: 1 × 10/100/1000BASE-T RJ45 (802.3at PD, 48-56V DC)
• Data output: 1 × 10/100/1000BASE-T RJ45 (pass-through)
• DC output: 4-pin terminal block (dual output), selectable 12V or 24V via DIP switch
• Power output: up to 25W (shared between two outputs)
• Dimensions: slim IP30 metal case
Key Features
Selectable 12V/24V DC output via DIP switch for flexible device compatibility. Supports dual power output sharing up to 25W between two non-PoE devices while maintaining passive Gigabit data pass-through. Built-in IP30 metal housing with DIN-rail or wall-mount installation and TAA compliance for industrial use.
Technical Context
The IPOE-162S separates PoE+ power from data, enabling non-PoE devices to be powered via Ethernet. It accepts up to 30W 802.3at input and provides regulated 12V or 24V DC output up to 25W. Dual terminal outputs allow powering two devices simultaneously, such as a camera and heater, over distances up to 100m from the PoE source.
| Hardware Specifications | |
| Interface | PoE (Power + Data) Input Port : 1 x RJ-45 10/100/1000Base-T Data+ Out Port: 1 x RJ-45 10/100/1000Base-T DC Out Plug Connector: 1 removable 4-Pin terminal block |
| LED Indicator | System: Power Ready x 1 (Green) |
| Network Cable | 10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6 Distance up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| Data Rate | 10/100/1000Mbps (vary on Ethernet device attached) |
| DIP Switch | 12V DC / 24V DC output voltage |
| Power Input | 802.3at PoE 48~56V DC |
| Power Output | 12V / 24V DC, max 2A (adjustable) |
| Dimensions (W x D x H) | 135 x 87.8 x 32 mm |
| Weight | 421g |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall mount ear |
| ESD / EFT Protection | 6KV DC |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at High Power over Ethernet |
| Number of devices that can be powered | 1 or 2 (Vary on devices power requirement; DC1 + DC2 cannot be over 25 watts.) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free Fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
