Planet - LCG-300-US -Industrial IoT LoRaWAN Gateway with 5-Port 10/100/1000T

Product Overview

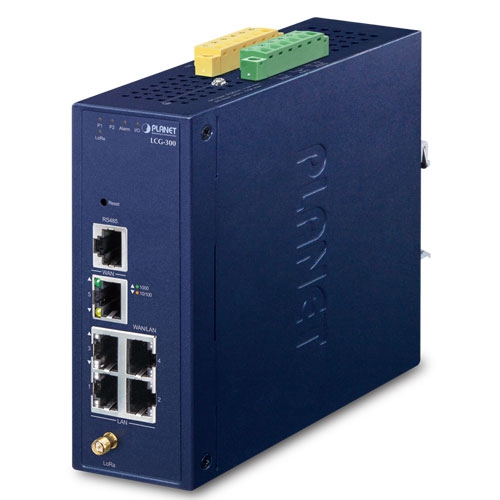

The Planet LCG-300-US is an industrial IP30 LoRaWAN gateway operating on the US915 band (902–928MHz), supporting up to 300 end devices with a high sensitivity of -142.5dBm and up to 27dBm transmit power. It includes 5 Gigabit Ethernet ports, an RS-485 interface, 2 DI/DO ports for industrial integration, and built-in VPN security with SSL, IPSec, PPTP, and L2TP support for secure remote connectivity.

Key Configuration

• Frequency band: US915 (902–928MHz), with support for EU868, AU915, AS923, KR920, RU864, and IN865 variants
• LoRa performance: -142.5dBm receiver sensitivity, up to 27dBm transmit power

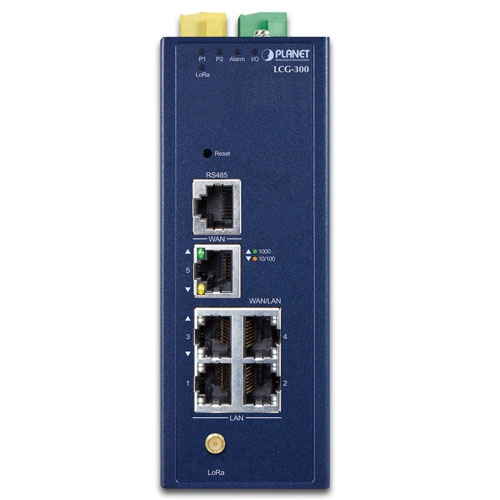

• Network ports: 5 × Gigabit Ethernet (3 LAN, 1 LAN/WAN, 1 WAN)
• Interfaces: RS-485 serial port, 2 digital inputs, 2 digital outputs (100mA @ 24V DC)
• VPN capacity: up to 60 tunnels with 60Mbps throughput
• Dimensions: 50 × 135 × 135 mm; weight: 0.9 kg

Key Features

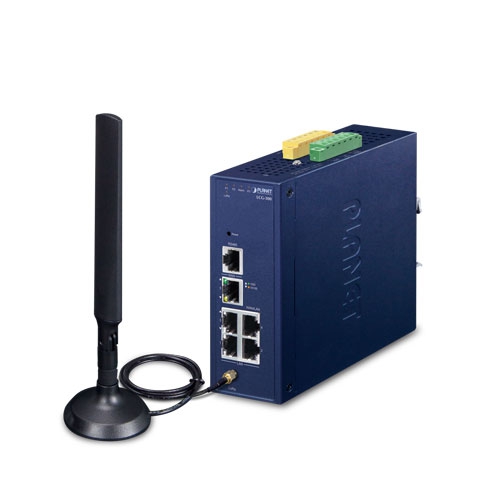

Industrial LoRaWAN gateway supporting up to 300 end devices, bridging long-range wireless networks to IP infrastructure. Features dual 2dBi SMA antennas, extensive VPN and security capabilities (SPI firewall, SSL VPN, IPSec/PPTP/L2TP, AES encryption), DI/DO interfaces for external sensors and actuators, and management via Web, SNMP, SSH, TLS, and UNI-NMS.

Technical Context

Operating on the US915 LoRa band, the gateway delivers up to -142.5dBm receiver sensitivity and 27dBm transmit power for extended wireless coverage and reliable communication with remote sensors. Its five Ethernet ports, combined with integrated VPN support, provide secure connectivity to enterprise and cloud networks.

Installation Notes

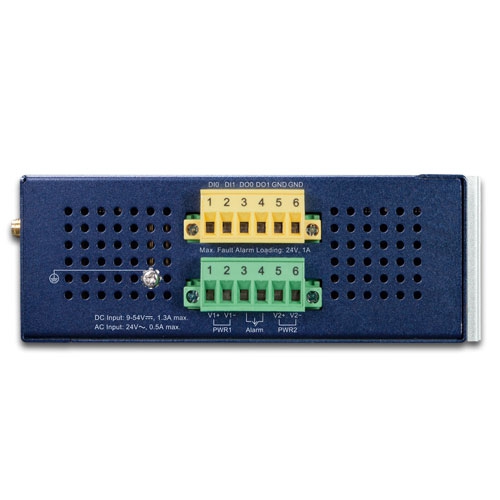

The IP30 metal gateway (50 × 135 × 135 mm, 0.9kg) is designed for -40°C to 75°C environments. Supports redundant 9–54V DC power inputs with alarm relay, dual external 2dBi LoRa antennas, up to 60 VPN tunnels, and management via Web, SNMP, SSH, and TLS. Compatible with multiple global LoRa frequency bands (US915, EU868, AU915, AS923, and others) and includes status LEDs for power, alarm, I/O, LoRa, and Ethernet connectivity.
