Planet - IPOE-176S - IP30, Industrial Single-Port 10Gbps 802.3bt PoE++ Splitter - 12V,19 & 24V DC output

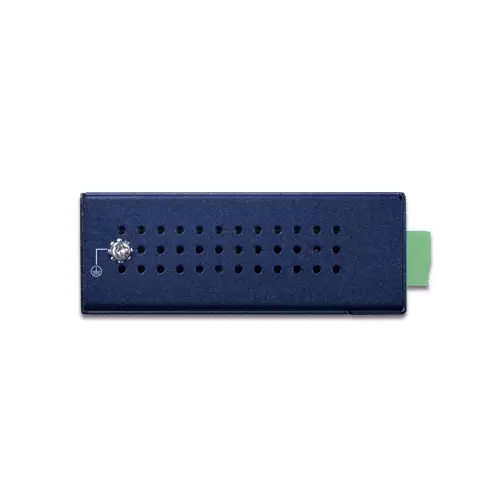

Product Overview

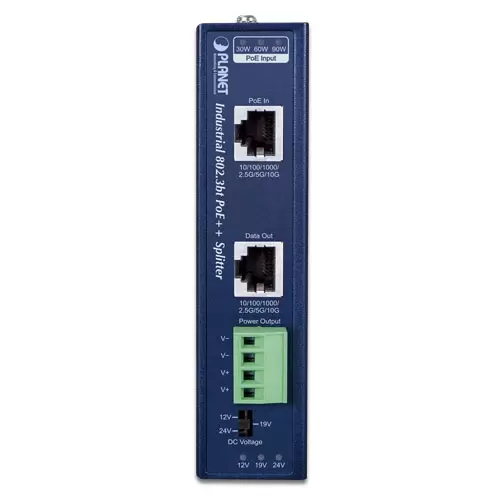

The Planet IPOE-176S is an industrial 802.3bt PoE++ splitter with selectable 12V/19V/24V DC output (up to 70W) via DIP switch, featuring 10M/100M/1G/2.5G/5G/10GBASE-T data pass-through (10G up to 80m with Cat6A/7). Housed in an IP30 metal case with DIN-rail or wall-mount, operates from -40°C to 75°C, and includes dual power output capability via 4-pin terminal block for powering two non-PoE devices simultaneously.
Key Configuration
• PoE input port: 1 × 10M/100M/1G/2.5G/5G/10G BASE-T RJ45 (802.3bt Type 4 PD)
• Data output port: 1 × 10M/100M/1G/2.5G/5G/10G BASE-T RJ45
• DC output: 4-pin removable terminal block (dual power output)
• DIP switch: 12V / 19V / 24V DC output selection
• PoE input: 48-54V DC (802.3bt Type 4 or 802.3at 4-pair)
• Power output: 12V DC (6.8A max), 19V DC (4.3A max), 24V DC (3.3A max) – up to 70W
• Dimensions: 32 × 87 × 135 mm; weight: 433g
Key Features
Multi-gigabit PoE++ splitter enabling 10M–10G pass-through while extracting power for non-PoE equipment. Supports selectable DC outputs (12V / 19V / 24V) via DIP switch for flexible device compatibility. Dual DC output allows powering two separate devices simultaneously (e.g., camera + accessory). Designed to convert 802.3bt PoE++ input into usable DC power for legacy or industrial devices. Compact IP30 housing with DIN-rail or wall-mount installation options for flexible deployment.
Technical Context
Used to extend PoE infrastructure to devices without native PoE support by separating data and power streams. Enables centralized PoE power sourcing while supporting mixed-voltage equipment in remote locations. Suitable for hybrid systems combining modern PoE switches with legacy industrial or security hardware. Power sharing architecture dynamically distributes up to 70W across connected devices based on load. Maintains high-speed connectivity for bandwidth-intensive applications without limiting Ethernet performance.
Installation Notes
IP30 metal enclosure: 32 × 87 × 135 mm, 433g. Input: 802.3bt PoE++ (48–54V DC). Output: selectable 12V/19V/24V via DIP switch with dual terminal DC outputs. Operating range: -40°C to 75°C, humidity 5–95% non-condensing. Mounting: DIN-rail or wall. Includes ESD/EFT protection (4KV) and LED status indicators for power and voltage selection. Designed for short-range deployment within 80–100m, depending on cable type and speed.
| Hardware Specifications | |
|---|---|
| Interface | PoE Input Port： 1 10M/100M/1G/2.5G/5G/10G BASE-T RJ45 Data Output Port： 1 10M/100M/1G/2.5G/5G/10G BASE -T RJ45 DC Out Plug Connector： 1 removable 4-pin terminal block DIP Switch： 12V/19V/24V DC output |
| LED Indicators | PoE Input: 30W (Green), 60W (Green), 90W (Green) DC Voltage: 12V (Green), 19V (Green), 24V (Green) |
| Data Rate | 10M/100M/1G/2.5G/5G/10Gbps |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 433g |
| Installation | DIN-rail/wall mountable |
| ESD Protection | 4KV |
| EFT Protection | 4KV |
| Enclosure | IP30 metal case |
| Power Requirements | 4-pair 802.3at PoE+ and 802.3bt PoE++ PoE DC 48 ~ 54V |
| Power Consumption | System on with PoE input 5.5 watts Full loading with maximum 12V DC, 6.8A output 75.45 watts |
| Power Output | 802.3 bt type 4 PoE++ input 12V DC, 6.8A (max.) 19V DC, 4.3A (max.) 24V DC, 3.3A (max.) |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5G: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5G: 4-pair UTP Cat 6/Cat 6A/Cat 7 10G:4-pair UTP Cat 6A/Cat 7 |
| Power over Ethernet | |
| PoE Standard | 802.3 bt PoE++ 4-pair 802.3at PoE+ |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-span + Mid-span End-span Mid-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-) |
| Remote Power Distance | 1G/2.5G speed: 100M (max.) 5G/10G speed: 80M (max.)(cat6A/cat7) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G/10GBASE-T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet (Type 4) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | -40~ 75 degrees C |
| Storage Temperature | -40~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
