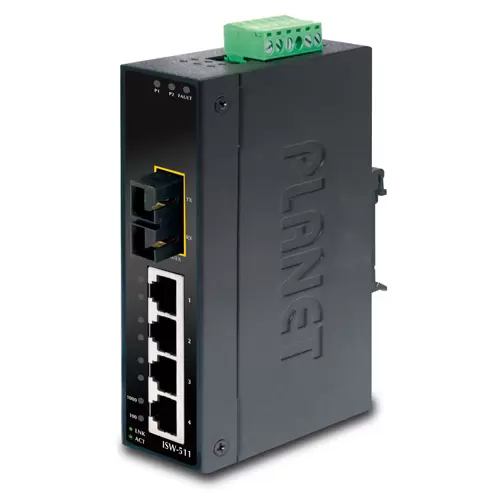

Planet - ISW-511S15 - Slim Type 4-Port Industrial Ethernet Switch + 1-Port 100Base-FX
Product Overview
The Planet ISW-511S15 is an industrial unmanaged Fast Ethernet switch featuring 4 × 10/100BASE-TX copper ports and 1 × 100BASE-FX single-mode fiber port with SC connector, supporting fiber links up to 15km at 1310nm.
Key Configuration
• Copper ports: 4 × 10/100BASE-TX RJ45 (auto-negotiation, auto-MDI/MDI-X)
• Fiber port: 1 × SC single-mode, 1310nm, 15km distance
• Launch power: max -7dBm, min -20dBm; receive sensitivity: -28dBm; max input: -8dBm
• Switch fabric: 1Gbps; throughput: 0.74 Mpps; MAC table: 2K
• Dimensions: 135 × 97 × 32 mm; weight: 436g
Key Features
Designed for industrial fiber deployments up to 15km, the ISW-511S15 features redundant 12–48V DC power inputs with reverse-polarity protection and alarm relay output for power failure notification. Housed in a compact IP30 metal enclosure with DIN-rail or wall-mount options, it supports store-and-forward switching with IEEE 802.3x flow control, operates from -10°C to 60°C, and is UL/cUL, FCC, CE, and TAA compliant for industrial environments.
| Hardware Specifications | |
| Copper | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-XCable 10Base-T : 2-pair UTP Cat. 3, 4, 5cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5cable (100meters, max.) |
| Optical | Port
Frequency Launch Power Receive Sensitivity Max. Input Power |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 436g |
| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption / Dissipation | 9.1 watts / 31BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switch Specification | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Switch Fabric | 1Gbps |
| Throughput | 0.74Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Full-duplex flow control |
| Temperature | Operating: -10~60 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90%, Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Safety | UL, cUL |
| Stability Testing | IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration) |
