Planet - IFT-802TS15 - IP30 Slim type Industrial Fast Ethernet Media Converter SC SM-15KM (-40 to 75 degree C)

Product Overview

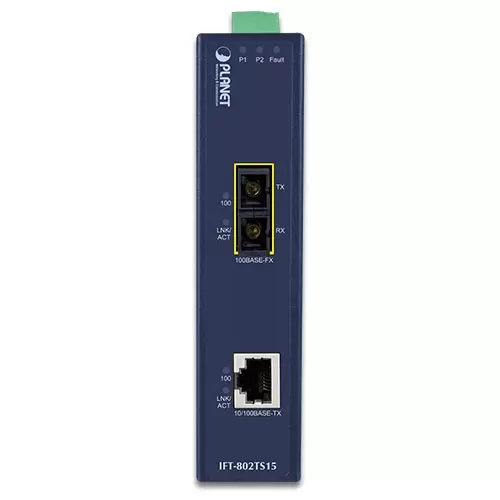

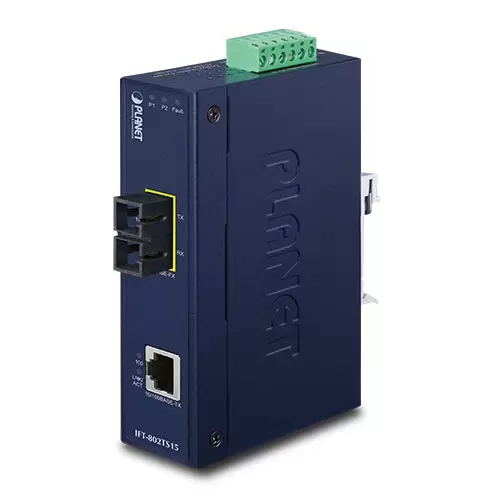

The Planet IFT-802TS15 is an industrial IP30 slim media converter that converts 10/100BASE-TX copper to 100BASE-FX fiber over a single-mode SC connection, supporting distances up to 15 km at 1310 nm. It features a rugged metal enclosure with DIN-rail or wall mounting options, redundant 12–48V DC power input, and a wide operating temperature range (-40°C to 75°C) for harsh environments.

Key Configuration

• • Copper port: 1 × 10/100BASE-TX RJ45 (auto-MDI/MDI-X)
• • Fiber port: 1 × SC single-mode connector (100BASE-FX)
• • Wavelength: 1310nm; distance: 15km
• • Launch power: -20 to 0 dBm; receive sensitivity: -32 dBm; max input power: 0 dBm

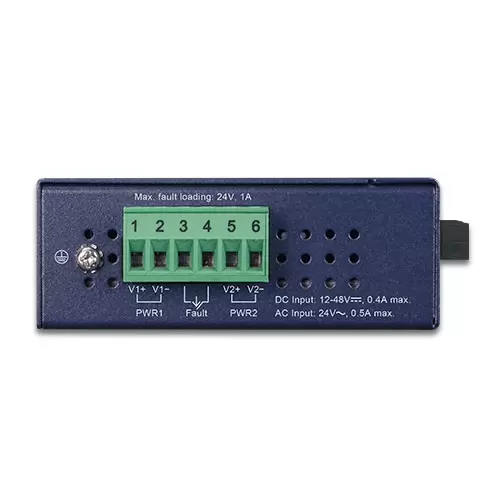

• • Power input: Redundant 12-48V DC with reverse polarity protection
• • Dimensions: 135 × 85 × 32 mm; weight: 430g

Key Features

Converts 10/100BASE-TX to 100BASE-FX with store-and-forward architecture, supporting up to 15 km over single-mode fiber (9/125 μm). It features an IP30 slim metal housing designed for industrial use with DIN-rail or wall mounting options. Includes redundant 12–48V DC power inputs with reverse polarity protection, 6KV ESD/surge protection, and low 3W power consumption. Supports IEEE 802.3x flow control, 1522-byte frames, and provides full LED status indicators for power, fiber, and copper links. Certified to FCC Class A, CE, and TAA standards with industrial stability testing.

Technical Context

The IFT-802TS15 is an industrial media converter that extends Ethernet beyond 100 m using single-mode fiber, supporting long-distance links up to 15 km. It is built for harsh environments and enables integration of copper-based devices into fiber networks. It features redundant 12–48V DC power inputs for reliability, an IP30 slim housing for DIN-rail space saving, and stable operation for industrial and outdoor applications.

Installation Notes

Compact industrial media converter (135 × 85 × 32 mm, 430 g) operating in extreme temperatures from -40°C to 75°C with redundant 12–48V DC power input and 3W max consumption. Supports 100BASE-FX full-duplex fiber over single-mode 9/125 μm up to 15 km and 10/100 copper over Cat. 3–5 up to 100 m via SC connectors. Includes 6KV ESD and surge protection, LED status indicators. Certified to FCC Class A and CE standards for industrial use.
