Planet - IGTP-825AT - IP67-rated Industrial 1000BASE-X SFP to 10/100/1000T 802.3at PoE+ Media Converter (24~56V power boost, -40~75 degrees C)
Product Overview

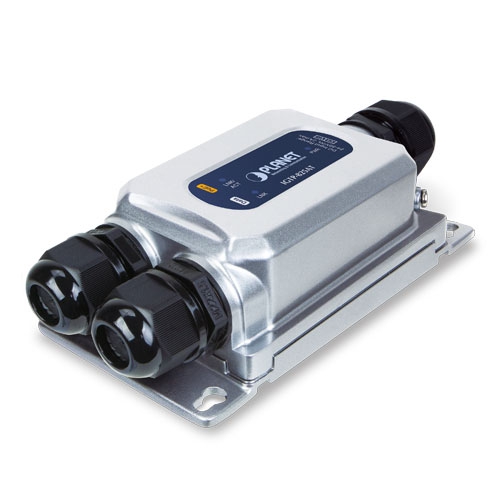

The Planet IGTP-825AT is an IP67-rated industrial Gigabit PoE+ media converter featuring one 1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port (End-span, pins 1/2+,3/6-). Delivers up to 30W at 55V DC over Cat5e/6 cabling, supports 24-56V DC input with power boost, operates from -40°C to 75°C, and includes IK10 impact protection and 3 waterproof cable glands in an IP67 aluminum case.
Key Configuration
- • Fiber port: 1 × 1000BASE-X SFP slot (SFP module required, sold separately)
- • Copper port: 1 × 10/100/1000BASE-T RJ45 with 802.3at PoE+ output (End-span, pins 1/2+,3/6-)
- • Power input: 24-56V DC via 2-pin terminal block (Pin 1: V+, Pin 2: V-)
- • PoE output: 55V DC, max 30W (802.3at) / 15.4W (802.3af backward compatible)
- • Power consumption (full load): 43.2W @24V, 41.7W @36V, 41.5W @54V
- • Dimensions: 150 × 43.8 × 72.94 mm (169.85mm with cable glands); weight: 389g
Key Features

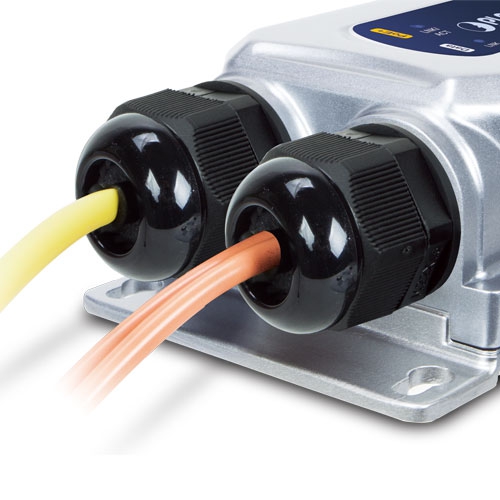

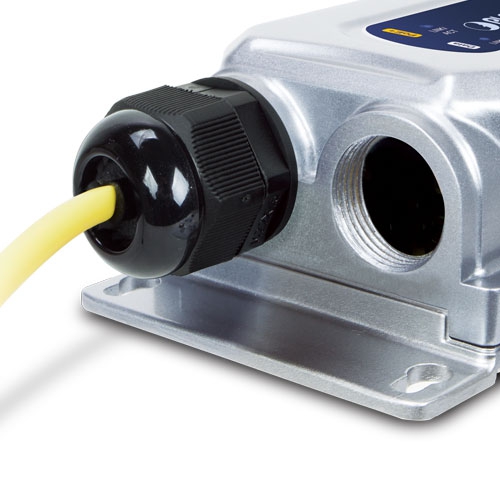

Rugged IP67 outdoor PoE+ fiber switch with IK10 impact resistance for harsh environments. Supports PoE+ output up to 30W for IP cameras, wireless APs, and industrial IoT devices. A wide 24–56V DC input range enables flexible power from industrial systems, solar, or battery setups. Includes waterproof cable glands and SFP fiber uplink support for long-distance network extension up to 120km.
Technical Context
The IGTP-825AT is designed for outdoor fiber-to-Ethernet PoE deployment, combining fiber backbone connectivity with local PoE device powering. Its IP67 enclosure ensures protection against dust and water immersion, while the IK10 rating adds resistance to physical impact. Fiber connectivity via SFP modules enables scalable long-distance links for surveillance and remote industrial sites, while PoE+ supports modern high-power endpoints.
Installation Notes

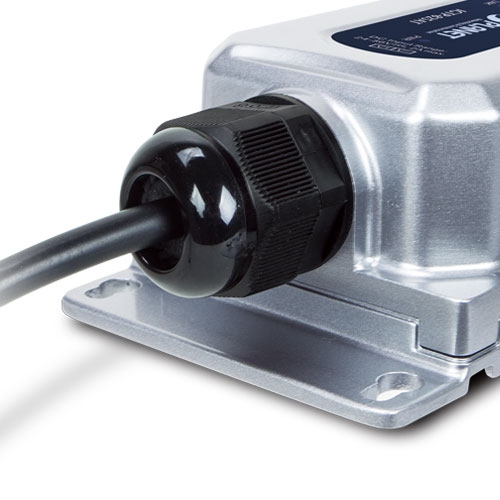

Wall-mount aluminum housing with dimensions 150 × 43.8 × 72.94 mm (without glands) and a weight approx. 389g. Operates in extreme temperatures from -40°C to 75°C. Powered via 24–56V DC terminal input with included waterproof RJ45 glands for outdoor sealing. Supports Cat5e/6 copper up to 100m and hot-swappable SFP modules for fiber expansion. LED indicators show power, copper, and fiber link status.
| Hardware Specifications | |||

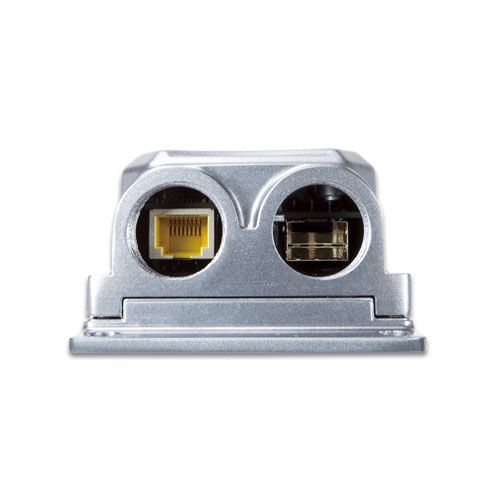

| Input Port (SFP Slot) | 1 x 1000BASE-SX/LX/BX “Data”in SFP port | ||
| Output Port | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE+ | ||
| “Data + DC” out RJ45 port | |||
| – Auto MDI/MDI-X, auto-negotiation RJ45 connector | |||

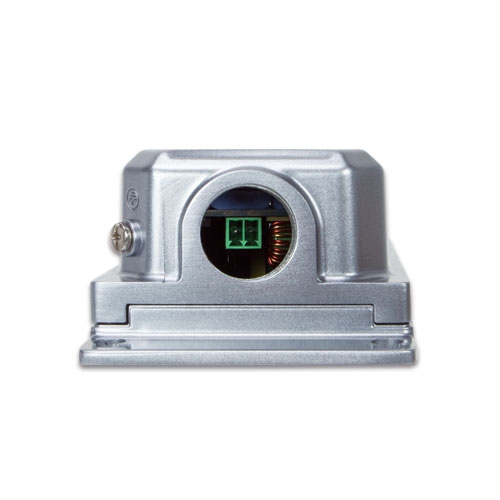

| Input Power Terminal Block | 1 x 2-pin terminal block | ||
| – Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) | |||
| Cables | 10BASE-T: UTP category 3, 5 cable (≤100m) | ||
| 100BASE-TX: UTP category 5,5e cable (≤100m) | |||
| 1000BASE-T: UTP category 5e,6 cable(≤100m) | |||
| 1000BASE-SX/LX: | |||
| – Multi-mode: 50/125μm or 62.5/125μm optical fiber | |||
| – Single-mode: 9/125μm optical fiber | |||

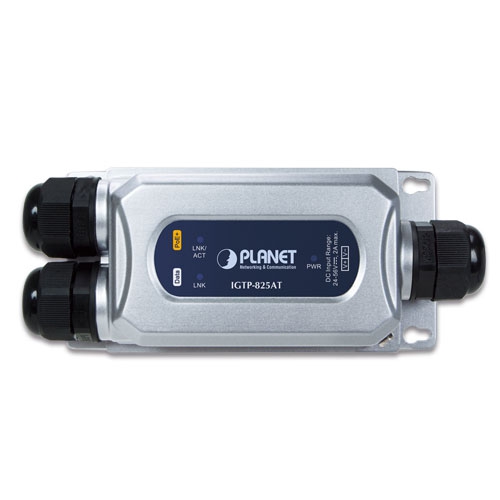

| LED | PWR (Green) | ||
| TP 10/100/1000BASE-T: LNK/ACT (Green) | |||
| Fiber 1000BASE-X: LNK (Green) | |||
| Input Voltage | 24~56V DC | ||
| Power Consumption | Voltage | System on | Full Load (Max.) |
| DC 24V | 1.2W | 43.2W | |
| DC 36V | 1.44W | 41.7W | |
| DC 54V | 1.62W | 41.5W | |
| ESD Protection | Air 8KV DC | ||
| Contact 6KV DC | |||
| Surge Protection | 6KV | ||
| Enclosure | IP67-rated and IK10 aluminum metal case | ||
| Installation | Wall-mount ear | ||
| Dimensions (W x D x H) | 150 x 43.8 x 72.94 mm | ||
| 169.85 x 43.8 x 72.94 mm, with cable gland | |||
| Weight | 389g | ||
| MTBF | >100000 hours | ||
| Power Over Ethernet | |||
| PoE Standard | IEEE 802.3at Power over Ethernet Plus / End-span PSE | ||
| Backward compatible with IEEE 802.3af Power over Ethernet | |||
| PoE Power Output | 55V DC, max. 30 watts | ||
| PoE Power Supply Type | End-span | ||
| Power Pin Assignment | 1/2(+), 3/6(-) | ||
| PoE Power Budget | 30 watts (max.) @ IEEE 802.3at PoE+ input | ||
| Standards Conformance | |||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||
| Protocols and Standards Compliance | IEEE 802.3 Ethernet | ||
| IEEE 802.3u Fast Ethernet | |||
| IEEE 802.3ab Gigabit Ethernet | |||
| IEEE 802.3z Gigabit Ethernet over Fiber Optic | |||
| IEEE 802.3x Flow Control | |||
| IEEE 802.3af Power over Ethernet | |||
| IEEE 802.3at Power over Ethernet Plus | |||
| Stability Testing | IEC60068-2-32 (free fall) | ||
| IEC60068-2-27 (shock) | |||
| IEC60068-2-6 (vibration) | |||
| Environment | |||
| Temperature | Operating: -40~75 degrees C | ||
| Storage: -40~85 degrees C | |||
| Humidity | Operating: 5~90% (non-condensing) | ||
| Storage: 5~90% (non-condensing) | |||
