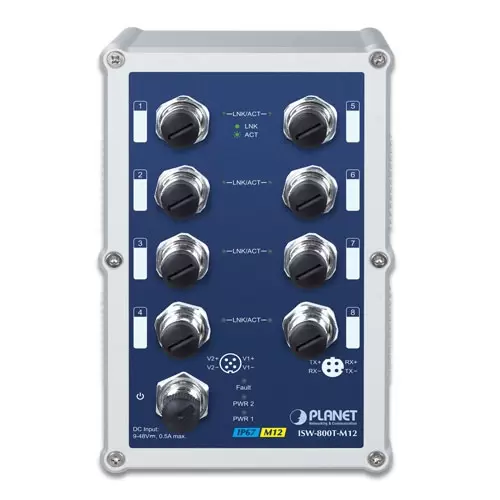

Planet - ISW-800T-M12 - IP67 rated 8-Port 10/100Mbps M12 Fast Ethernet Switch
Product Overview
The Planet ISW-800T-M12 is an IP67-rated industrial 8-port 10/100Mbps Fast Ethernet switch with M12 connectors (4-pin D-coded female) for reliable connectivity in harsh environments. Features unmanaged operation, 1.6Gbps switch fabric, 1.19 Mpps throughput, redundant 12-48V DC power input with M12 5-pin A-coded connector, wide -40°C to 75°C operating temperature, and IP67 aluminum enclosure.
Key Configuration
- • Ports: 8 × 10/100BASE-TX M12 (4-pin D-coded female connector)
- • Power connector: 1 × M12 (5-pin A-coded male connector)
- • Power input: Redundant 12-48V DC with polarity reverse protection
- • Switch fabric: 1.6 Gbps; throughput: 1.19 Mpps @ 64 bytes
- • MAC address table: 2K entries; MTU: 1536 bytes
- • Dimensions: 163 × 103 × 53 mm; weight: 976g
Key Features
Rugged IP67 industrial Ethernet switch with M12 connectors for vibration-proof data and power connections. Dual redundant 12–48V DC power inputs with reverse polarity protection for high reliability. Unmanaged plug-and-play operation with store-and-forward switching and IEEE 802.3x flow control. Built-in 6KV ESD/EFT protection for electrical noise resistance. Designed for transportation, factory automation, and harsh field deployments.
Technical Context
Uses M12 D-coded connectors for Ethernet and A-coded for power, ensuring sealed industrial-grade connectivity where RJ45 is unsuitable. IP67 enclosure protects against dust and water immersion. Supports auto-negotiation and auto-MDI/MDI-X on all ports. Redundant power architecture maintains operation if one supply fails. Suitable for trains, factories, and outdoor cabinets exposed to vibration, moisture, and electrical interference.
Installation Notes
Metal industrial switch: 163 × 103 × 53 mm, 976g. Supports 12–48V DC via M12 5-pin power input with reverse polarity protection. Ethernet via M12 D-coded ports for rugged connections. Operating range: -40°C to 75°C, 5–95% humidity. Power use ~4W max. Includes DIN-rail/wall-mount kit and 1.2m M12 cables. LEDs show power and link status.
| Hardware Specifications | |
| 10/100Base-TX Ports | 8 x M12, 4-pin D-coded female connector |
| Power Connector | 1 x M12, 5-pin A-Coded male connector |
| Enclosure | IP67 aluminum |
| Dimensions (W x D x H) | 163 x 103 x 53 mm |
| Weight | 976g |
| Power Requirements | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption / Dissipation | 4 watts / 13 BTU |
| Installation | DIN rail kit and wall mount ear |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| LED Indicators | Power LED: Power 1 / Power 2 / FAULT (Green) 10/100Base-TX Port (Port-1 to Port-8): LNK/ACT (Green) |
| Network Cables | 10Base-T: 2-Pair UTP Cat.3,4,5 up to 100m (328ft) 100Base-TX: 2-Pair UTP Cat.5, 5e, 6 up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, max.) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps@64Bytes |
| Maximum Transmit Unit | 1536 bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x full-duplex flow control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
| Standard Accessories | |
| Packet Contents | 1 x M12 4-pin D-coded male connector to RJ-45 Ethernet cable, 1.2m 1 x M12 5-pin A-coded female connector power cable, 1.2m 1 x wall-mount kit 1 x DIN-rail kit (attached to M12 switch as default) 1 x user manual |
